Koehler K71000 Automatic Pensky-Martens Closed-Cup Flash Point Tester

Koehler K71000 Automatic Pensky-Martens Closed-Cup Flash Point Tester

orCall 1-514-464-6144

Description

The Koehler K71000 automatic Pensky-Martens closed-cup flash point tester is designed for flash point determination of biodiesel, distillate fuels, new lubricating oils, residual fuel oils, cutback residuals, used lubricating oils, mixtures of petroleum liquids with solids and petroleum liquids that tend to form a surface film during testing.

The K71000 model conforms to ASTM D93 Procedure A, B and C; IP 34; ISO 2719; DIN EN 22719; JIS K2265; NF M 07-019

Key features and specifications:

  • Flash point detection by thermocouple and ionization ring
  • Electric or gas ignition: Software selectable, user-friendly manual switching
  • Flash point temperature range: ambient to 405°C
  • Heating rate: In accordance with ASTM D93 procedure A, B and C
  • Stirring rate: 0 to 300 rpm; ± 5 rpm
  • Cycle time: 5 minutes as per rapid fan cooling system
  • Ignition test frequency: User selectable on per method basis
  • Integrated dual fan system directly cools test cup and surrounding environment
  • 8.4" LCD touch screen interface makes for easy viewing and navigation
  • Automatic barometric pressure correction
  • Fire suppression system floods instrument with inert gas in the event of a fire
  • Communication: - LIMS Connectivity via Ethernet and RS 232 ports - Two (2) USB ports (1 - Front 2 - Back)
  • Security: Three (3) level password protection
  • Temperature Calibration - 3 types available:

(a) 2-Point sample temperature

(b) Multipoint (>2) temperature calibration

(c) CRM calibration - Built-in software function to automatically correct as per CRM tested

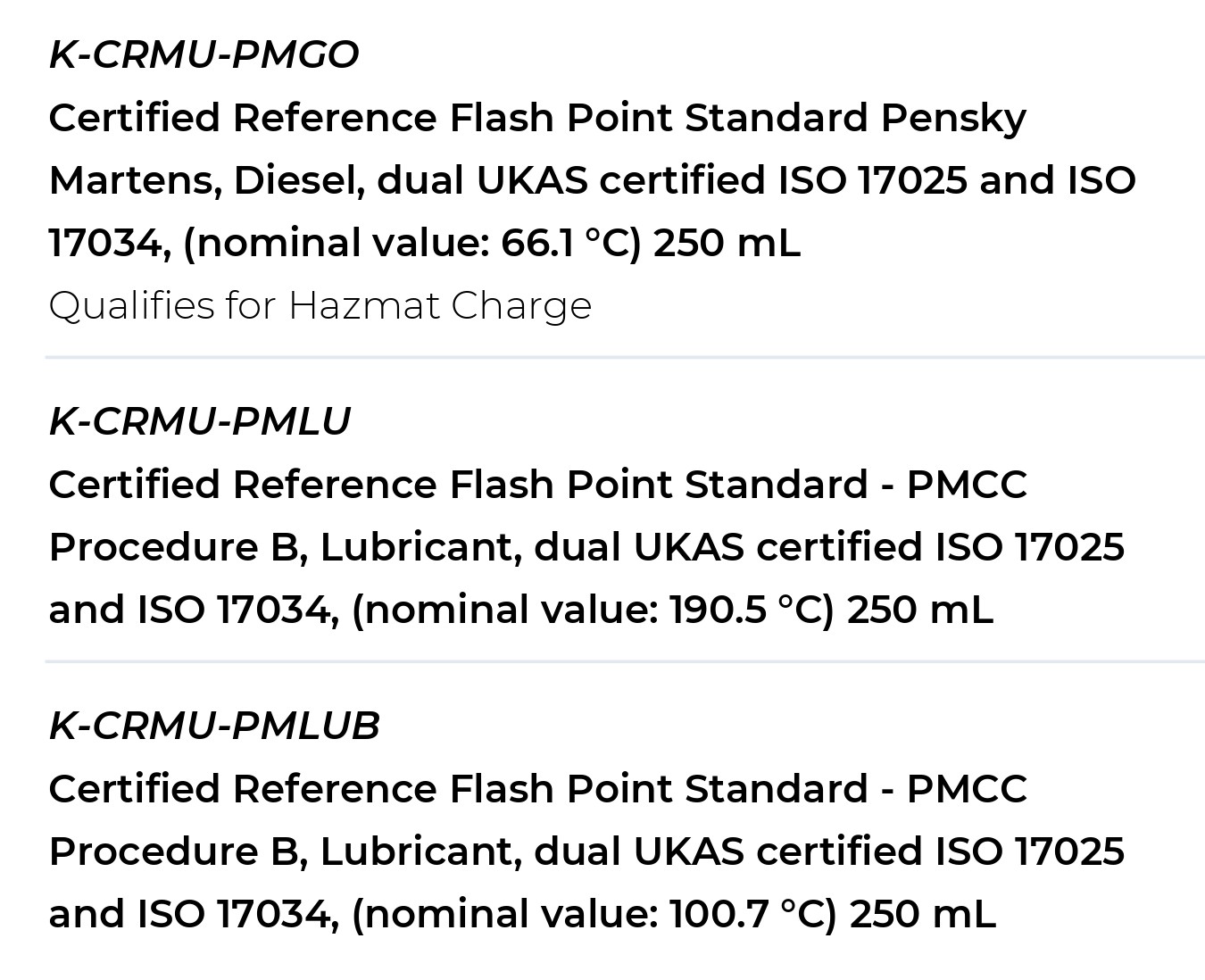

NOTE: Temperature calibration kit with PT100 probe simulator (K71000-CAL) and certified reference flash point standards are available at additional cost - please inquire for pricing.


** Installation and training provided by the manufacturer is available at extra cost - please inquire for pricing.


** SEE LINK TO BROCHURE FOR MORE INFORMATION

Specifications

ManufacturerKoehler Instruments
ModelPensky-Martens
ConditionNew
MPNK71000
Condition DescriptionBRAND NEW - 1 YEAR MANUFACTURER'S WARRANTY
Electrical Requirements110-240V, 50/60hZ
Electrical Certification / ApprovalUL
Dimensions11"W x 17.5"D x 26"H
Weight (lbs)60
Country/region of manufactureUnited States
