Hanna HI 2020 (edge pH kit) Digital, Portable pH Meter

Hanna HI 2020 (edge pH kit) Digital, Portable pH Meter

orCall 1-514-464-6144

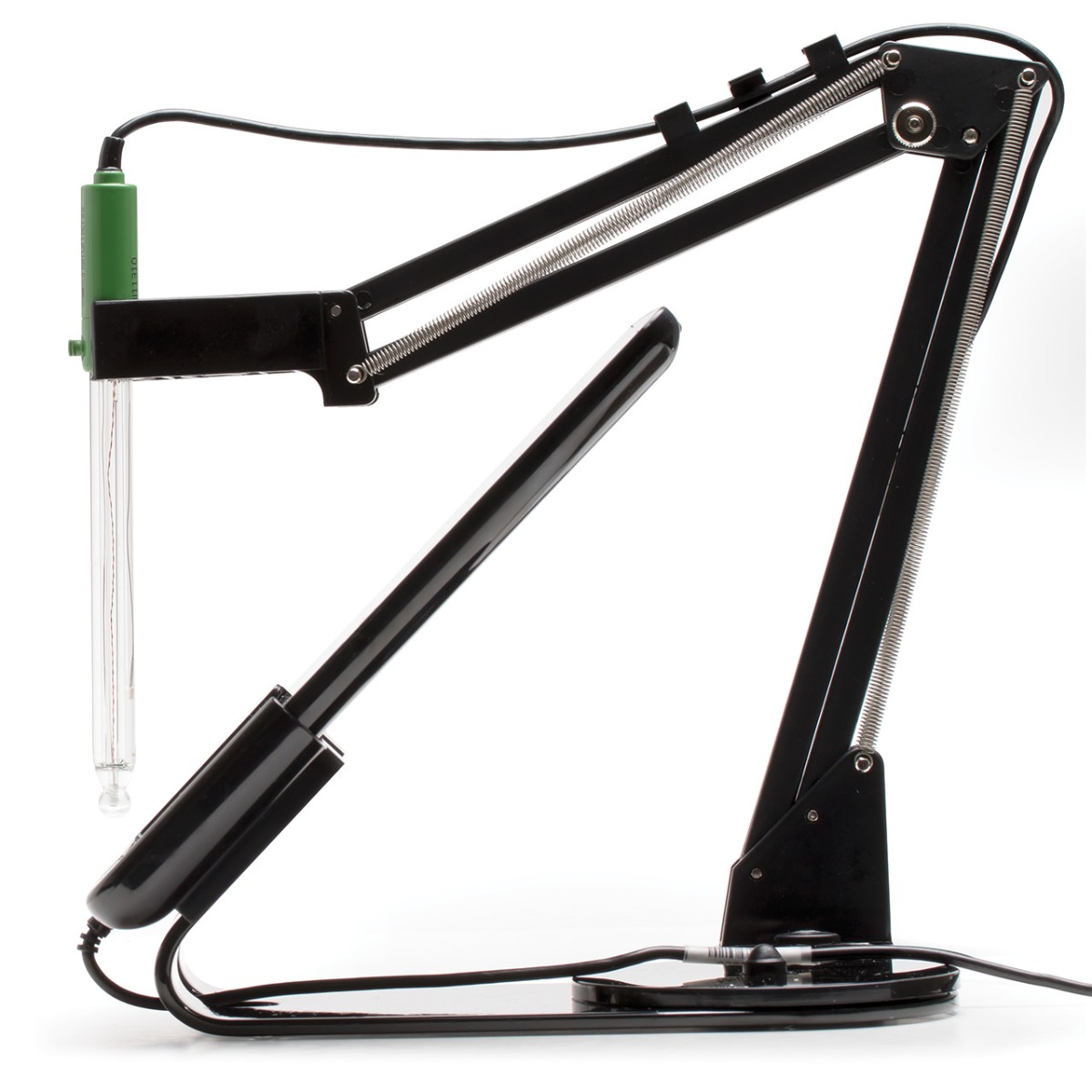

The Hanna HI 2020 edge is thin and lightweight, measuring just ½" thick and weighing less than 9 ounces. This makes it easily portable, yet includes a cradle to accommodate it for bench-top work. edge has an incredibly wide viewing angle, 5.5" LCD and a sensitive capacitive touch keypad edge measures pH, conductivity or dissolved oxygen through its unique digital electrodes (conductivity and dissolved oxygen versions are additional cost - please inquire for pricing). These digital electrodes are auto-recognized. Providing sensor type, calibration data and a serial number, and they connect to edge with an easy to plug-in 3.5mm connector. edge's versatile design is equally at home in your hand, on a lab bench or mounted on a wall. edge simplifies measurement, configuration, calibration, diagnostics, logging and transferring data to a computer or a USB drive.

The edge features Hanna's exclusive CAL-CHECK to warn you if the electrode you are using is not clean or if your buffers are contaminated during calibration. We have also added to CAL-CHECK for sensors with matching pin: now it warns you if the pH bulb is cracked, and if the junction of the electrode is compromised.

The electrodes used with edge are nearly as advanced as the edge itself: featuring a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by edge once the electrode is plugged in.

Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.

These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pin settings.

Logging: stores up to 1000 records: 200 records (log-on-demand and stability logging); 600 records interval logging

Connectivity: 1 USB port for storage; 1 micro USB port for charging and PC connectivity

pH Electrode (included): HI 11310 glass body pH electrode with 1/8"(3.5mm) connector and 1 m (3.3') cable


Range: standard mode: -2.00 to 16.00 pH, -2.000 to 16.000 pH; ±1000 mV; basic mode: -2.00 to 16.00 pH; ±1000.0 mV

Resolution: standard mode: 0.01 pH; 0.001 pH; basic mode: 0.1 mV

Accuracy (@25ºC/77ºF): ±0.01 pH; ±0.002 pH; ±0.2 mV

Calibration Points: 5 in standard mode; 3 in basic mode

Calibration Buffers: standard mode: 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 and two custom buffers basic mode: 4.01, 6.86, 7.01, 9.18, 10.01

Temperature Compensation: ATC (-5.0 to 100.0ºC; 23.0 to 212.0°F)*

Electrode Diagnostics: standard mode: probe condition, response time and out of calibration range, glass and reference junction diagnostics (HI11311 & HI12301 only)


Range: -20.0 to 120.0°C; -4.0 to 248.0°F

Resolution: 0.1°C; 0.1°F

Accuracy: ±0.2°C; ±0.4°F

The edge pH kit (115V) includes: edge meter, HI 11310 pH electrode, bench cradle, wall cradle, electrode holder, USB cable, 5Vdc power adapter, solution starting pack and instruction manual.



ManufacturerHanna Instruments
ModelHI 2020 edge
Serial NumberN/A
MPNHI 2020-01
Electrical Requirements5 VDC adapter (included)
Electrical Certification / ApprovalCE
Dimensions8"W x 5.5"D x 1"H
Weight (lbs)2
Country/region of manufacturePortugal
