Enerpac PT142 Two-Speed Hand Pump with RC53 Hydraulic Cylinder (5 Ton)

Enerpac PT142 Two-Speed Hand Pump with RC53 Hydraulic Cylinder (5 Ton)

Available quantity:1

Description

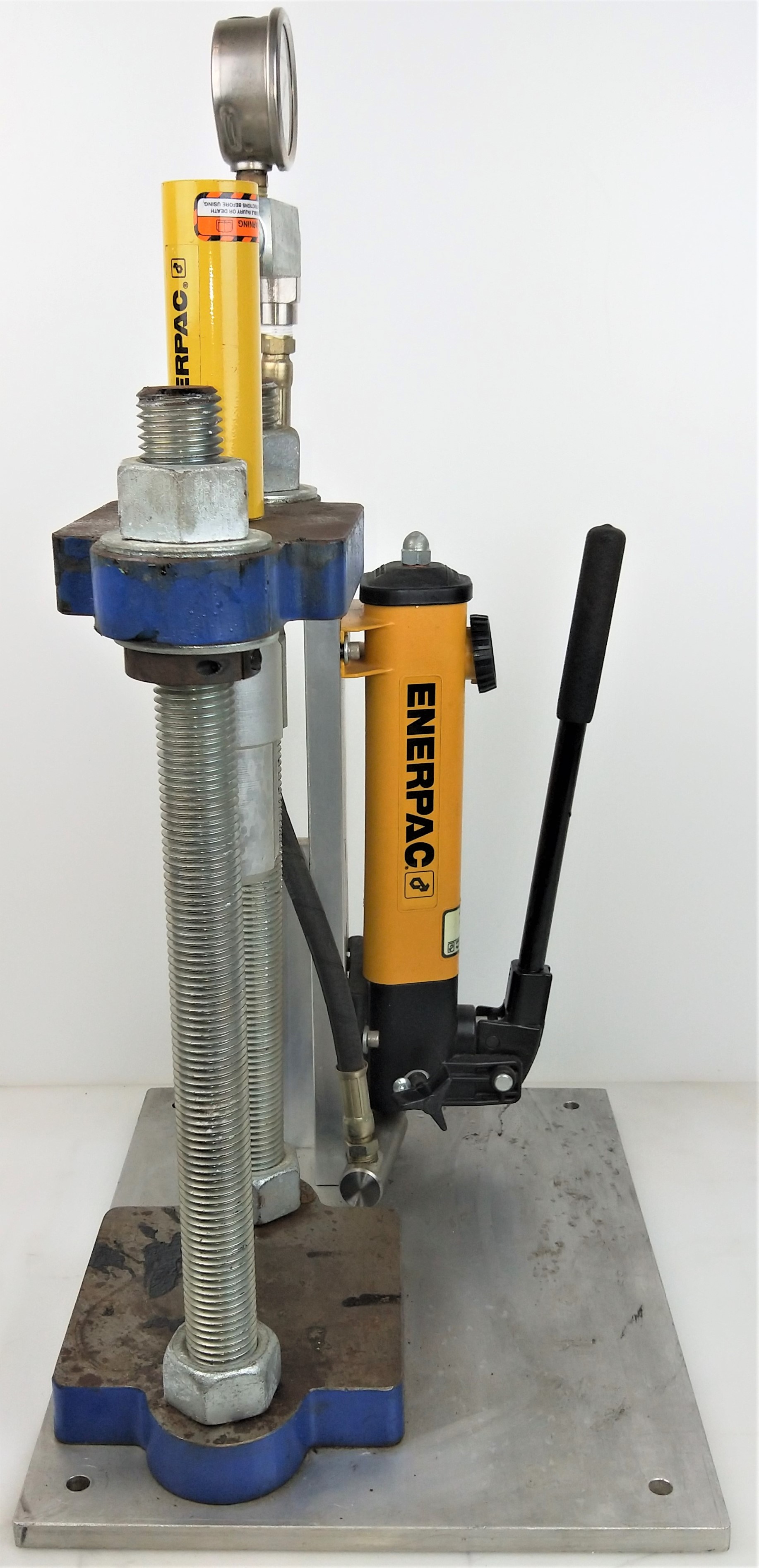

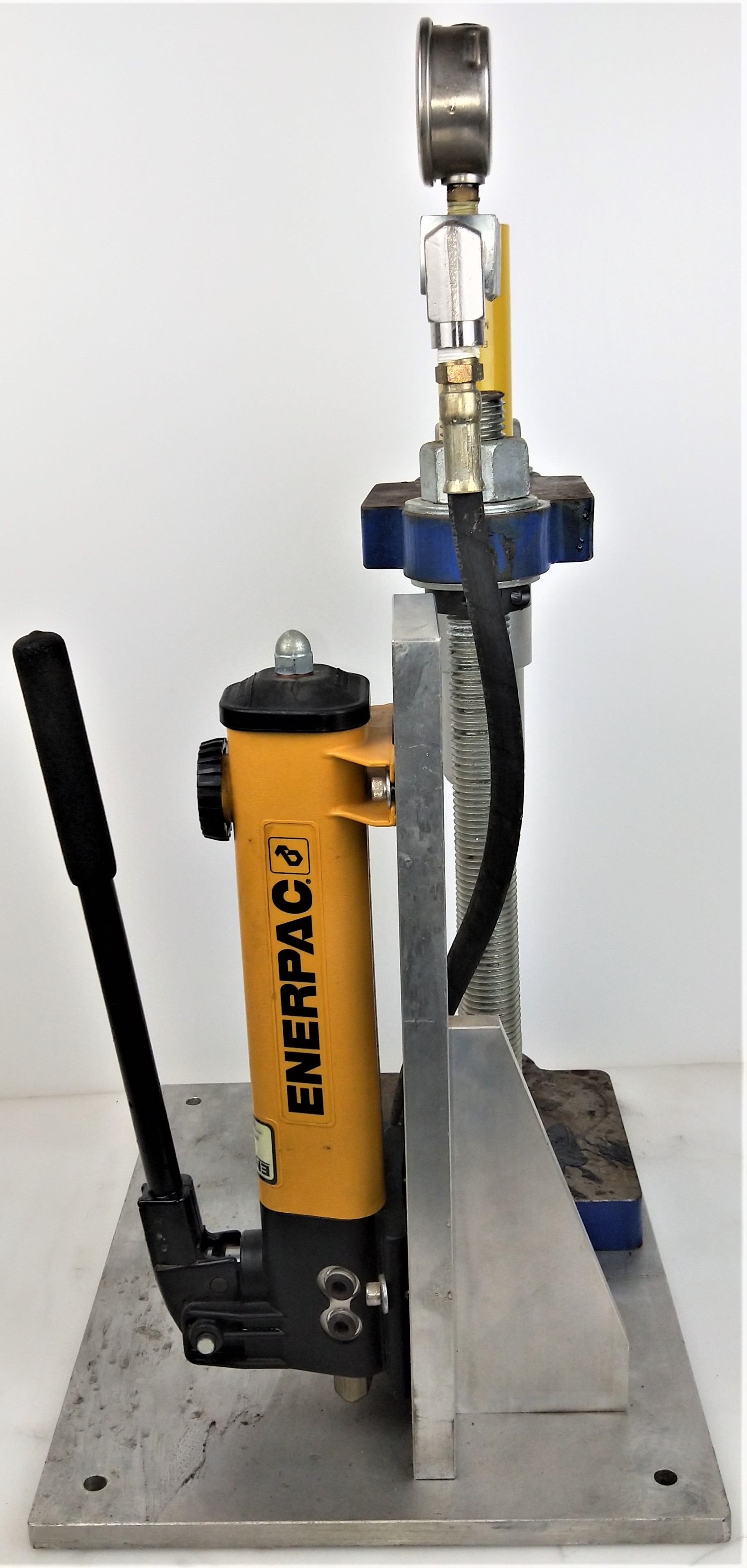

This Enerpac PT142 pump is in excellent condition and includes the RC53 hydraulic cylinder with 4.9 ton capacity and 3" (79mm) stroke. All components are mounted on the stand with the attached 10,000 psi pressure gauge - as seen in photos.

The Enerpac PT142 is a compact, high-pressure hydraulic system designed for precision lifting, pushing, and pressing operations. This commercial-grade setup combines a high-efficiency P142 two-speed lightweight hand pump with a durable RC53 single-acting hydraulic cylinder, all integrated onto a rugged, portable base plate. Equipped with a built-in heavy-duty pressure gauge, this fully self-contained kit delivers immediate 10,000 psi hydraulic capability wherever high force and absolute control are required.

Its two-speed pump design minimizes user fatigue by utilizing a high-flow, low-pressure stage for rapid tool advance, smoothly transitioning to the high-pressure stage once a load is engaged. Constructed with a lightweight nylon-covered aluminum reservoir and a fiberglass handle, the system offers exceptional corrosion resistance and job site portability.

Key Features:

Two-Speed Action: High-flow first stage reduces handle strokes by up to 78% during the initial advance phase.

Integrated Base Assembly: Mounted on a robust steel plate with a top handle for effortless single-handed transport.

Built-in System Diagnostics: Features an integrated calibrated pressure gauge to safely monitor operating pressures up to 10,000 psi.

Ergonomic Design: Low handle effort and an over-molded fiberglass grip maximize operator comfort during high-force cycles.

Technical Specifications:

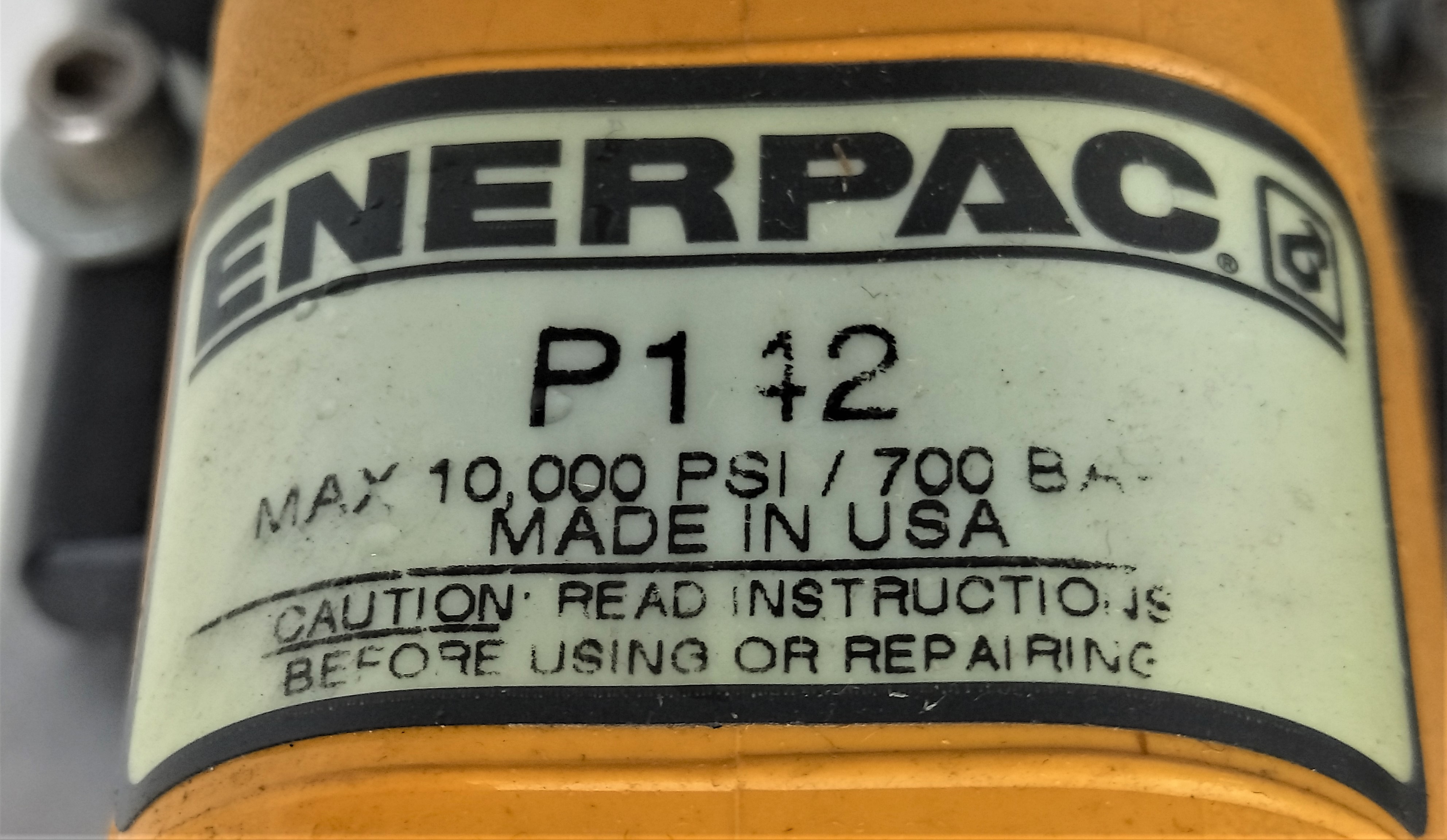

Hydraulic Pump (Enerpac P142):

Pump Type: Two-Speed, Manual

Maximum Operating Pressure (2nd Stage): 10,000 psi (700 bar)

First Stage Pressure Rating: 200 psi (13 bar)

Oil Displacement Per Stroke (1st Stage): 0.221 cu. in. (3.62 cm³)

Oil Displacement Per Stroke (2nd Stage): 0.055 cu. in. (0.90 cm³)

Usable Oil Capacity: 20 cu. in. (327 cm³)

Maximum Handle Effort: 78 lbs. (35.4 kg)

Oil Port Thread: 1/4" -18 NPTF

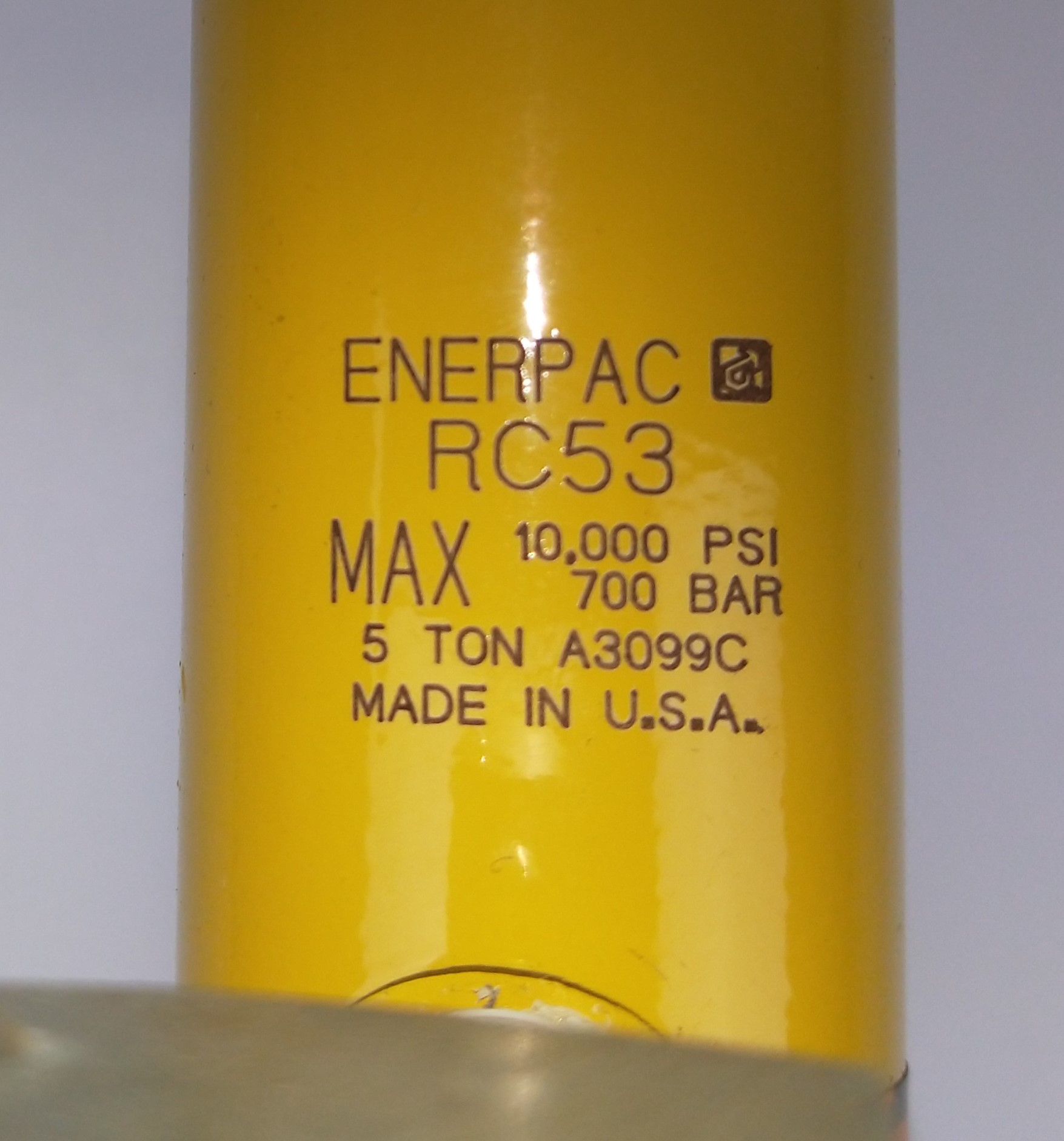

Hydraulic Cylinder (Enerpac RC53):

Cylinder Type: Single-Acting, General Purpose

Return Type: Heavy-duty spring return

Cylinder Capacity: 4.9 tons (44 kN)

Stroke Length: 3.13 inches (79 mm)

Effective Cylinder Area: 0.99 sq. in. (6.4 cm²)

Oil Capacity Requirement: 3.10 cu. in. (51 cm³)

Collapsed Height: 6.50 inches (165 mm)

Extended Height: 9.63 inches (244 mm)

Applications: Ideal for maintenance, manufacturing, assembly operations, laboratory testing, and field service jobs where portable, electricity-free high-force hydraulics are mandatory.


** SEE LINKS TO LITERATURE FOR MORE INFORMATION

Specifications

ManufacturerEnerpac
ModelP142 and RC53
ConditionUsed
Serial NumberA3099C
MPNDoes not apply
Condition DescriptionIN GOOD CONDITION
Dimensions16"W x 12"D x 26"H
Weight (lbs)70
Country/region of manufactureUnited States
Custom LabelBR12
