Plastec 25 Series Direct Drive Forward Curve Blower for Corrosive Environments

Plastec 25 Series Direct Drive Forward Curve Blower for Corrosive Environments

2,125 ** NOTE: Pricing is in US dollars - CAD price is subject to exchange rate at the time of ordering.

Available quantity: 1

orCall 1-514-464-6144

Description

The Plastec 25 series blower is a centrifugal fan designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion. Hindered-Amine Light Stabilizers (HALS) increase UV resistance. ** SEE LINK TO DATASHEET **

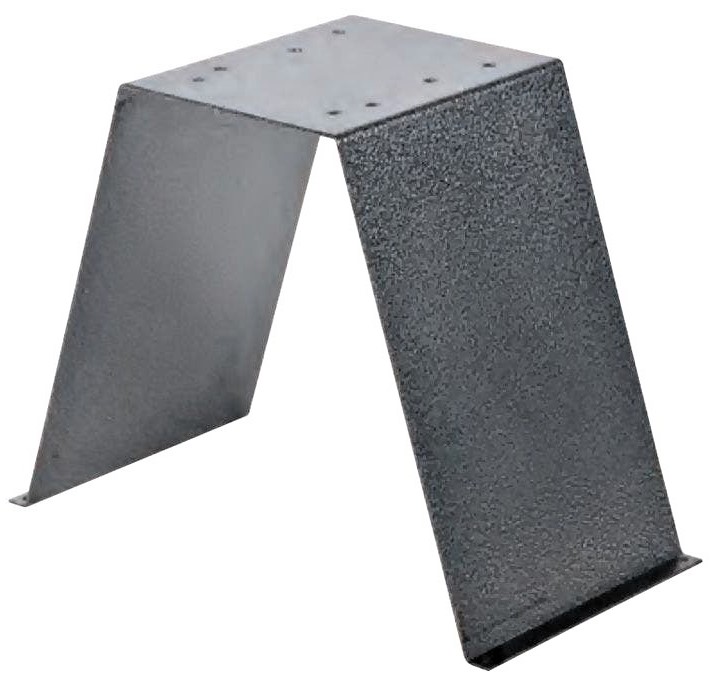

This Plastec series is ideal for most 5 to 6-foot fumehoods and includes a black enamel-coated metal motor support stand (MB251) for indoor installation with mounting hardware, a set of 4 vibration isolators, indoor/outdoor safety disconnect switch and a flexible PVC reducer/coupling 8" PVC to 8" PVC.

Details:

  • Direct drive forward curve
  • Wheel Diameter: 9.84"
  • Max CFM: 1400
  • Decibels: 58 dBA @ 5 Feet
  • 115/230 V 1-Phase 50/60 Hz
  • Motor HP: 0.75
  • Motor RPM: 1725
  • Motor Type: Standard Duty Single Phase, Capacitor Run
  • Motor Enclosure Totally Enclosed Fan Cooled


** DIFFERENT CONFIGURATIONS AND ACCESSORIES ARE AVAILABLE, DEPENDING ON YOUR REQUIREMENTS - PLEASE INQUIRE AND PROVIDE DETAILS FOR MORE INFORMATION AND PRICING.

For indoor installation, a stand would be required (included in this price).

For rooftop/outdoor installation, a polypropylene weather cap (ST08) is available.

Other accessories, such as a PVC duct reducer, baffles, coupling for attachment to the fan and an exhaust guard and other extras are available at an additional cost.

For explosion-proof model, a different weather hood will be required (WH4).

Specifications

ManufacturerPlastec Ventilation Inc
Model25 Series
ConditionNew
MPNP25ST4P075 and MB251
Condition Description2 YEAR MANUFACTURER'S WARRANTY ON FAN, 1 YEAR ON MOTOR
Electrical Requirements115/230V, 50/60hZ, 1 phase
Electrical Certification / ApprovalCSA
Weight (lbs)75
Country/region of manufactureUnited States
