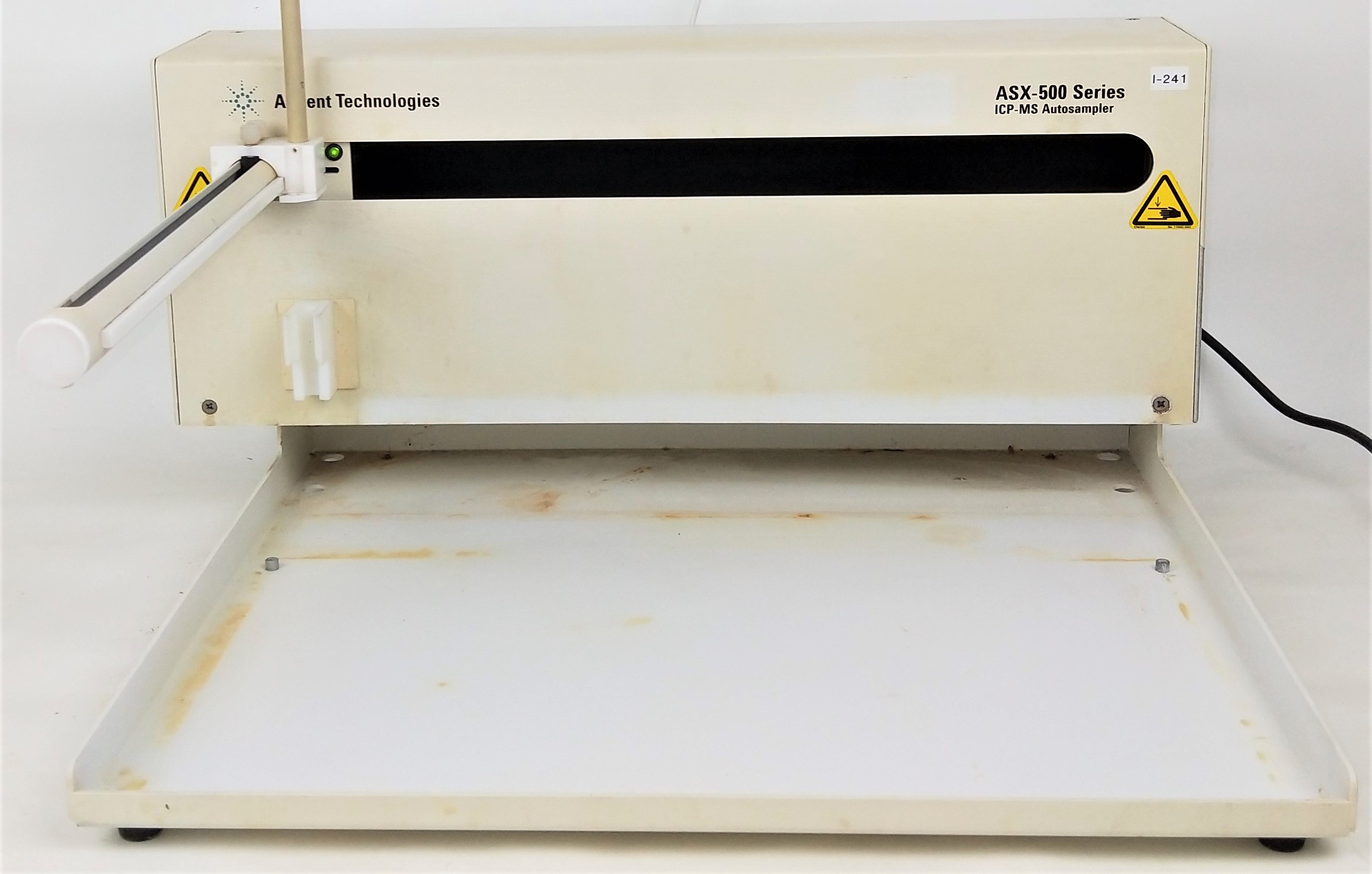

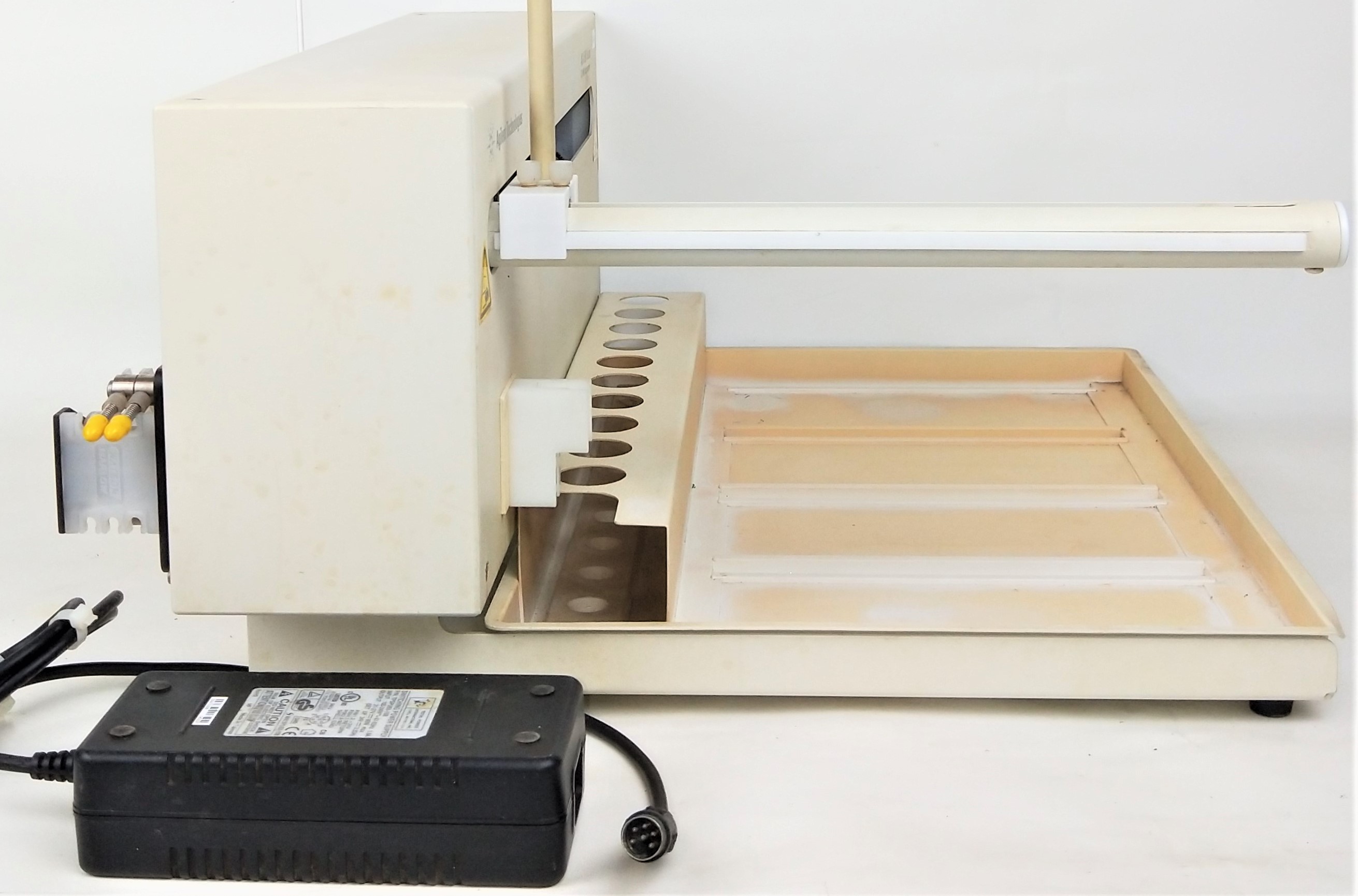

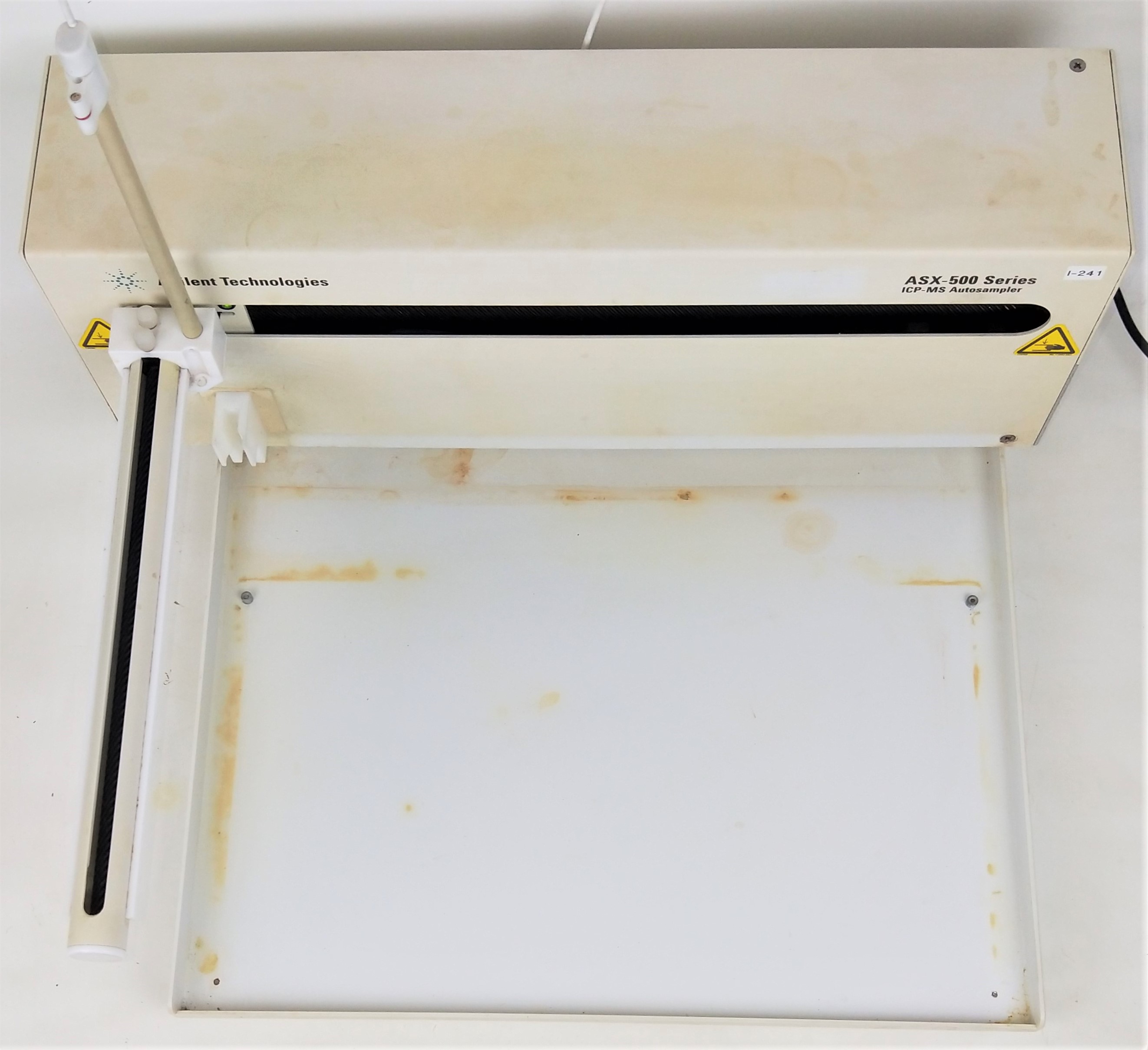

Agilent ASX-500 Series (G3286A) ICP-MS Autosampler

Agilent ASX-500 Series (G3286A) ICP-MS Autosampler

Available quantity:1

orCall 1-514-464-6144

Description

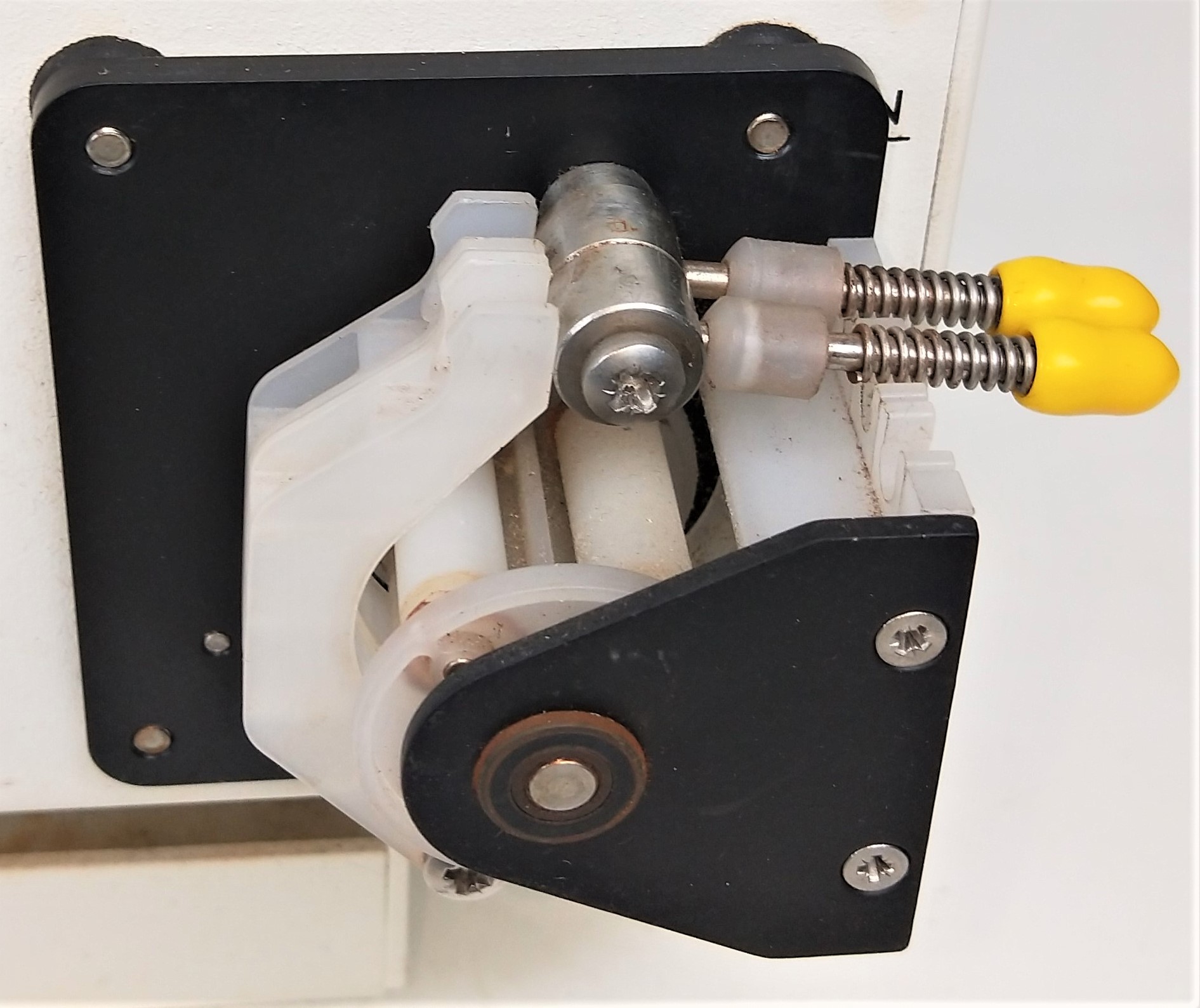

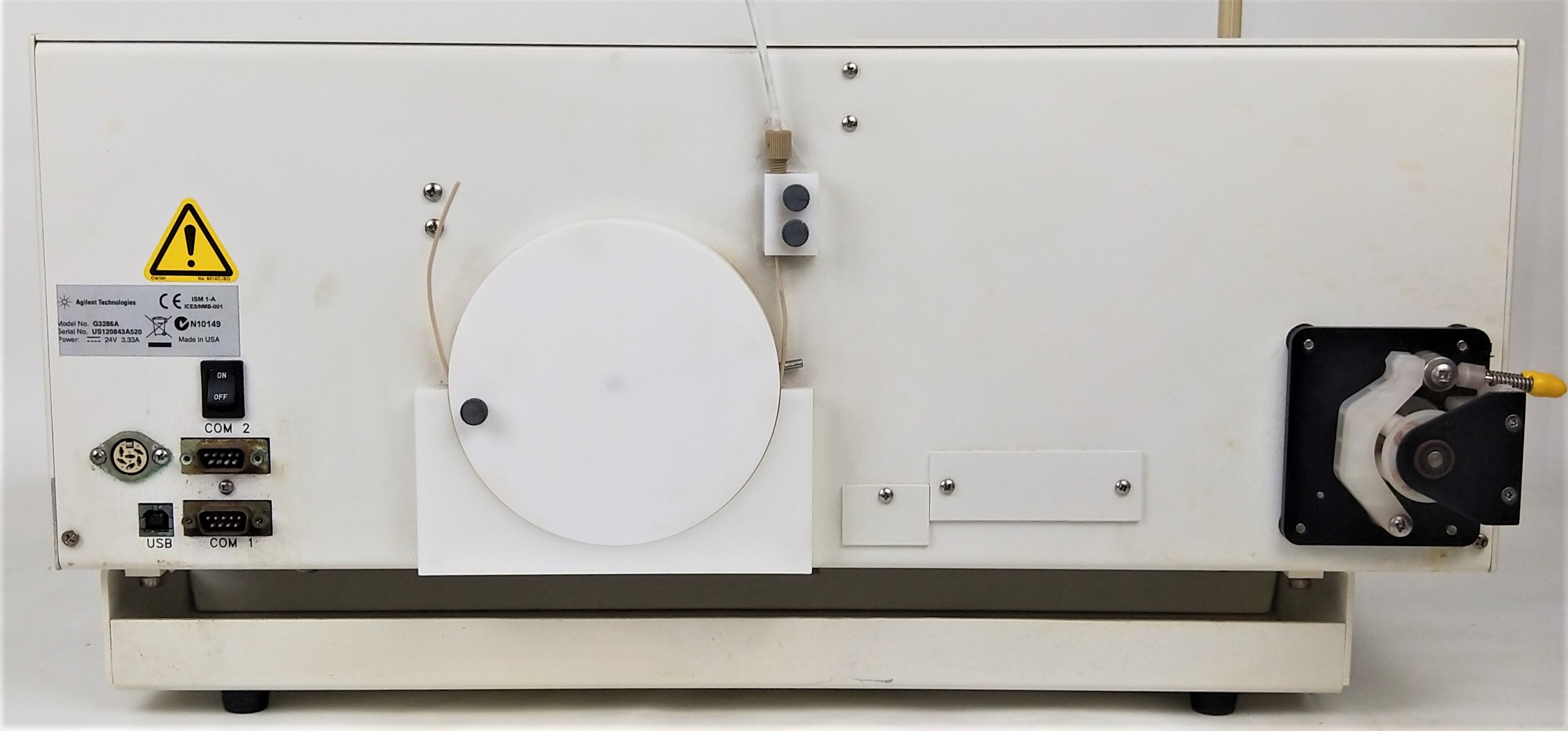

The ASX-500 Series autosampler is fully automated, making it ideal for medium to high sample throughout applications. It features a pumped rinse station and offers flexible rack configurations with a maximum capacity of 4 racks providing up to 360 vial positions with 5 x 250 mL bottle positions and bottles for rinse and tune solutions.

The ASX-500 can accommodate 90 position x 13 mm diameter tubes, 60 position x 16 mm diameter tubes, 40 position x 20 mm diameter tubes, 24 position x 25 mm diameter tubes and 21 position x 30 mm diameter tubes, depending on the racks being used. This unit includes three 90 x 13mm tube racks. SAMPLING PROBE IS NOT INCLUDED.

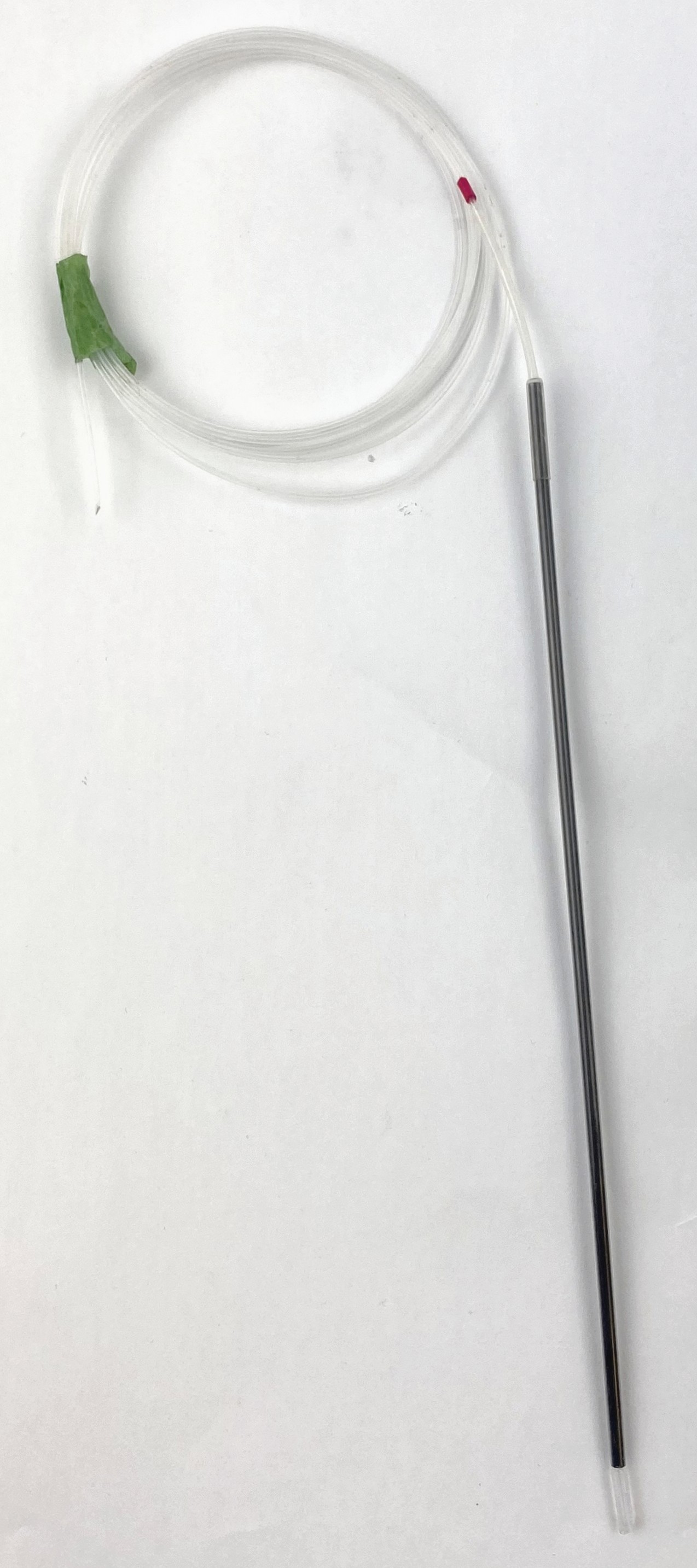

Three variations of sample probe are possible: 0.8 mm ID (red band); 0.3 mm ID (black band); 0.5 mm ID (blue band). These probe dimensions are also available in carbon fiber variations.


** SEE LINKS TO BROCHURE AND MANUAL FOR MORE INFORMATION

Specifications

ManufacturerAgilent Technologies
ModelASX-500 Series
ConditionUsed
Serial NumberUS120843A520
MPNG3286A
Condition DescriptionIN WORKING ORDER
Electrical Requirements24V, 3.33A power adapter
Electrical Certification / ApprovalCUL
Dimensions21”W x 18”D x 11”H
Weight (lbs)40
Country/region of manufactureUnited States
Custom LabelC4B
