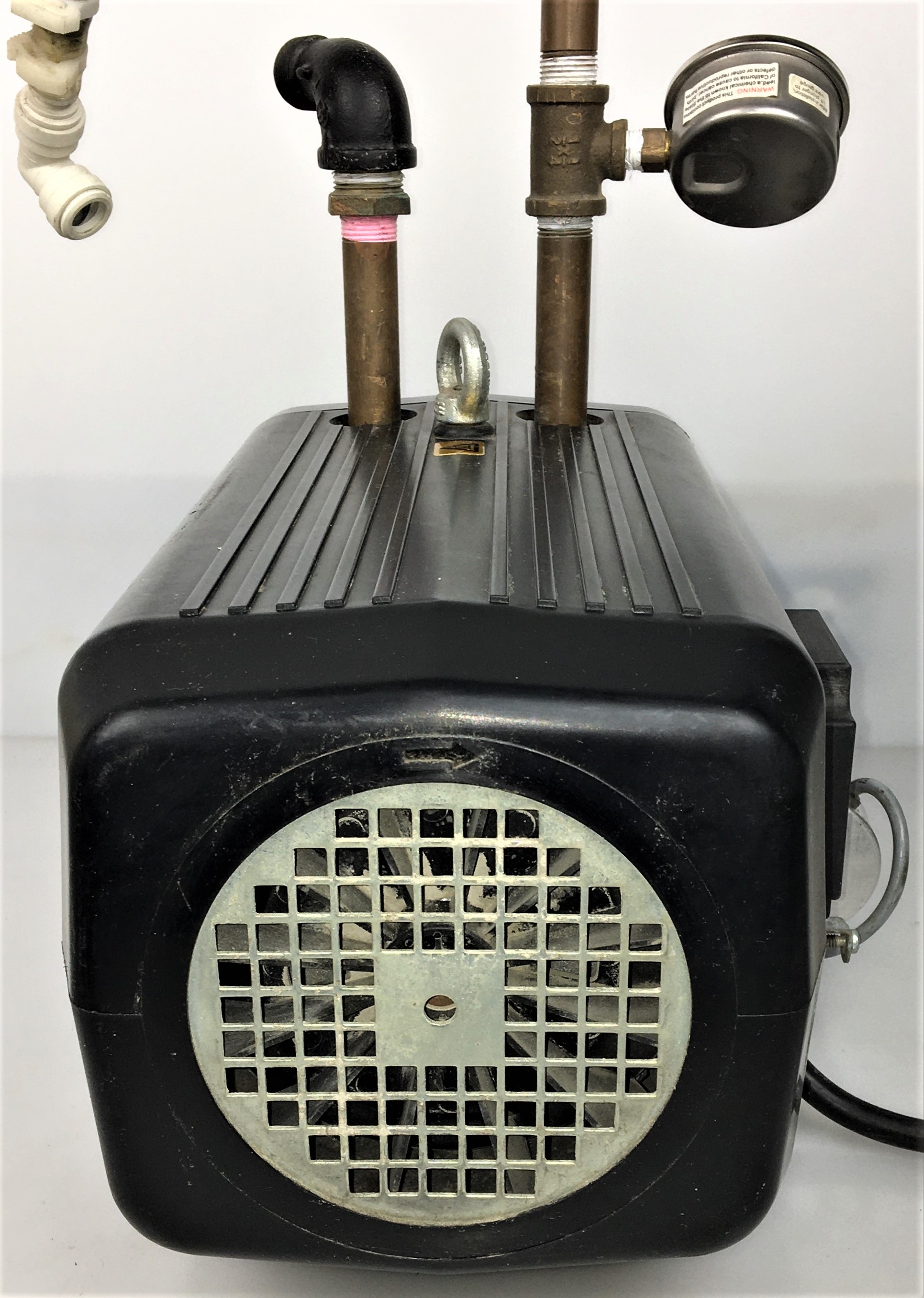

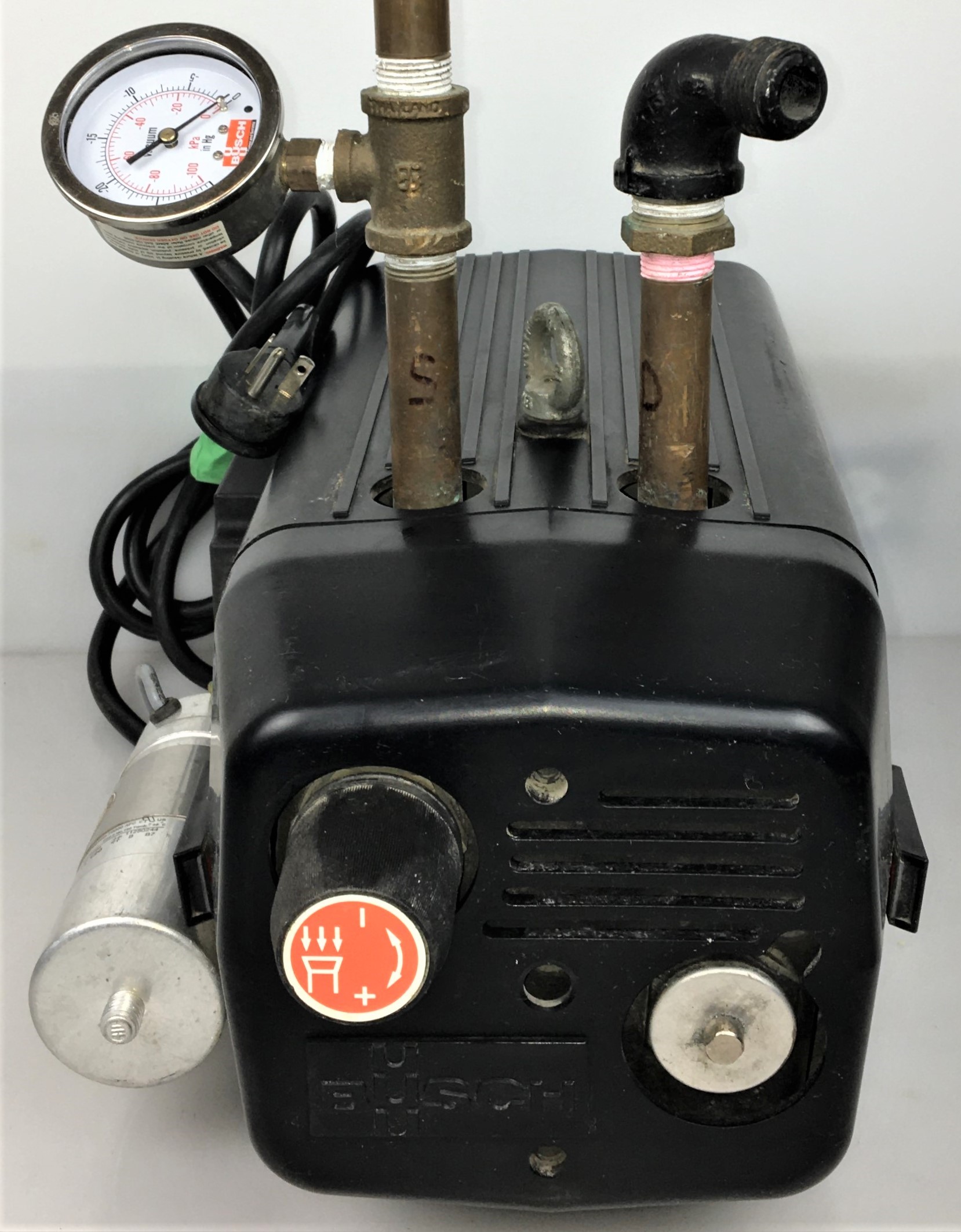

Busch SECO SV 1016 C Oil-Free Rotary Vacuum Pump - 11.2cfm

Busch SECO SV 1016 C Oil-Free Rotary Vacuum Pump - 11.2cfm

Available quantity: 1

orCall 1-514-464-6144


Busch SECO SV dry-running rotary vane vacuum pumps are compact, robust and extremely powerful. Due to their proven lubricant-free operating principle they can be used in many industrial applications where rapid and reliable oil-free vacuum is required. For example, they are perfectly suited for use in pick and place applications, in hospitals and healthcare facilities, for clamping and holding, packaging and printing.

Dry-running rotary vane vacuum technology has been continuously developed and optimized by Busch in the course of over 30 years. High levels of availability and operational reliability are the benefits of ongoing product advancement. SECO SV rotary vane vacuum pumps are characterized by their robust construction and self-lubricating vanes made from special graphite Aerodur 274 Zirkon.

These vanes are extremely resistant to both wear and humidity. They have a lifetime longer than other conventional vanes on the market, ensuring extremely high uptime and minimized operating costs.

Perfectly synchronized components and materials, effective heat discharge and state-of-the-art precision manufacturing ensure constantly high pumping speeds in continuous operation. Their compact dimensions allow installation to be carried out almost anywhere with ease.

Nominal pumping speed: 11.2 CFM (16 / 19 m³/h)

Ultimate pressure: 112.5 Torr (150 mbar) NOTE: Return policy / warranty does not cover misuse and/or exposure to contaminants.

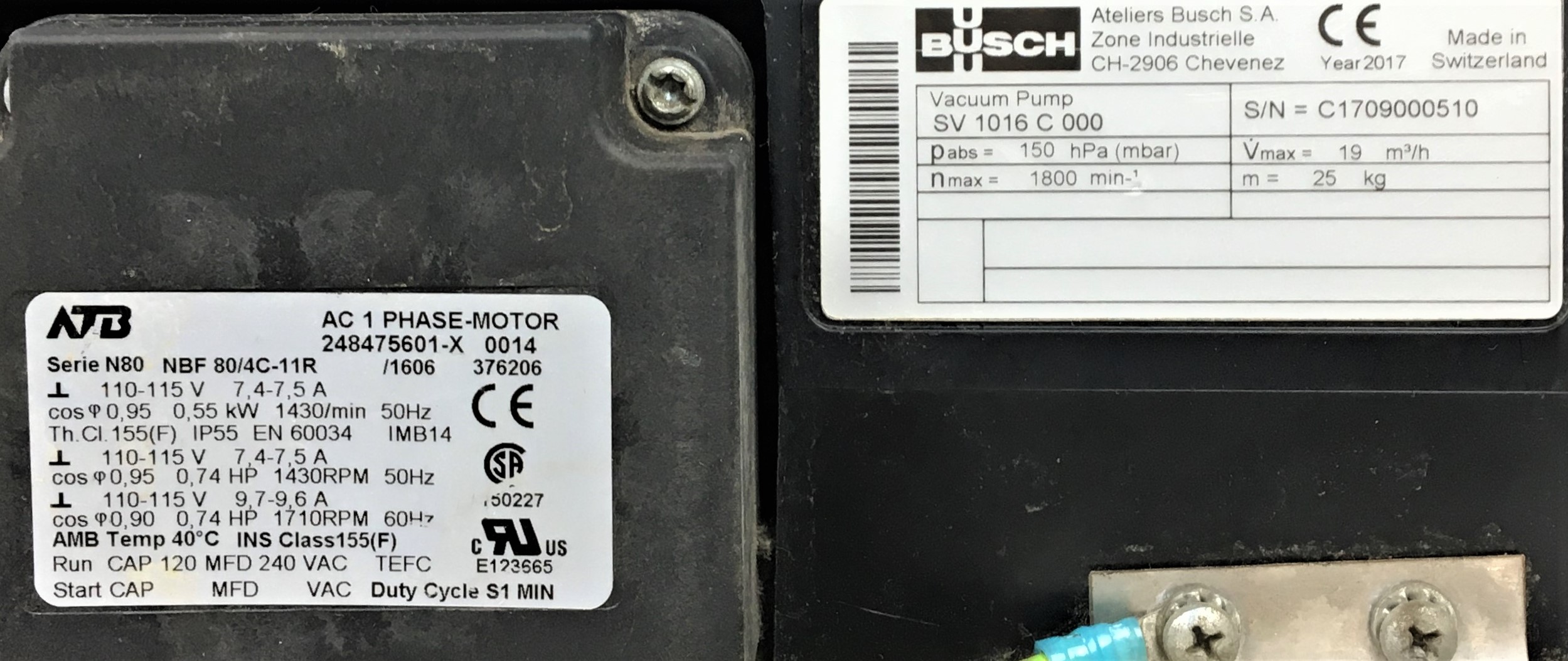

ManufacturerAteliers Busch SA
Serial NumberC1709000510
MPNSV 1016 C 000
Condition DescriptionIN GOOD WORKING ORDER
Maximum flow rate11.2 cfm
Ultimate Pressure112.5 Torr
Electrical Requirements110-115V, 50/60hZ, 9.6/7.4A, 1 phase
Electrical Certification / ApprovalCSA
Dimensions19"W x 8"W x 15"H
Weight (lbs)48
Country/region of manufactureSwitzerland
Custom LabelB2D
