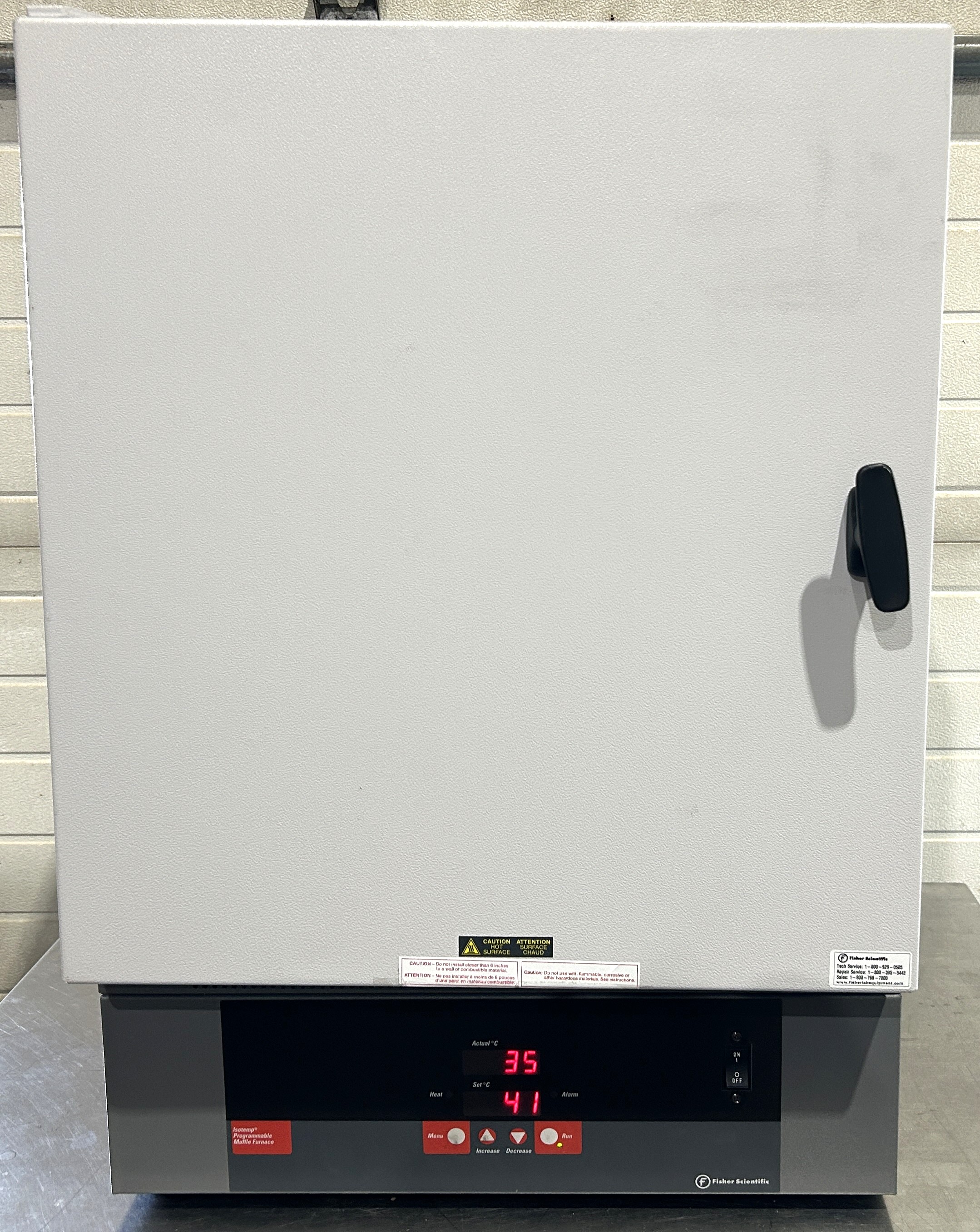

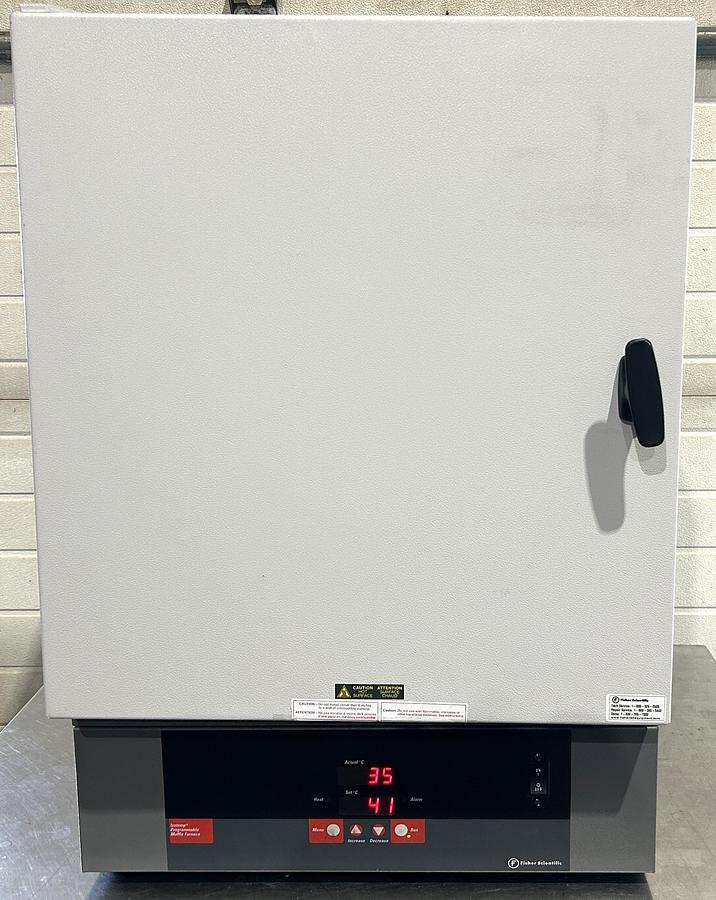

Fisher Isotemp 650-126 Programmable Muffle Furnace (1.26 Cu-Ft)

The Fisher Isotemp 650-126 programmable muffle furnace provides PID microprocessor temperature control at operating temperatures from 50 to 1125°C (90 to 2057°F). The chamber measures 12"W x 14"D x 13"H (1.26 cu-ft). Furnace chambers are molded from alumina silicate ceramic fibers. Use of this material provides low thermal mass for fast heat-up and cool-down, as well as an unusually low exterior furnace temperature for safe operation. The furnace is heated by electric resistance elements embedded in easily removable side and base panels. The heating elements are designed to ensure extended service life, even in atmospheres characteristic of high-sulfur coal and coke samples.

Temperature readouts and control parameters are shown on two red 7-segment displays. Two LED's indicate when heater power is being applied or when an over-temperature error condition is encountered. Temperatures can be displayed in either °C or °F.

** SEE LINK TO MANUAL FOR MORE INFORMATION
