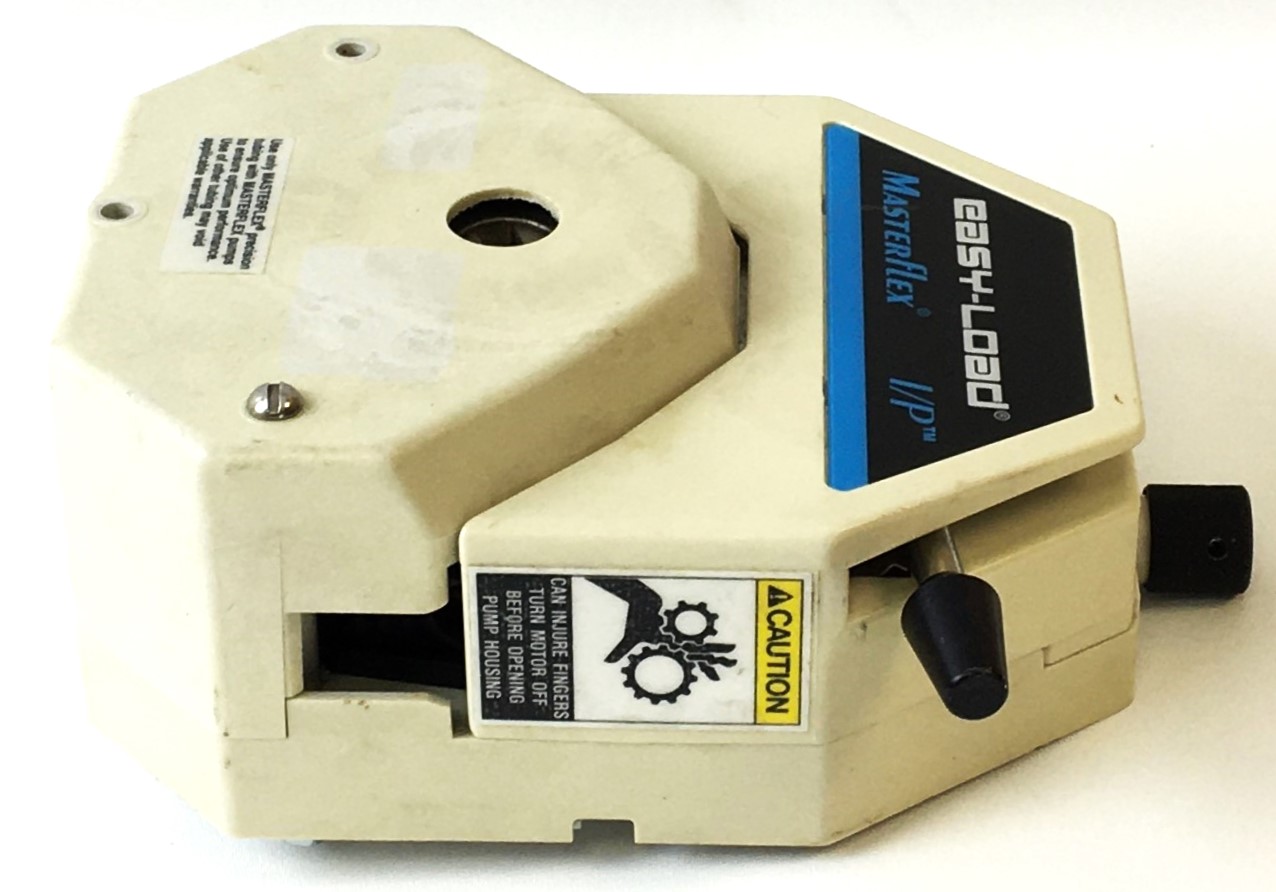

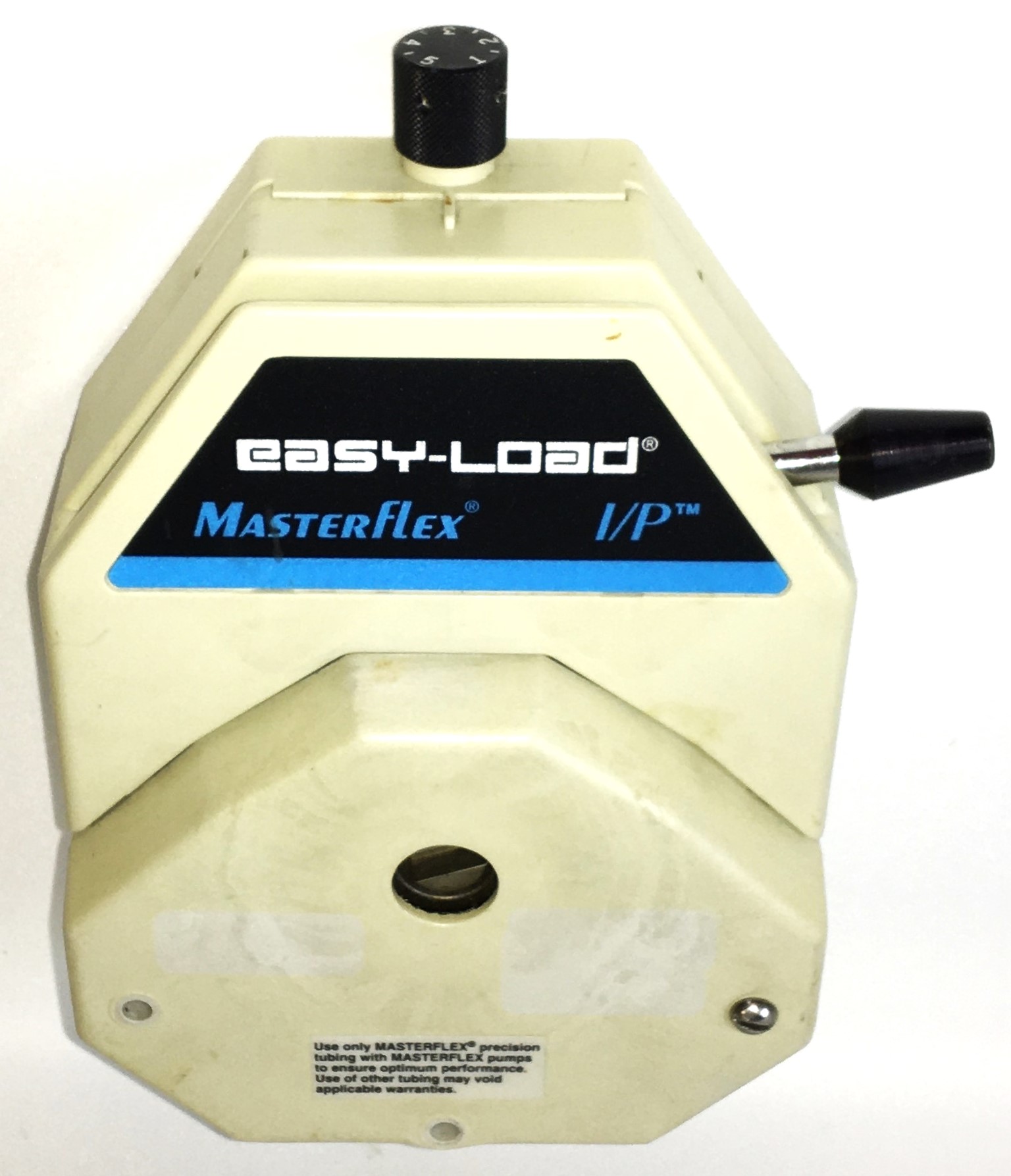

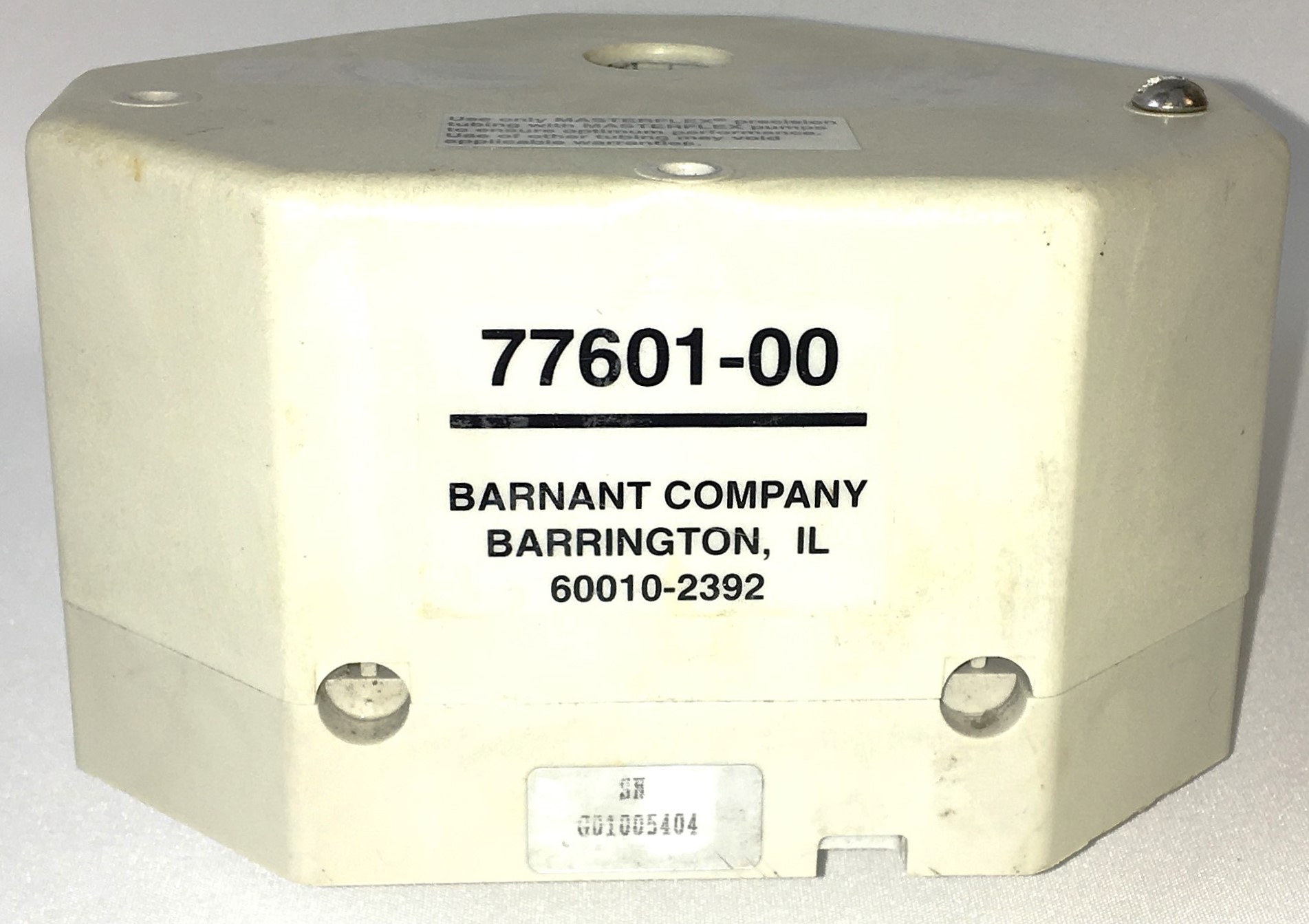

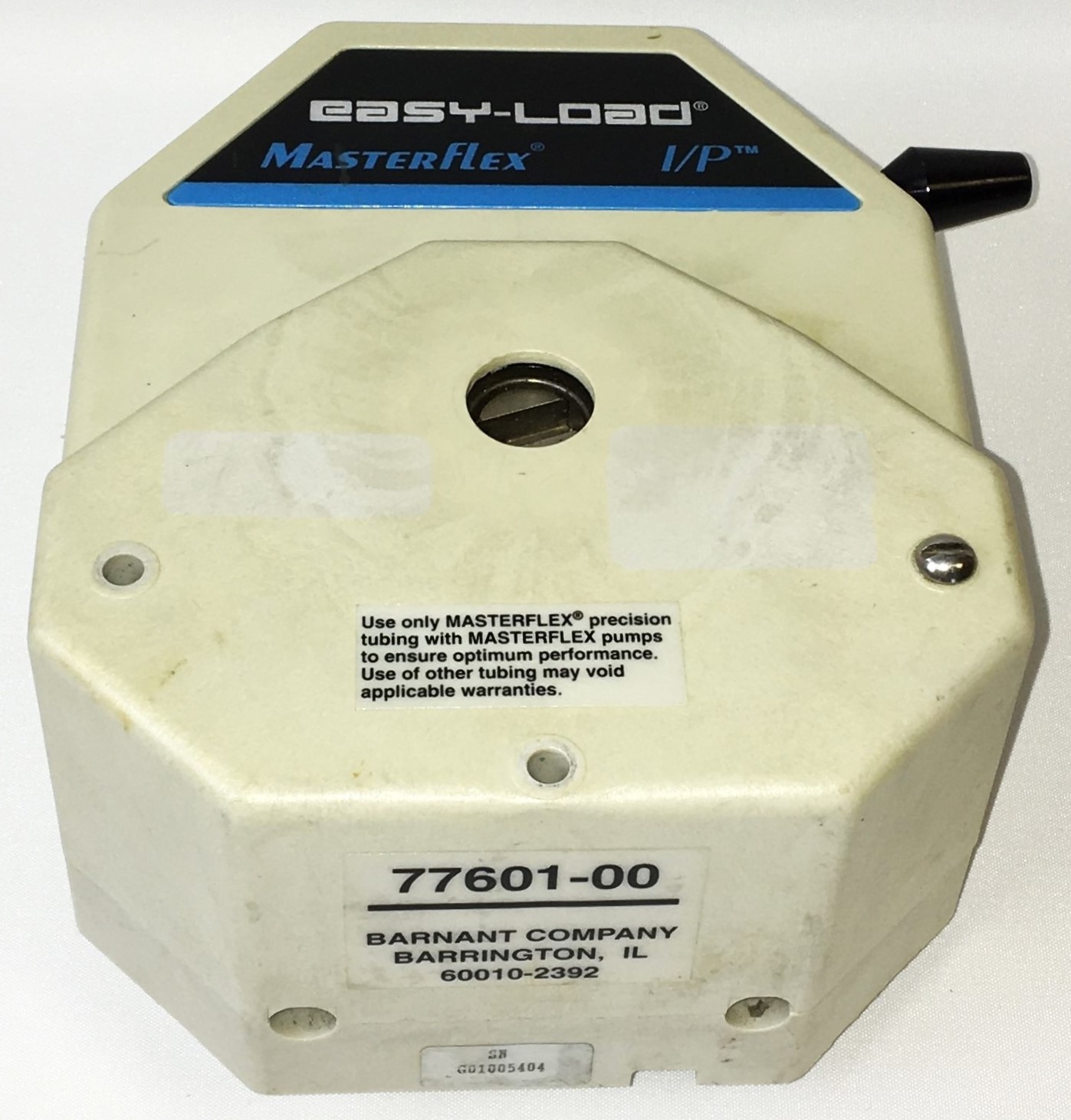

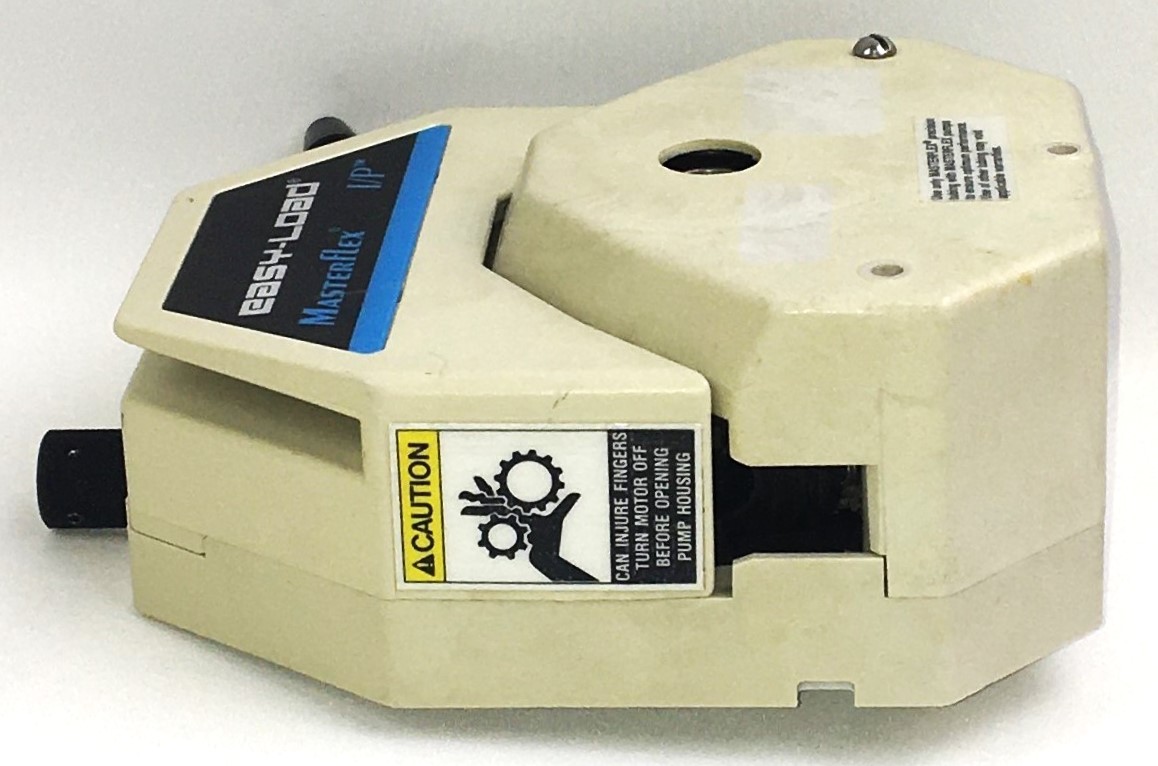

Cole-Parmer Masterflex Easy-Load I/P 77601-00 Pump Head

This Easy-Load I/P 77601-00 pump head when combined with a Masterflex I/P drive or compatible system (not included) is designed to provide a simple easy-to-use peristaltic pump system. This short-shaft version pump head accepts 3 different tubing sizes for a wide range of flow rates (I/P 26, 73, 82). The unique over-center cam design and automatic tubing retention allows quick tubing changes and greatly reduced maintenance time. I/P Easy-Load pump heads can be mounted in tandem depending upon the torque capabilities of the drive. A standard short shaft pump head is required for an add-on head along with special mounting hardware (not included).

Maximum pump speed (rpm): 650

Nominal torque load-Starting: up to 13 kg-cm (180 oz-in)

Nominal torque load-Running: up to 9 kg-cm (120 oz-in)

Housing materials: Polysulfone (PSF)

Roller/rotor materials: Cold-rolled steel (CRS)
