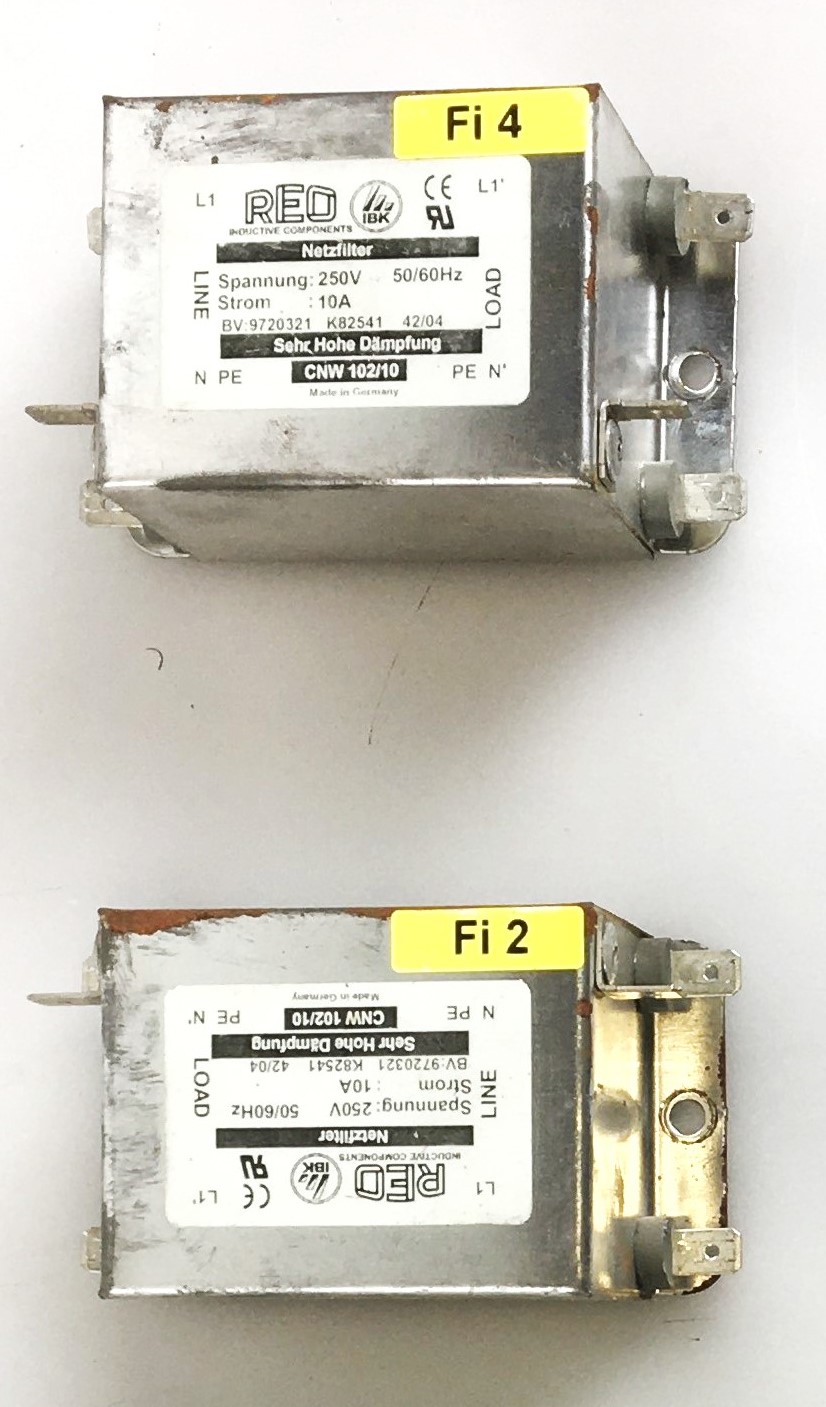

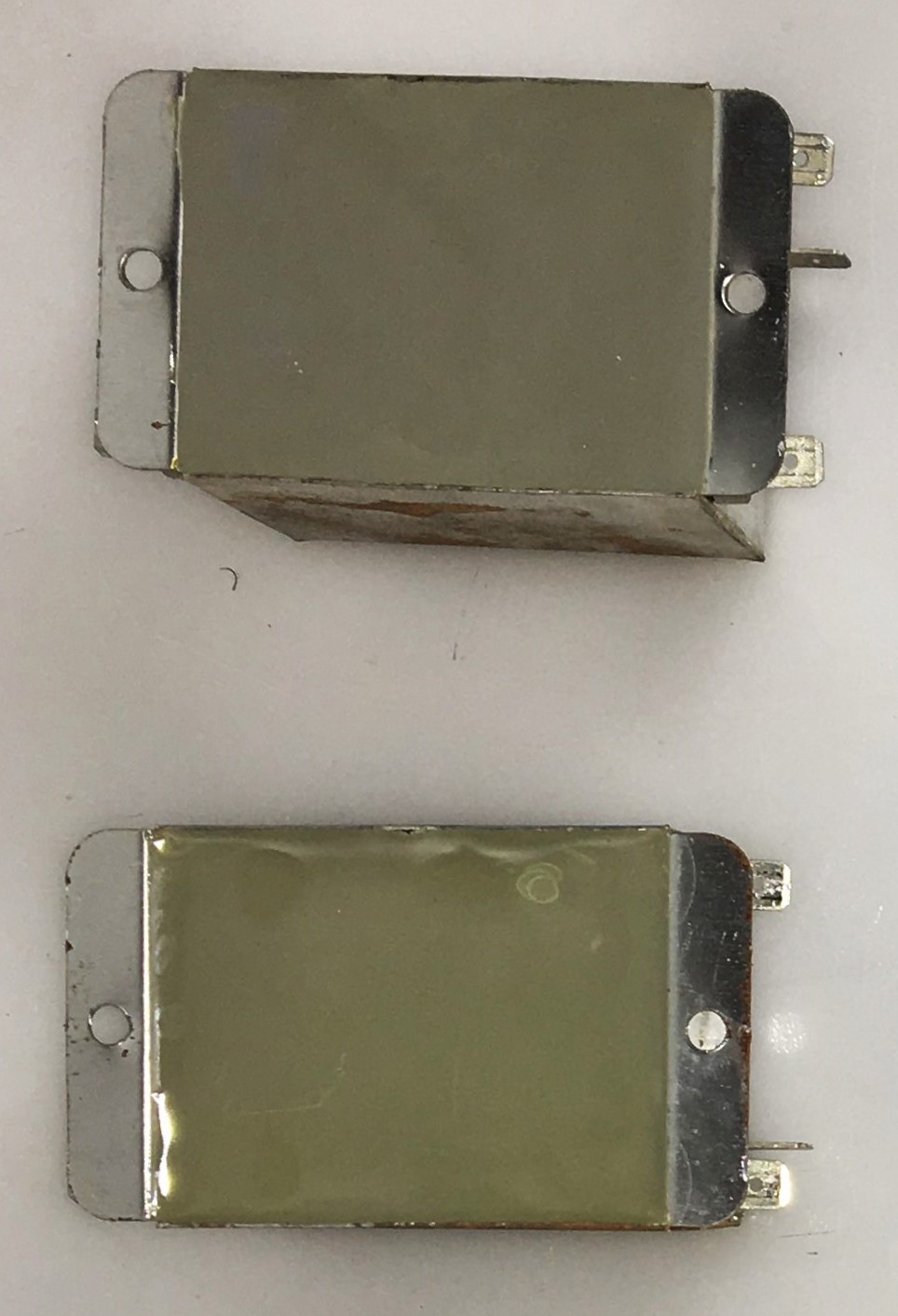

REO CNW 102/10 EMI Filter

This REO CNW 102/10 EMI filter was removed from a Spectro Ciros Vision ICP-OES spectrometer. Recommended filter for suppressing interference according to EN 55011, Class A and EN 61800-3, category C2. Low-cost filter with small dimensions and very good damping performance for the direct installation in a case on the interference source. The filter is also as a version with low leakage current as well as special medical version (no Y capacitors) available. Optionally, the filter can be delivered with overvoltage protection. The connection with insulated spade connections enables a fast assembly. Also other versions with different connections (like clamp or braid) are possible. Applications: Switch-mode power supplies for industrial electronics, frequency converters for motor drives, power supply units, medical and telecommunication applications, DC applications

** SEE LINK TO BROCHURE FOR MORE INFORMATION
