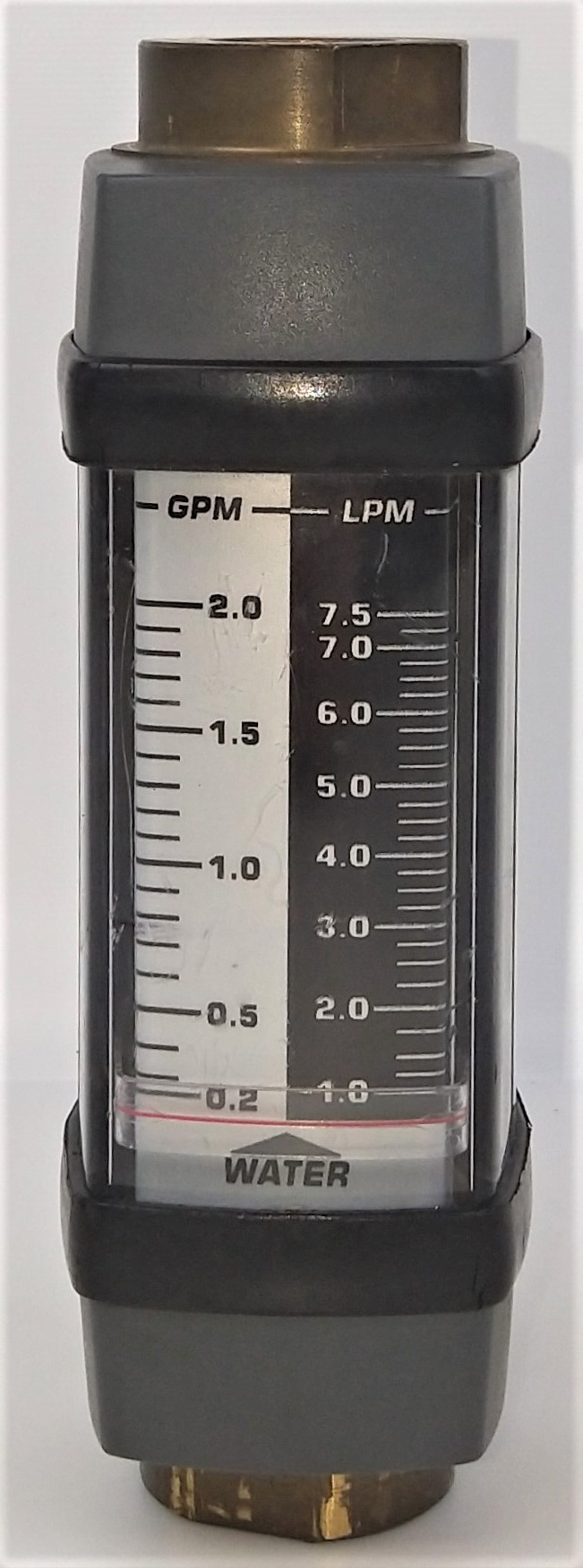

Hedland H605B-002 1/2" Brass Variable Area Water Flow Meter

Hedland H605B-002 1/2" Brass Variable Area Water Flow Meter

Available quantity:1

Description

The Hedland H605B-002 variable area type flow meter utilizes a spring and piston type assembly. Differential pressure caused by flow between the metering cone and the piston/magnet assembly moves the piston against a retaining spring.

Measuring range: 0.2 to 2.0 GPM (1 to 7.5 LPM)

Key Features:

Direct reading

Install in any position 360º rotatable guard/scale

Easier to read linear scale

No flow straighteners or special piping required

Insensitive to shock and vibration

Good viscosity stability

Temperature up to 240ºF

Accuracy: ±2% full scale

Repeatability: ±1%

Specifications

ManufacturerRacine Federated Inc
ModelHedland
Year2007
ConditionUsed
Serial Number0054
MPNH605B-002
Condition DescriptionIN VERY GOOD CONDITION - APPEARS UN-USED
Measuring Range0.2 to 2.0 GPM (1 to 7.5 LPM)
Dimensions7”W x 3”D x 3”H
Weight (lbs)3
Country/region of manufactureUnited States
Custom LabelE2
