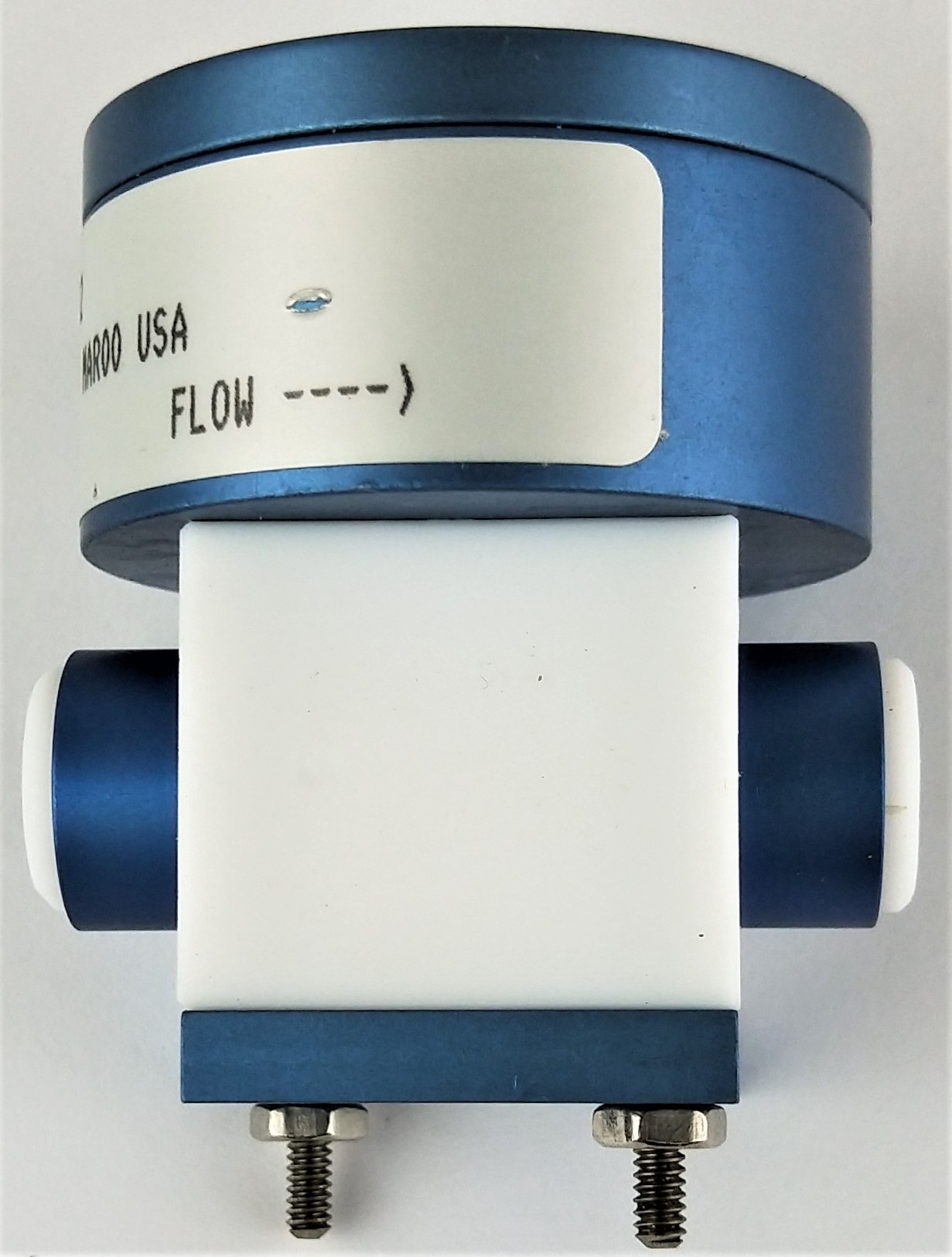

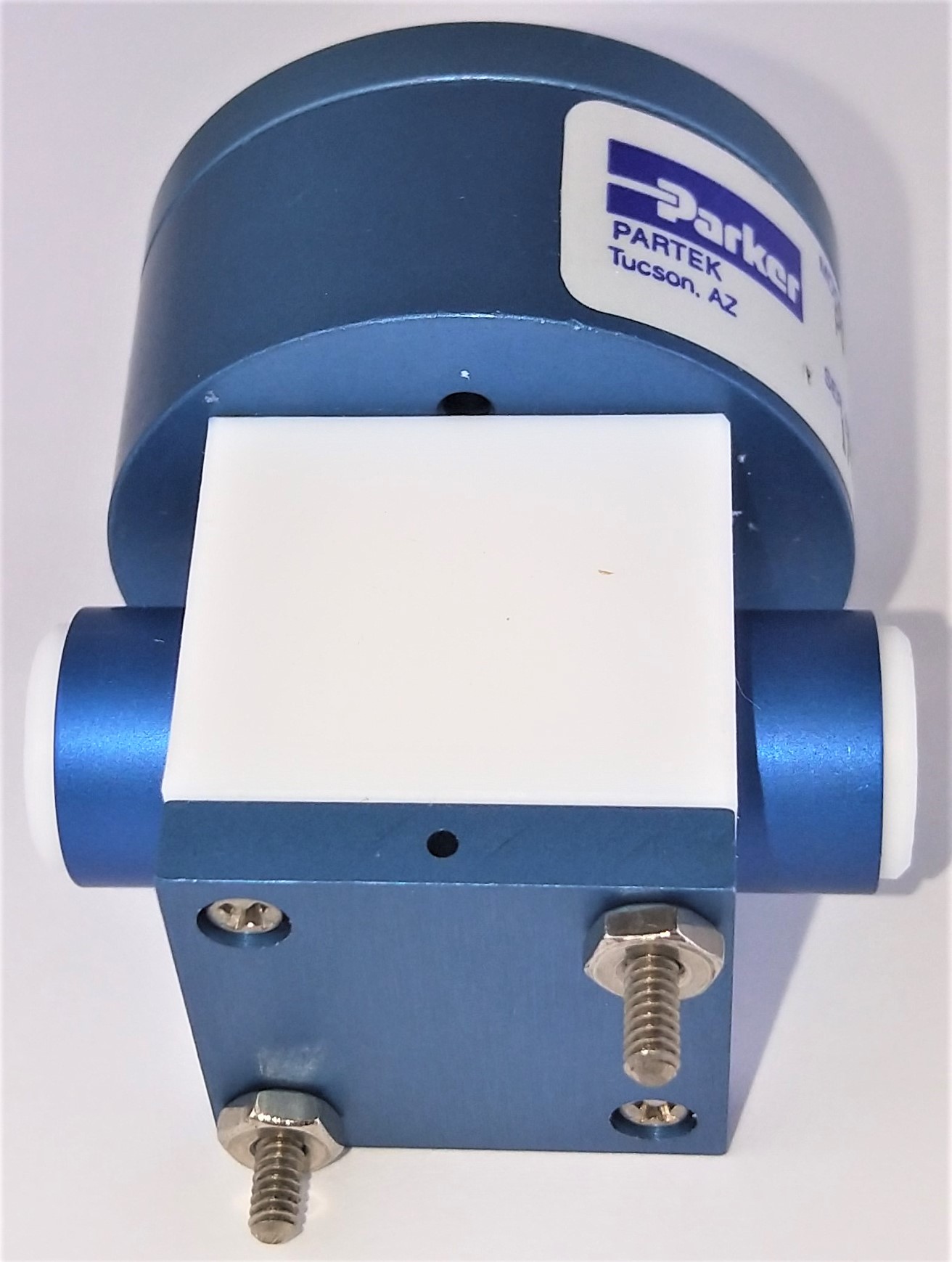

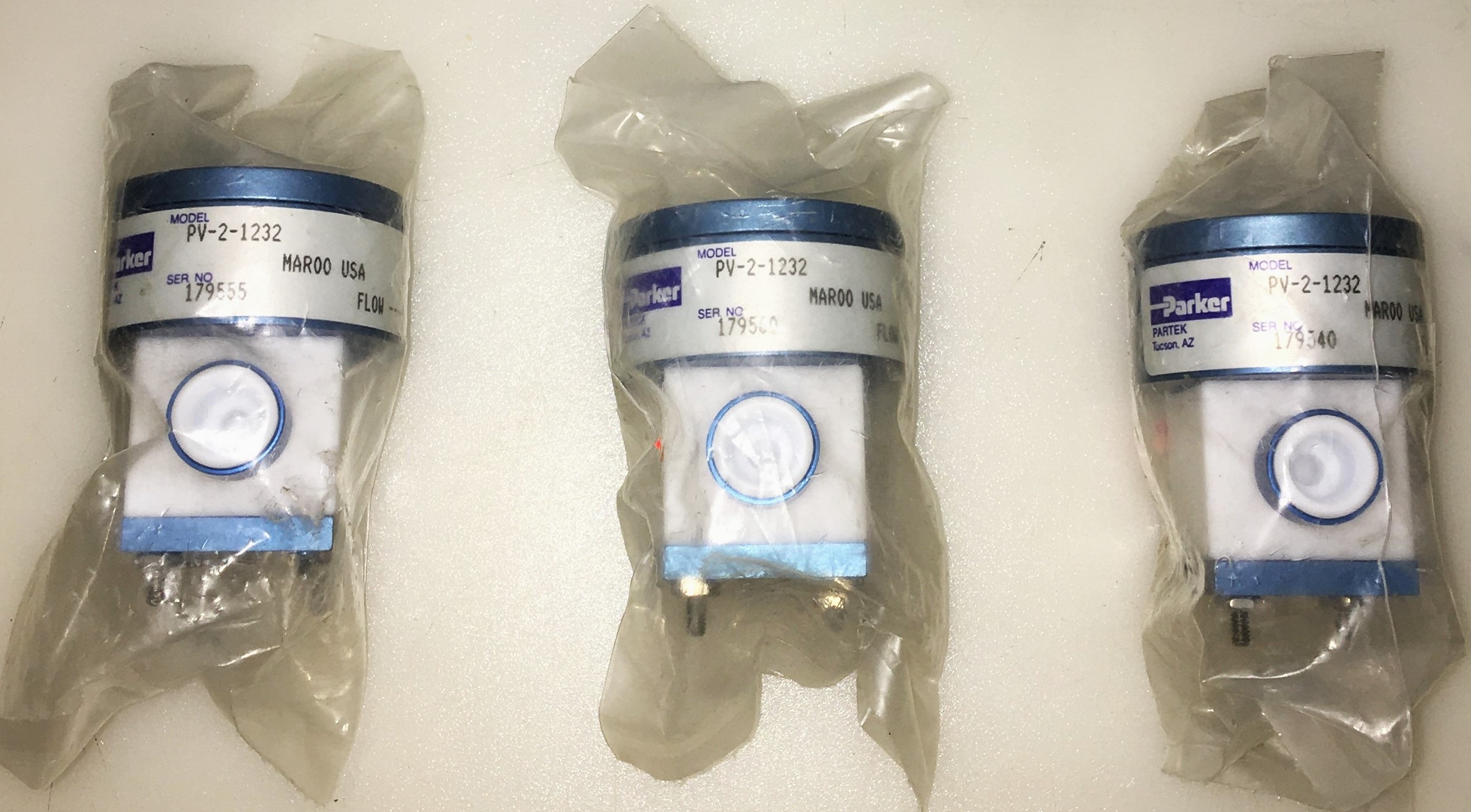

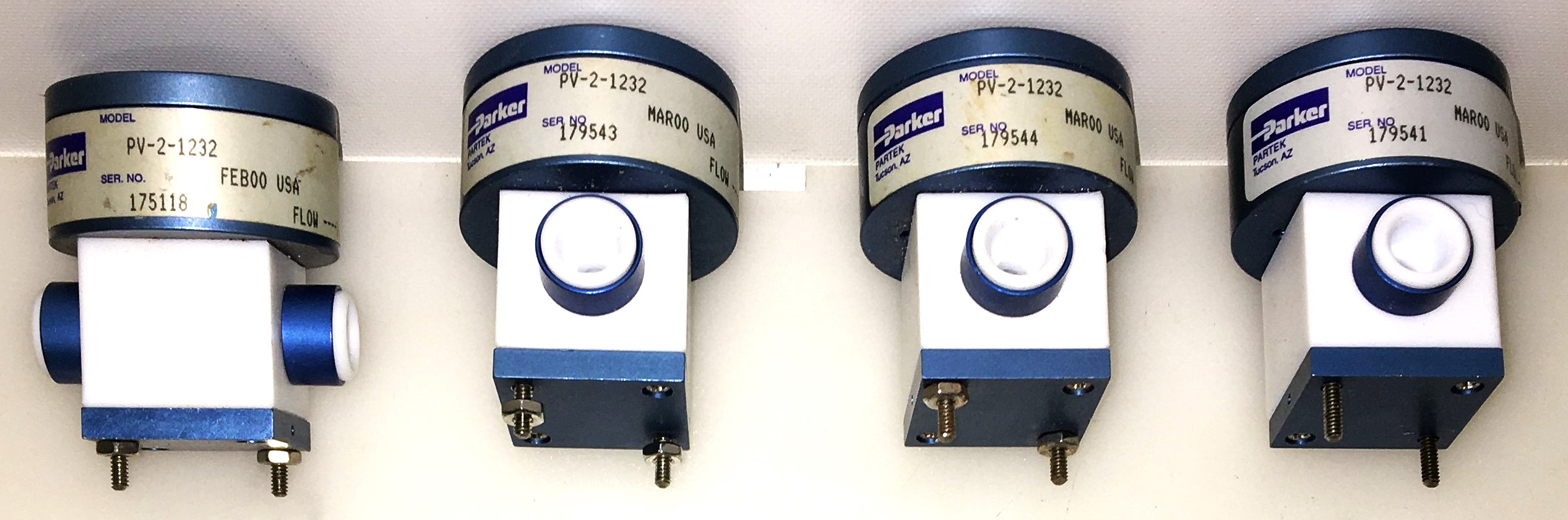

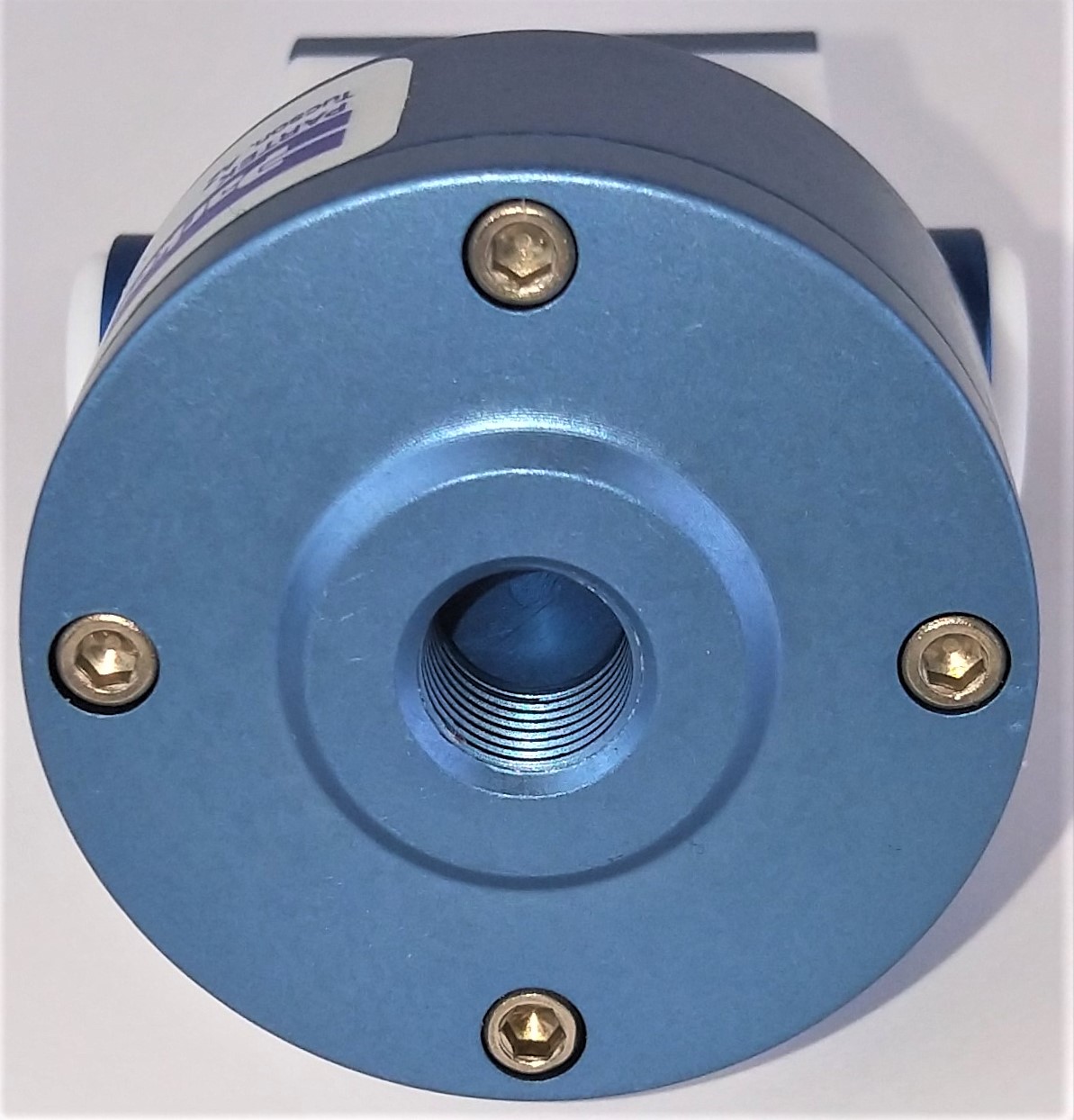

Parker Partek PV-2-1232 Miniature High Purity 2-Way Pneumatic ¼” Diaphragm Valve

Parker Partek PV-2-1232 Miniature High Purity 2-Way Pneumatic ¼” Diaphragm Valve

70

Available quantity: 8

orCall 1-514-464-6144

Description

The PV-2-1232 miniature high purity 2-way pneumatic diaphragm valve is designed for use in high purity semiconductor applications, and is also ideally suited for ultra-pure water and aggressive chemical systems. The design utilizes a machined modified PTFE body, seat and diaphragm ensuring excellent flexibility and long life. It is ideal for low flow and small dose injection applications in UHP and aggressive fluid applications.

Specifications:

Pressure Rating: Vacuum to 20 PSIG in both forwards and backwards direction

Corrosion-resistant

Compact actuator design has a 20-120 PSIG AOP actuation pressure

Ambient Temperature Range: -60 To 212 F

Fluid Temperature Range: -60 To 400 F

Flow Rate: 0.08 CV

Body Material: PTFE, modified PTFE, anodized aluminum, stainless steel, nitrile

Fitting Type: Flared

Price is for one valve.

Specifications

ManufacturerParker Hannifin
ModelPartek
Year2000
ConditionNew open box
Serial Number175118, 179552, 179541, 179544, 179543, 179540, 179560 and 179555
MPNPV-2-1232
Condition DescriptionOPEN PACKAGE - NOT USED
Country/region of manufactureUnited States
Custom LabelT3
