Lab-Line Orbit 3545 Shaking Bath

Lab-Line Orbit 3545 Shaking Bath

Available quantity:1

orCall 1-514-464-6144

Description

The Lab-Line Orbit 3545 shaking bath has microprocessor temperature control and is ideal for applications that require a controlled temperature bath combined with orbital shaking motion. Primary hydraulic thermostat controls temperature from slightly above ambient to 65°C (100°C with lid - not included); second thermostat maintains temperature as a backup to the primary thermostat. Individual pilot lights indicate which thermostat is controlling bath temperature.

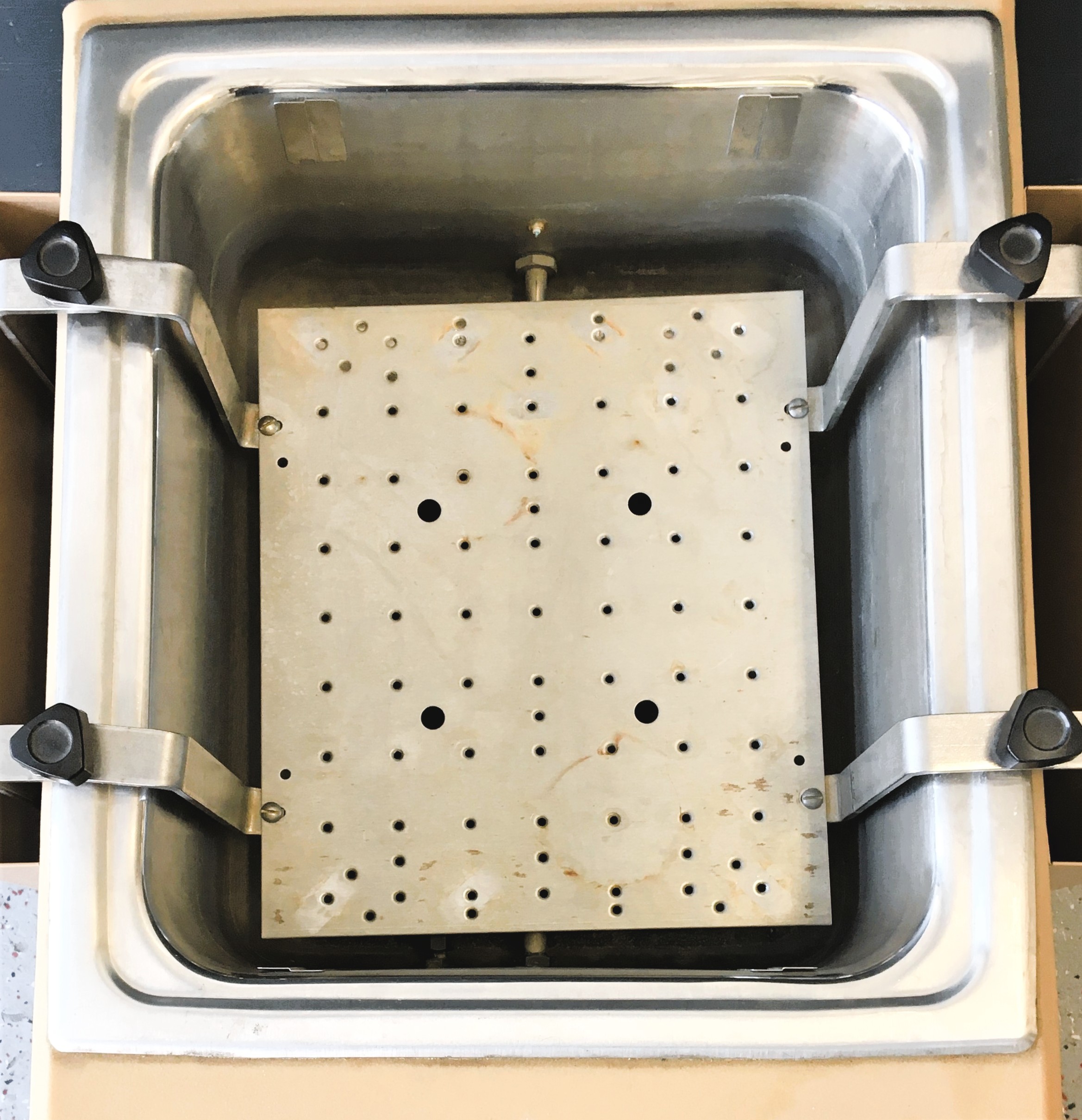

Heat selector switch allows user to select maximum of 40°C or 64°C - saves energy and provides more precise control. Outer body construction is chemically-resistant polyethylene that will not chip, rust or corrode. Drawn stainless steel bath chamber construction eliminates leaks, rust and bacterial growth.

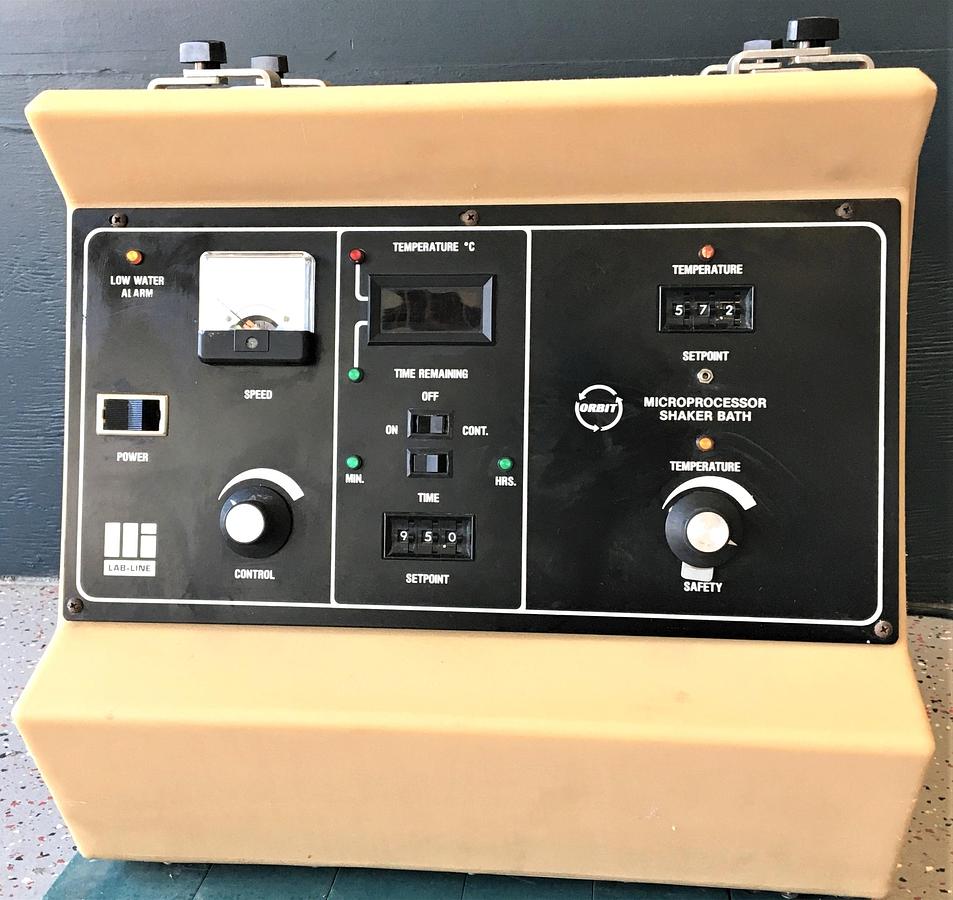

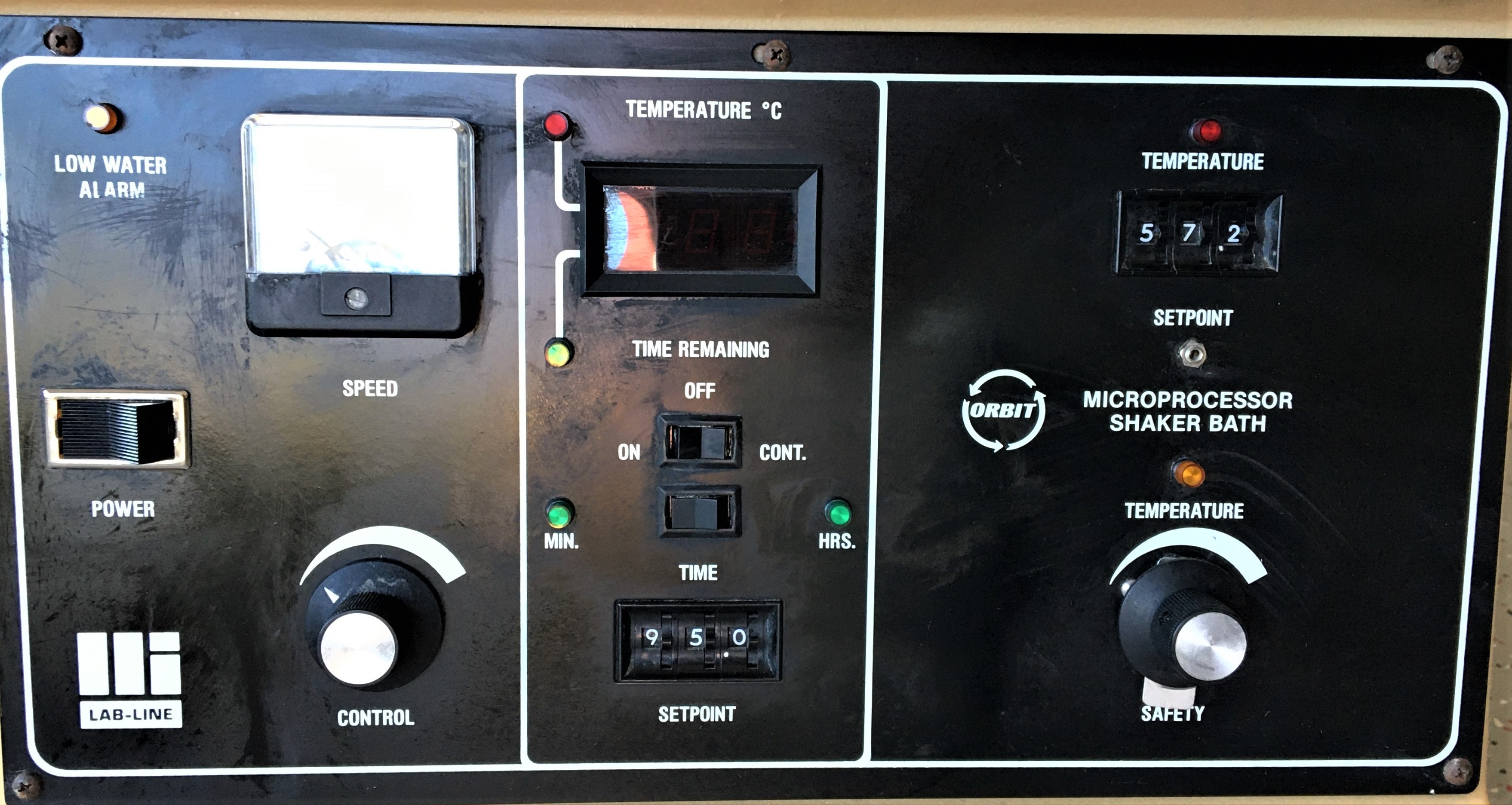

Solid-state speed controller adjusts from 40 to 400 rpm. Mechanical timer can be set for up to 60 minutes or for continuous operation. Easy-to-read LED temperature display. Counterbalanced drive provides high speed shaking with minimal vibration - even under heavy loads. 13 x 11" platform is included.


** Flask clamps may be added at extra cost, as available from inventory - please inquire.


** SEE LINK TO EQUIVALENT MANUAL FOR MORE INFORMATION

Specifications

ManufacturerLab-Line Instruments
ModelOrbit
Year1984
ConditionUsed
Serial Number0384-0107
MPN3545
Condition DescriptionIN GOOD WORKING ORDER
Temperature RangeAmbient to 65°C
Speed Range (rpm)40 - 400

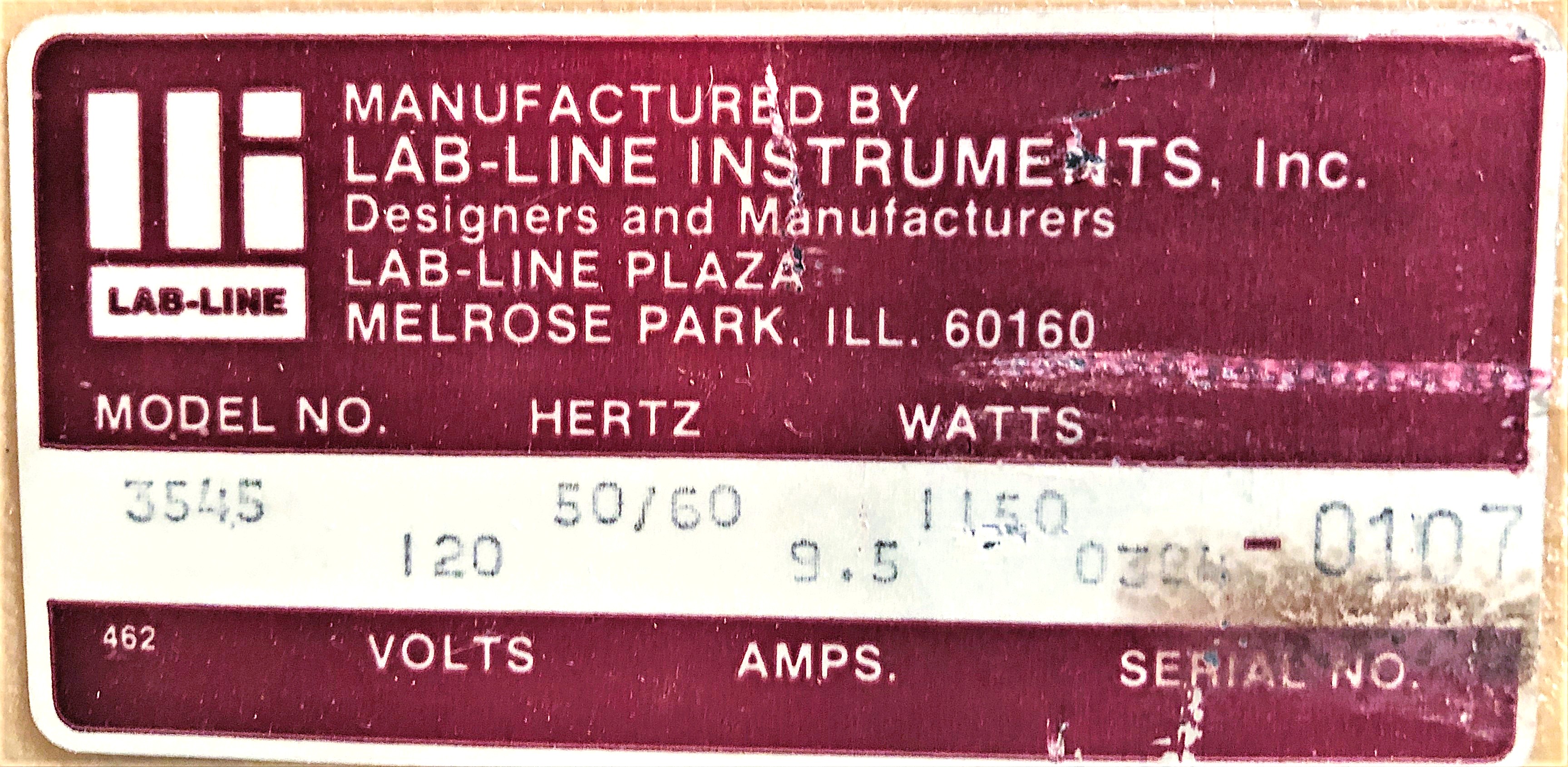

Electrical Requirements120V, 50/60hZ, 9.5A, 1150W
Electrical Certification / Approval.
Dimensions24"W x 30"D x 24"H
Weight (lbs)120
Country/region of manufactureUnited States
Custom LabelD1A
