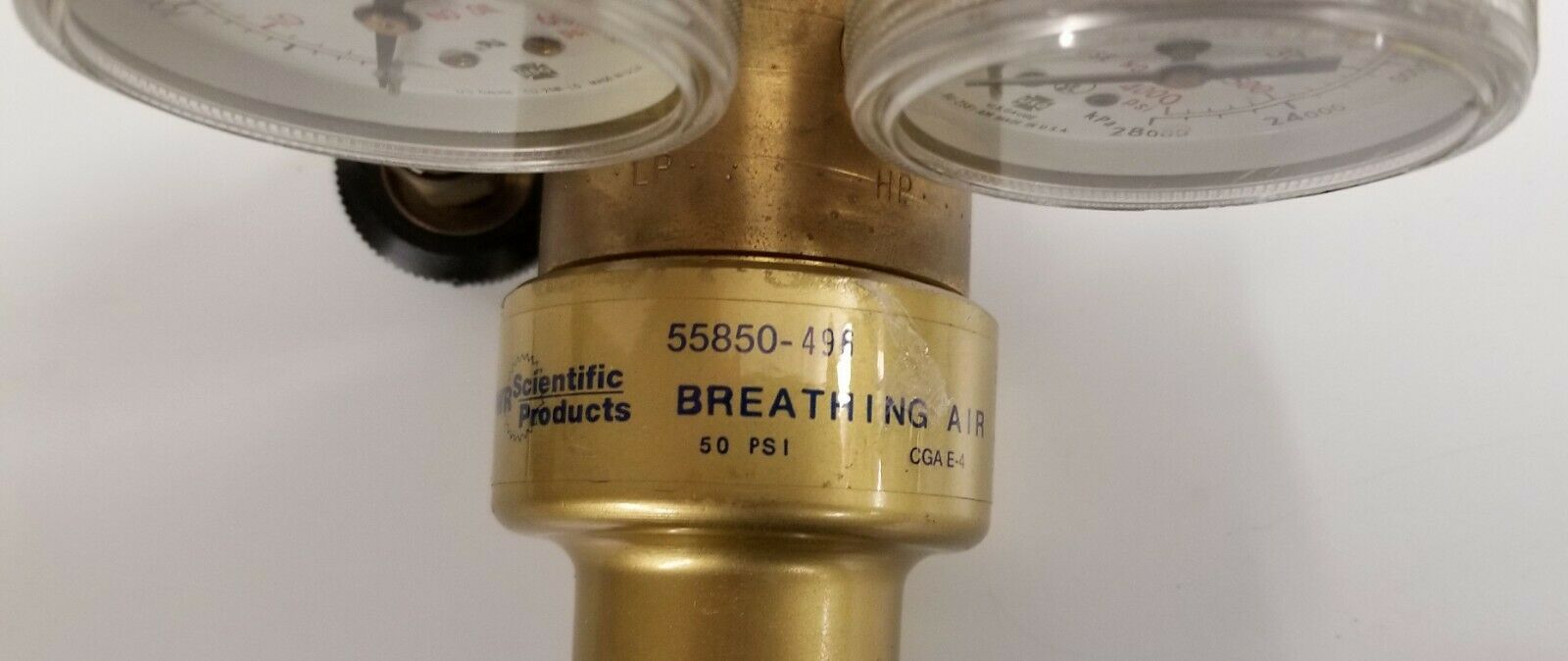

VWR 55850-496 Multi Stage Regulator - CGA 346

The VWR 55850-496 multistage gas regulator with neoprene diaphragm (Breathing Air) is designed for applications where constant pressure is over a wide range of inlet flow rates and pressures. Solid forged brass contains two regulators, it reduces full cylinder pressure and delivers constant pressure to the regulator outlet.

Specifications:

- Delivery pressure gauge: 60 psig

- Delivery range: 0-50 psi

- Flow capability standard: 1400 CFH

- Inlet CGA: 346

- Supply pressure gauge: 4000 psig

- Regulators: 2

- External safety: 250 psig

- Max Inlet: 3000 psig

- Diaphragm: Neoprene 2 ¾ in.

- Gauge: 2 in.

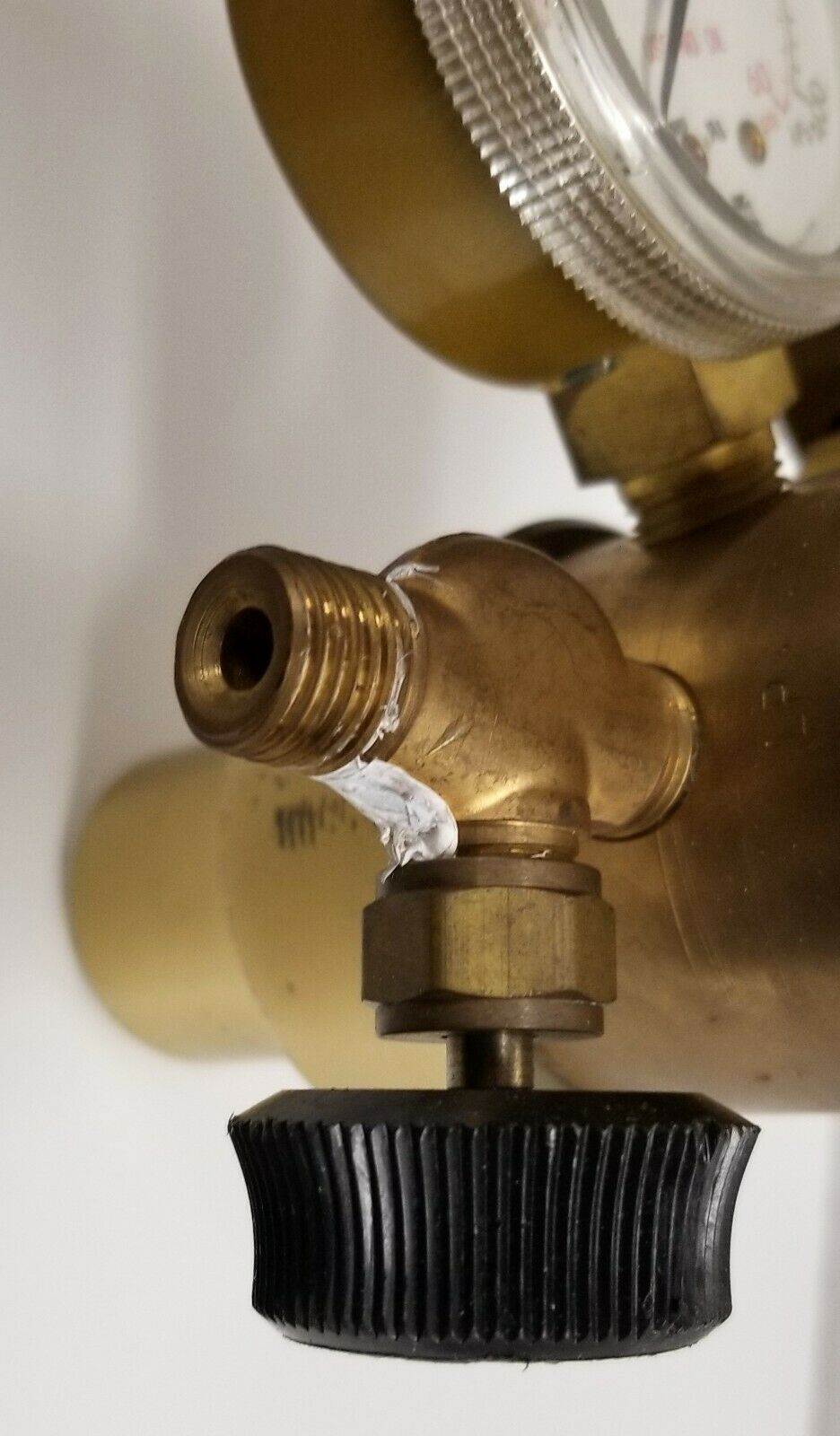

- Outlet: Needle Valve with ¼" male outlet thread ¼” Hose Barb

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
