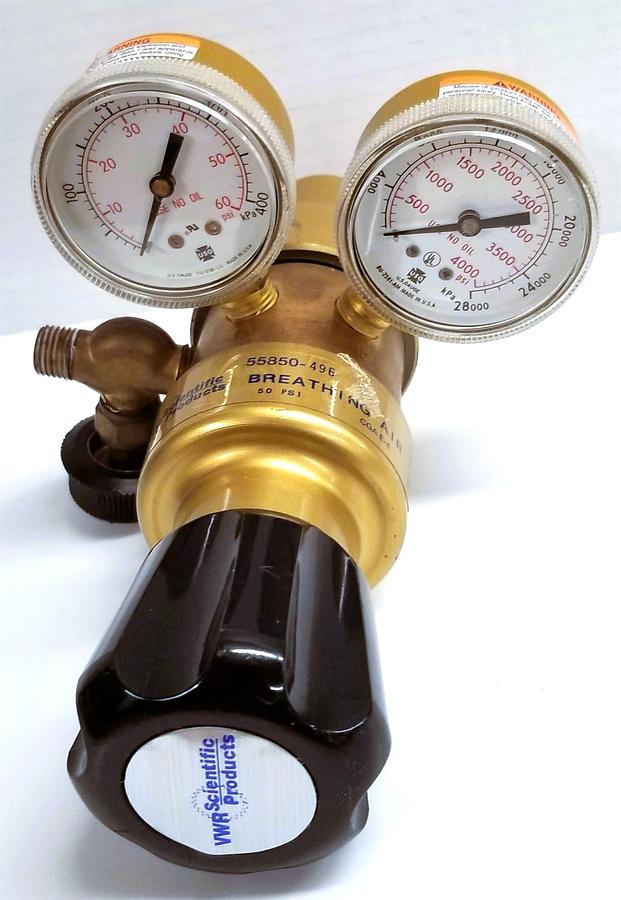

VWR 55850-496 Single Stage Regulator for Breathing Air (CGA 346)

The VWR 55850-496 single stage gas regulator with neoprene diaphragm (Breathing Air) is designed for applications where constant pressure is over a wide range of inlet flow rates and pressures. Regulators have a brass body and are suitable for a wide variety of applications where small changes in the gas delivery pressure will not degrade performance. The regulator has easy-to-read gauges and sintered metal inlet filter eliminates particulates.

Specifications:

- Delivery pressure gauge: 60 psig

- Delivery range: 0-50 psi

- Flow capability standard: 2100 CFH

- Inlet CGA: 346

- Supply pressure gauge: 4000 psig

- Max Inlet: 3000 psig

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
