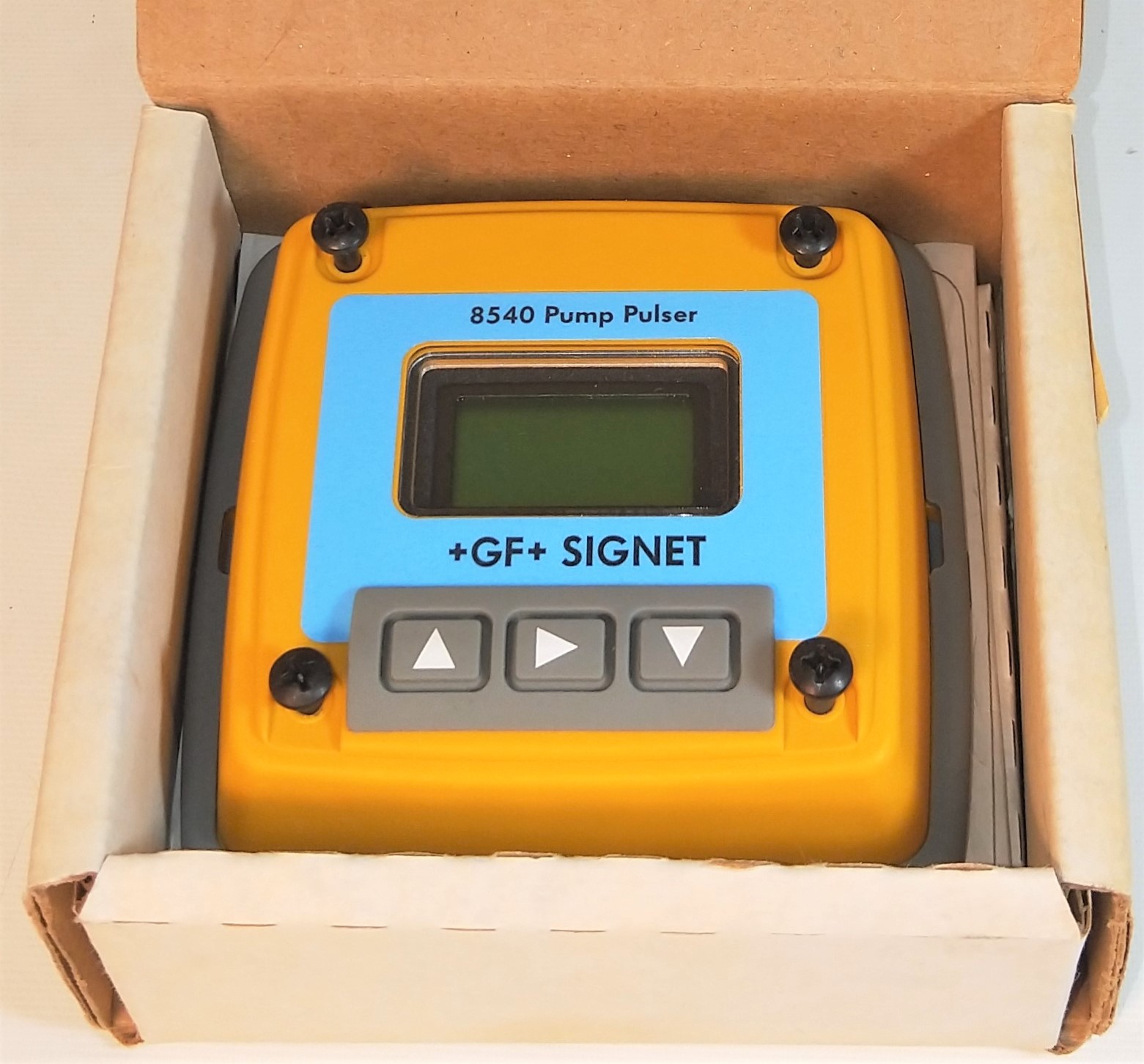

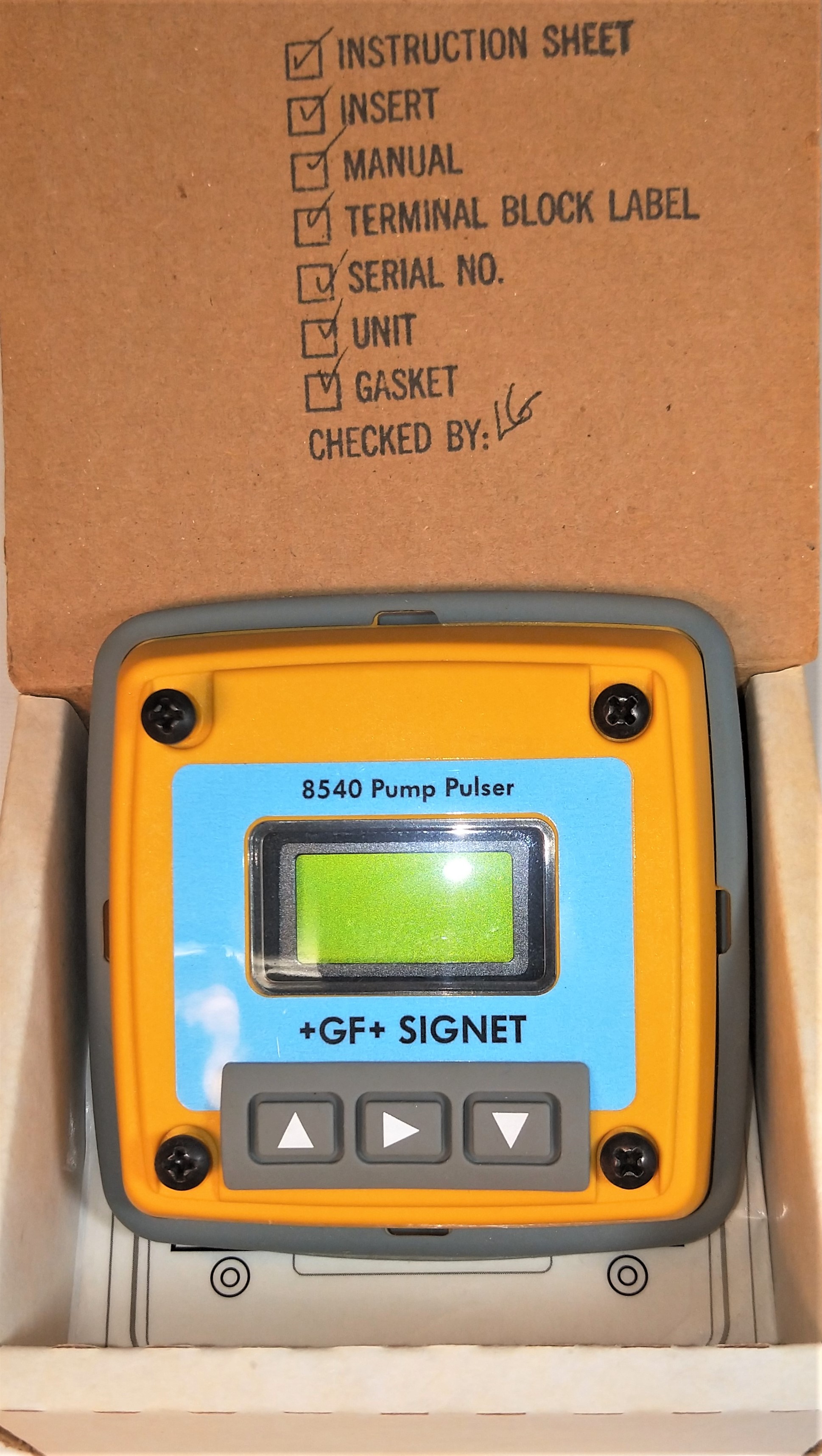

GF Signet 8540 Pump Pulser Flow Transmitter

GF Signet 8540 Pump Pulser Flow Transmitter

Available quantity:2

orCall 1-514-464-6144

Description

Price is for one unit only

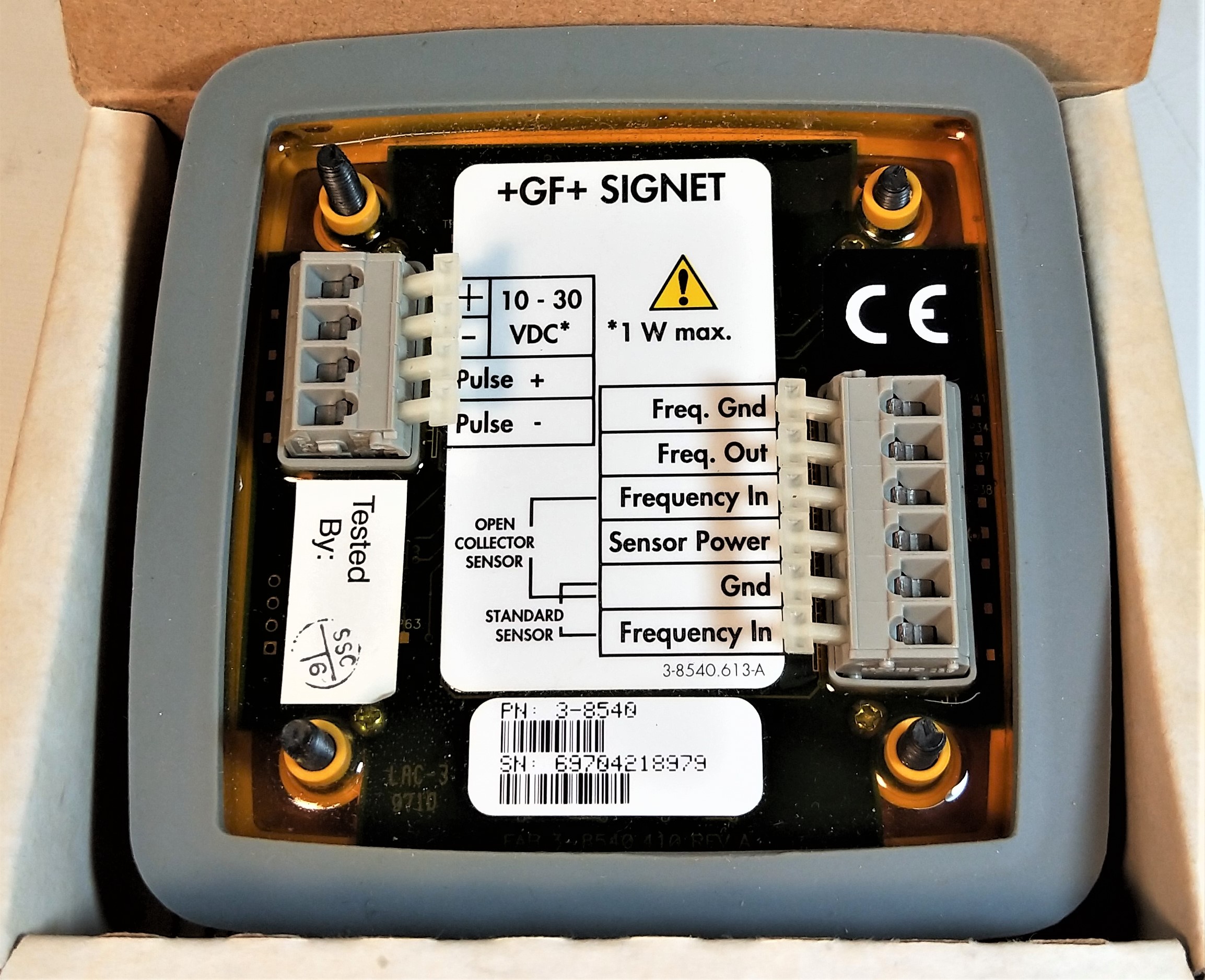

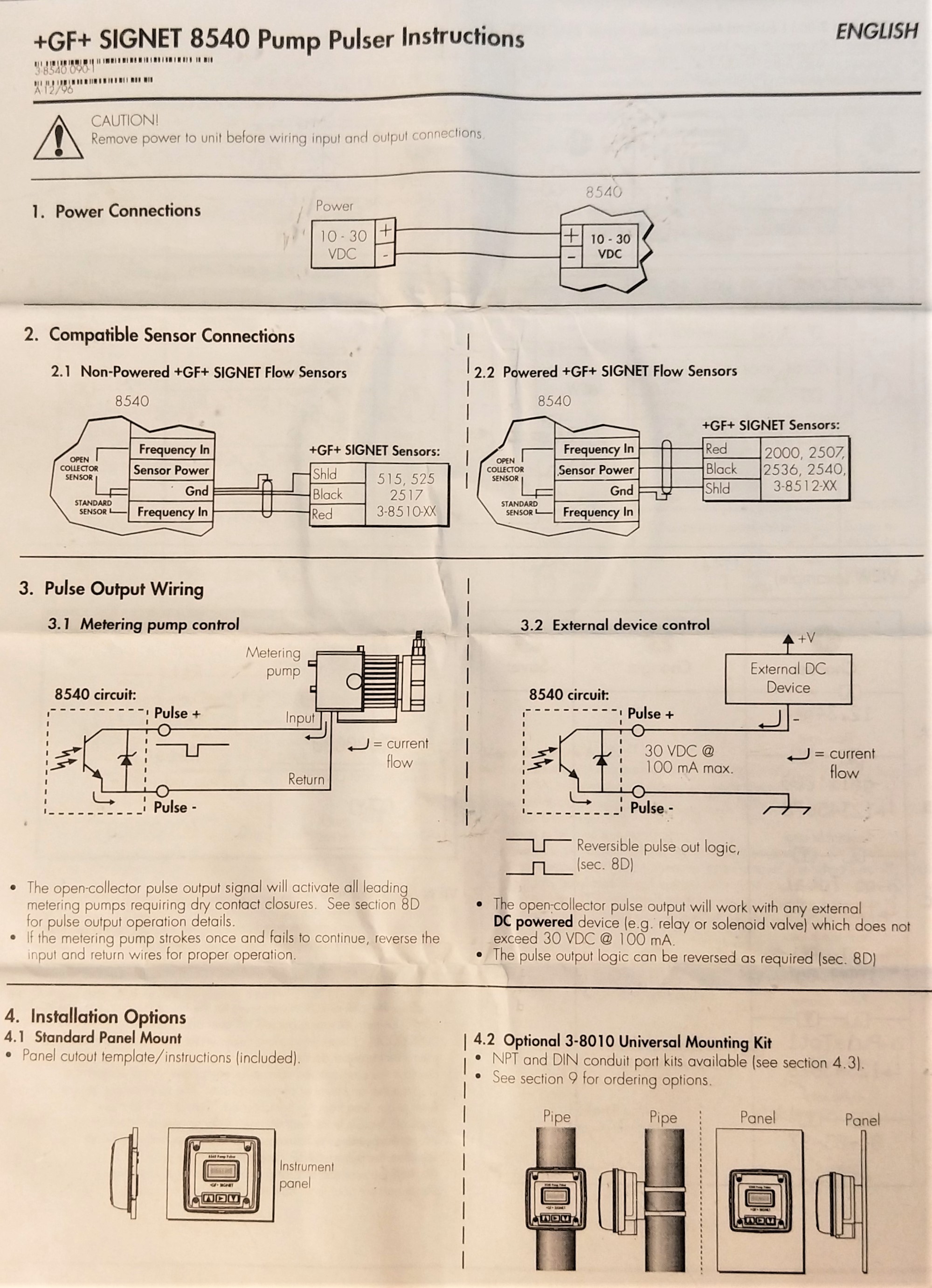

Original Package with all documentation - This unit connects to GF Signet flow sensors (and many others) that provide a pulsed output for connection to a totalizer or PLC Counter. Pulses from the sensor are converted by the 3-8540 to engineering units. ** SEE LINK TO MANUAL FOR MORE INFORMATION


General Data

Compatible Sensors: All current +GF+ Signet flow sensors (not included)

Display Accuracy: Flow, ±0.1% of reading Totalizers, ±0.03% of reading

Enclosure:

• Rating: NEMA 4X/IP65

• Material: Glass-filled polypropylene

• Gasket: Silicone rubber (captive)

• Screws: 8-32, self-tapping (captive)

Display:

• Type: 8-digit alphanumeric dot matrix

• Update rate: Flow=1s, Totalizers=100 msec.

• Contrast: Variable

• Ranges: Flow, 0.01 to 9999. Resettable/permanent totalizers, 0 to 99999999

Specifications

ManufacturerGF Signet
Model8540
ConditionNew open box
Serial Number69704218974 and 69704218979
MPN3-8540
Condition DescriptionOPEN BOX - APPEARS UN-USED
Electrical Requirements10-30VDC
Electrical Certification / ApprovalCE
Country/region of manufactureUnited States
Custom LabelS2
