Moeller xPole Distillation Breaker System with Horst HGR4L Heating Mantle (4000mL)

Moeller xPole Distillation Breaker System with Horst HGR4L Heating Mantle (4000mL)

425

Available quantity: 1

orCall 1-514-464-6144

Description

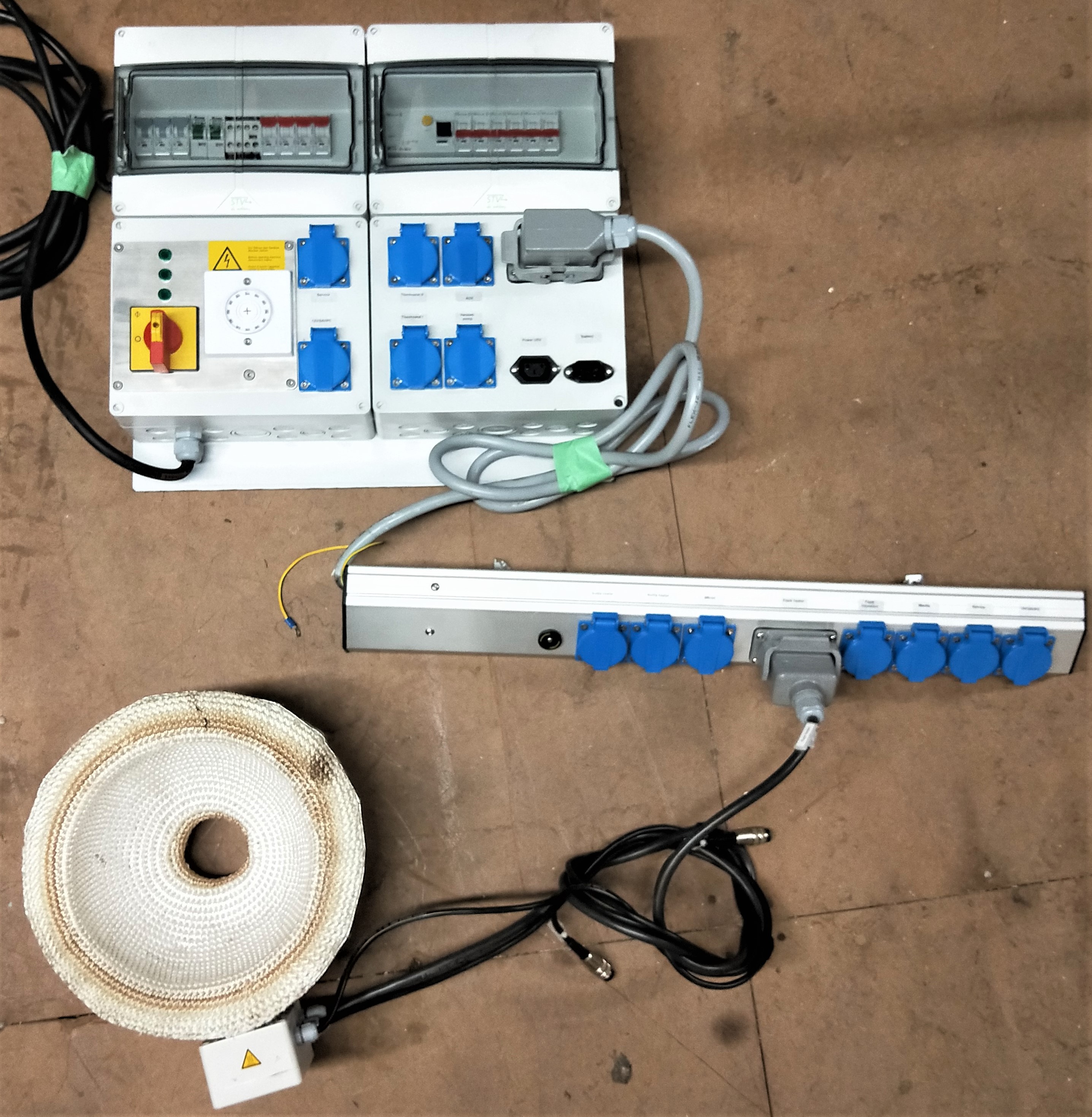

This Moeller xPole modular feeder and branch system is set-up for laboratory distillation systems. It comes as seen in photos and includes a 4L heating mantle.


The system includes a PXF-25/4/003-A switch (25A, 4 pole), ten PXL-B10/1 miniature circuit breakers (10A, 1 pole), three PXL-B16/1 miniature circuit breakers (16A, 1 pole) and two MCB-C10 miniature high performance circuit breakers (10A).


Other distillation components can be added to accommodate your desired configuration (not included).


The Horst HGR4L high-performance heating mantle is fixed with a support stand and has a maximum temperature of 450C. The heating conductor, made of flexible glass yarn, perfectly adapts to the glass flask. The heating mantle must be connected to a temperature regulating device with separate connection lines for thermocouple and heating zone. The electrical insulation is not humidity-proof and requires special safety measures during operation.

This heating mantle comes as seen in photos - with PT100 flask heater connections.

Specifications

ManufacturerMoeller and Horst
ModelxPole and HGR 4L
ConditionUsed
Serial NumberHB00031
MPNDoes not apply
Condition DescriptionIN GOOD WORKING ORDER
Capacity / Volume4000mL
Electrical Requirements230V, 1100W
Electrical Certification / ApprovalCE
Country/region of manufactureGermany
Custom LabelAA3
