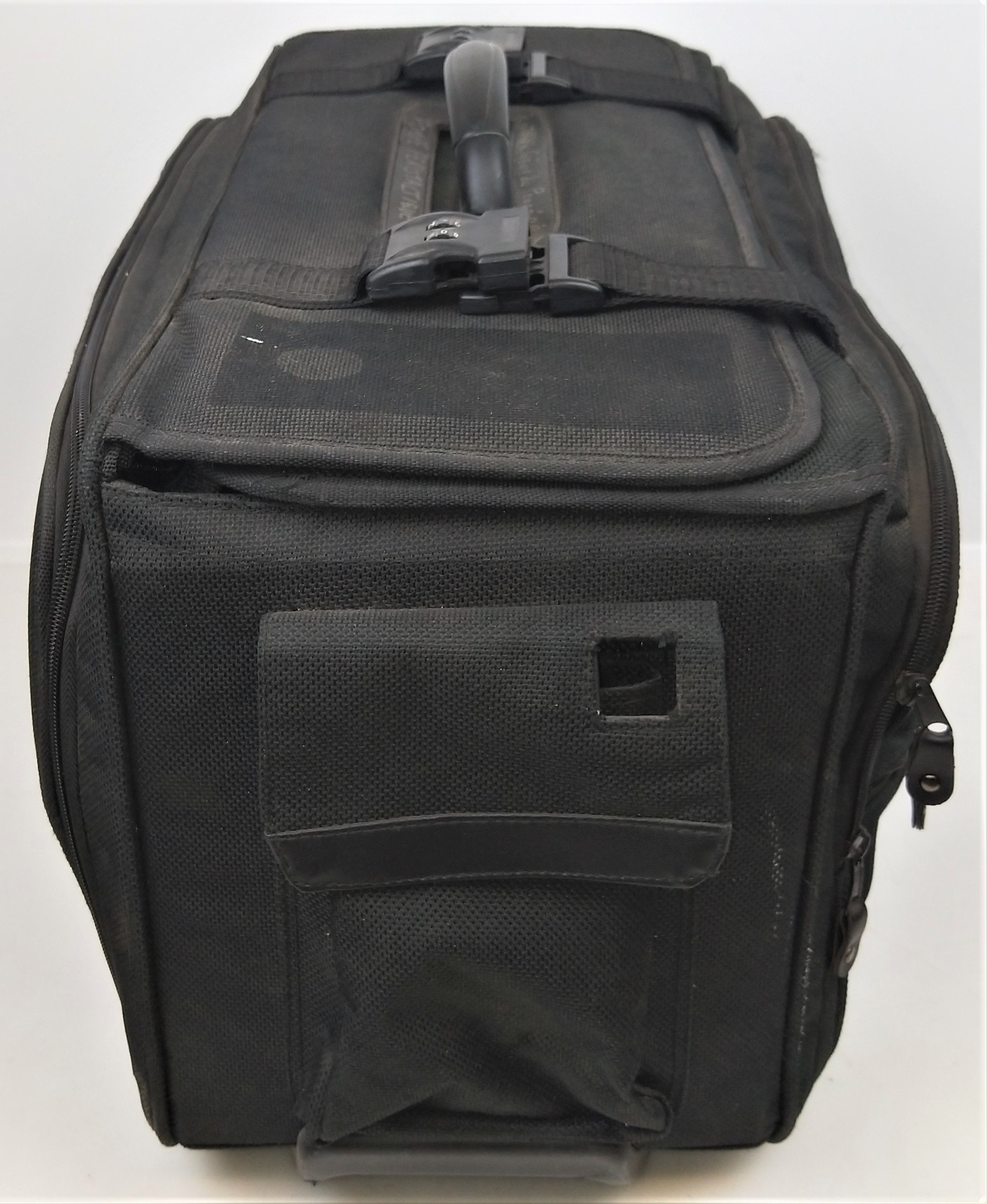

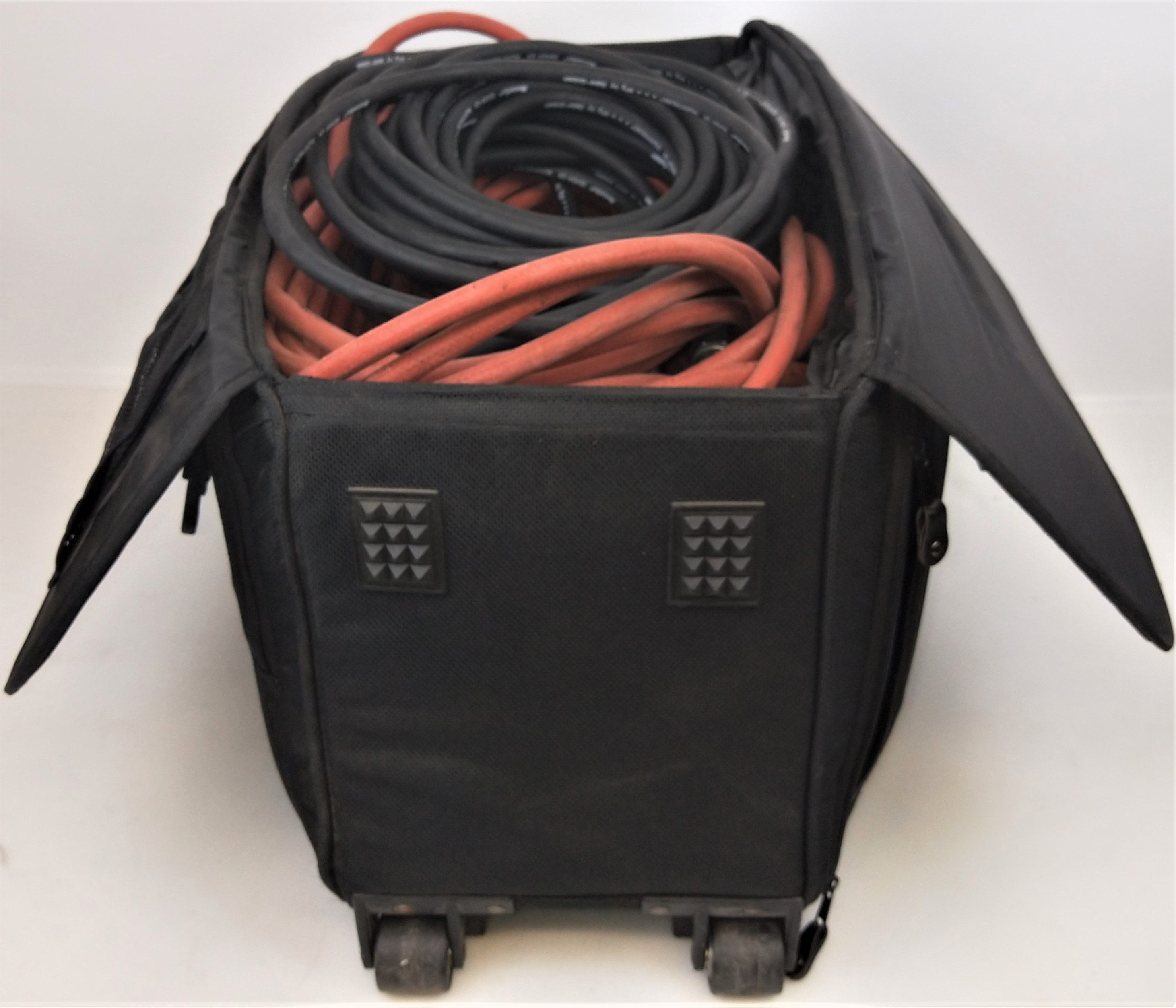

Cole-Parmer Masterflex L/S 7569-00 Air-Powered Peristaltic Pump with Pump Head, Carrying Case and Accessories

Cole-Parmer Masterflex L/S 7569-00 Air-Powered Peristaltic Pump with Pump Head, Carrying Case and Accessories

850

Available quantity: 1

orCall 1-514-464-6144

Description

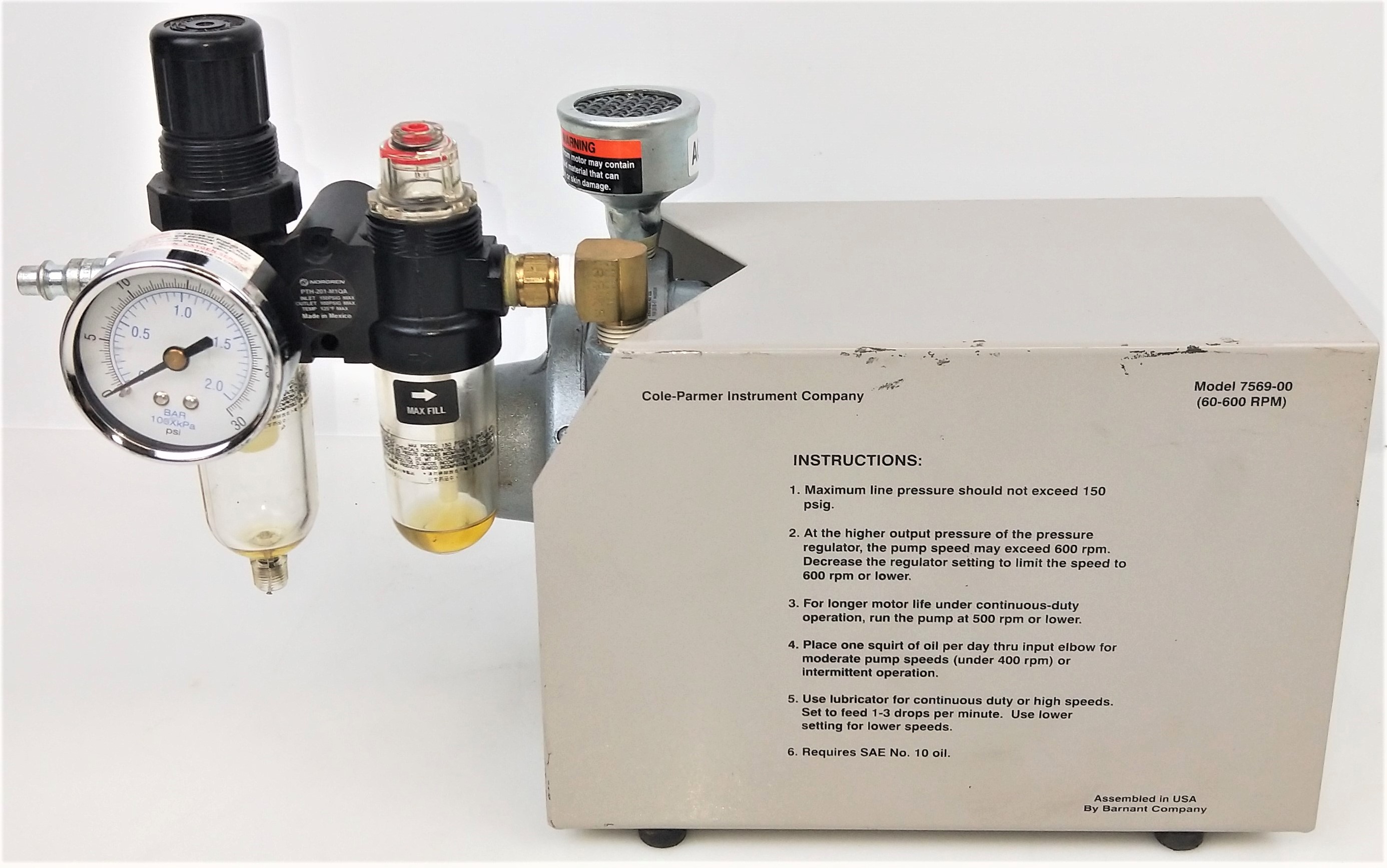

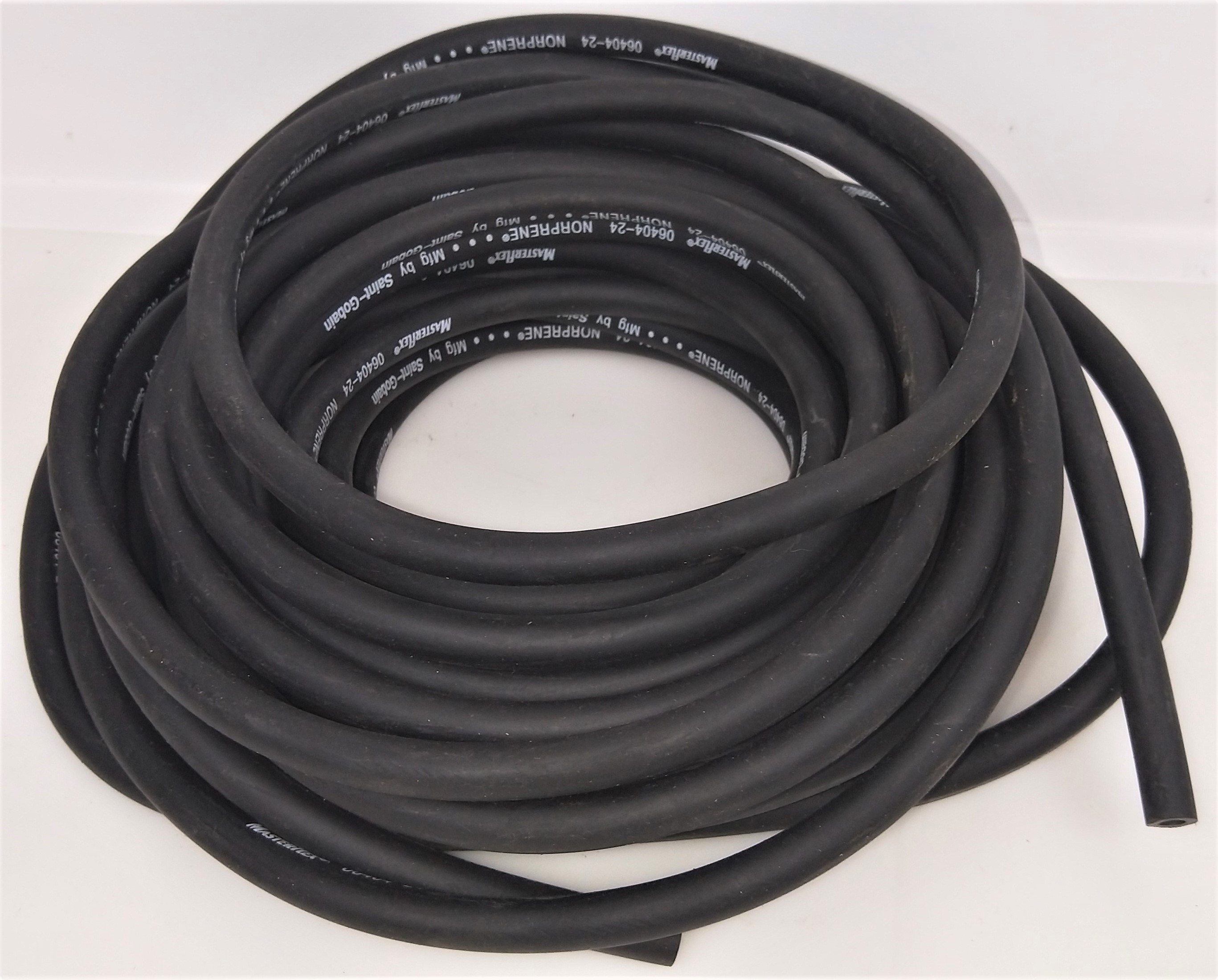

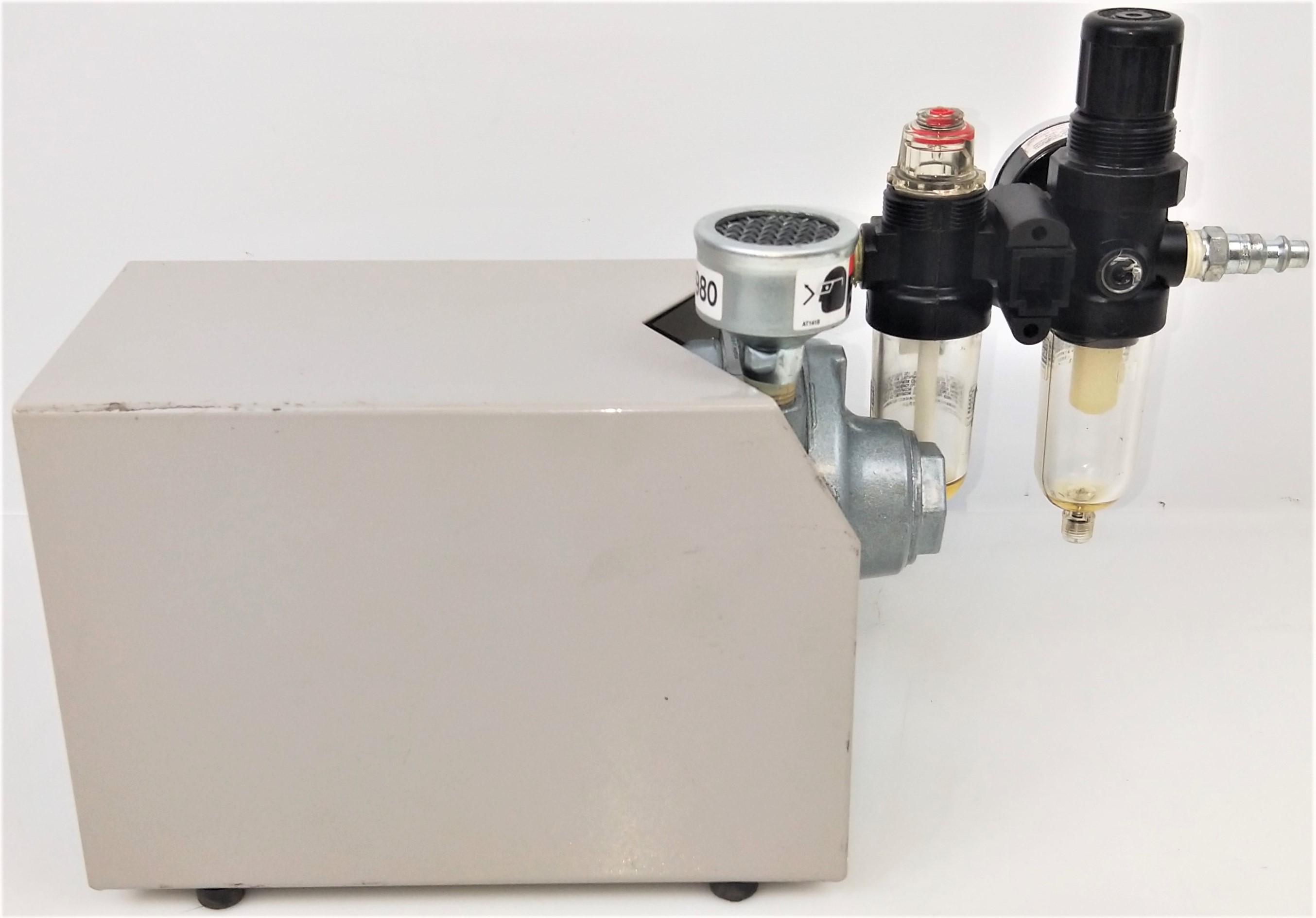

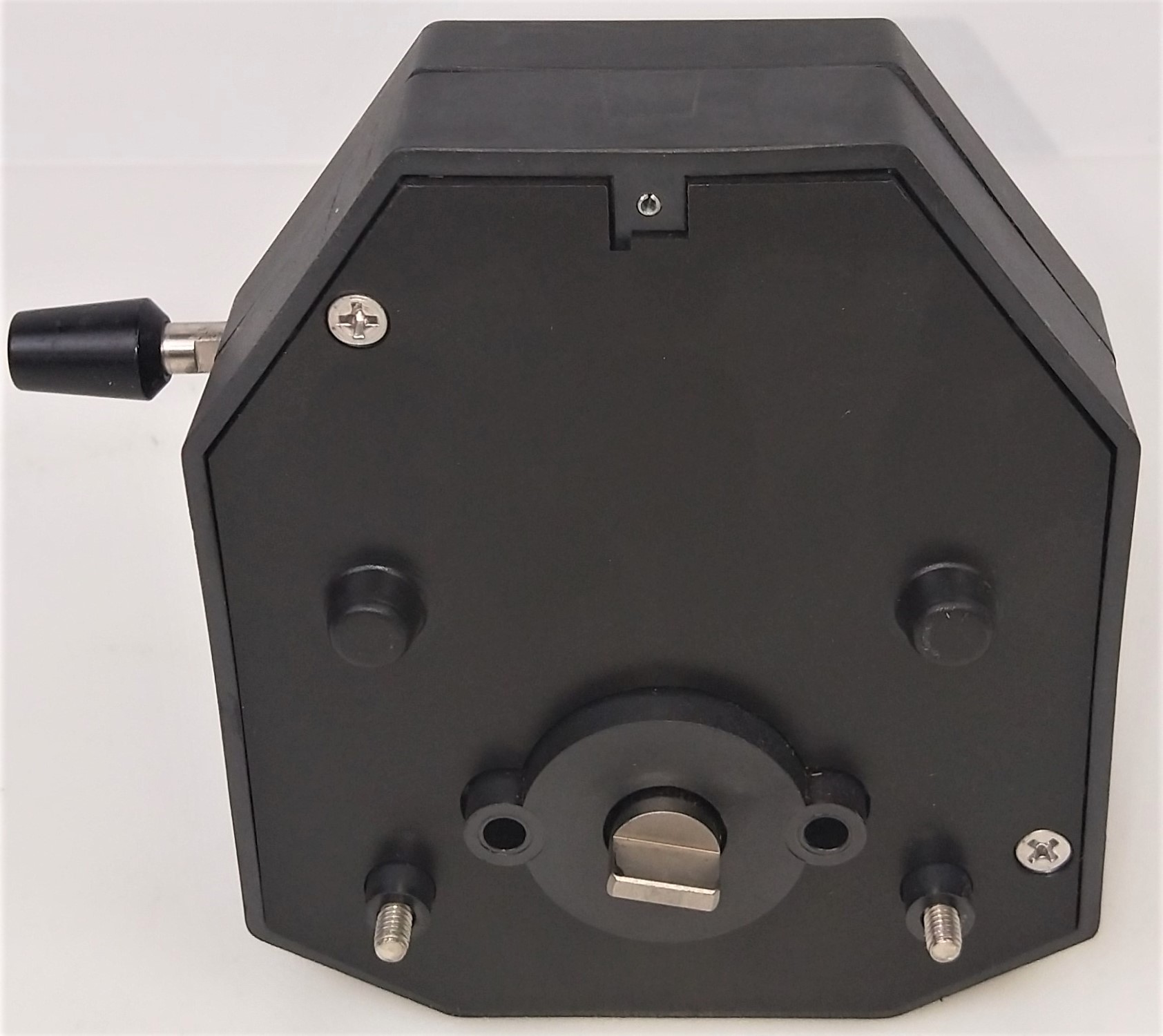

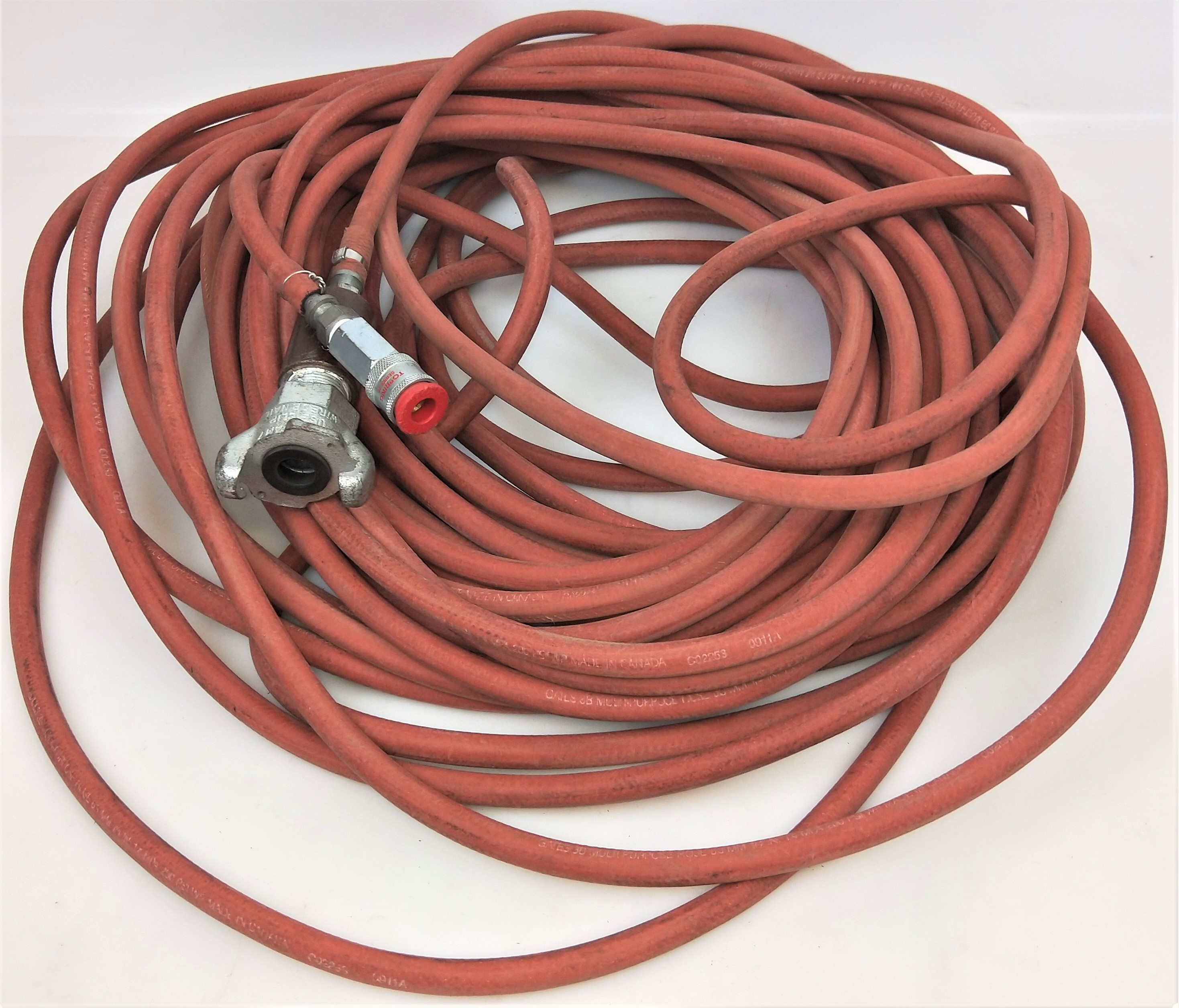

This Masterflex L/S 7569-00 air-powered pump drive includes an Easy Load II pump head model 77200-62 (for L/S 15, 24, 35, 36) and all accessories seen in photos.


SPECIFICATIONS: Output Speed: 60 to 600 rpm Control Type:  Analog Variable Speed Maximum Load: 180 oz•in (13 kg•cm) Regulation: ± 15 rpm (60 to 150 rpm) ± 20 rpm (150 to 600 rpm) Speed Control:  ±10% Max Flow Rate (mL/min):  3400 Min Flow Rate (mL/min):  3.6 No. of Pump Heads Accepted:  2 (this unit includes only one) Type of Pump Heads Accepted:  Standard, Easy-Load, Easy-Load II, Quick Load, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm Power Input: 10 cfm (0.28 m3/min) @ 150 psig (10.3 bar) Power Output: 3/4 hp (560 W) Operating Temperature: 32˚ to 104˚F (0˚ to 40˚C) Storage Temperature: 14˚ to 149˚F (–10˚ to 65˚C) Humidity (non-condensing): 10% to 90% Chemical Resistance: Exposed materials are painted CRS, brass, aluminum and plastic Enclosure Rating: NOT APPLICABLE Altitude: Less than 2000 m

Specifications

ManufacturerCole-Parmer Instruments and Gast Mfg Corp
ModelMasterflex L/S and Easy Load II
ConditionUsed

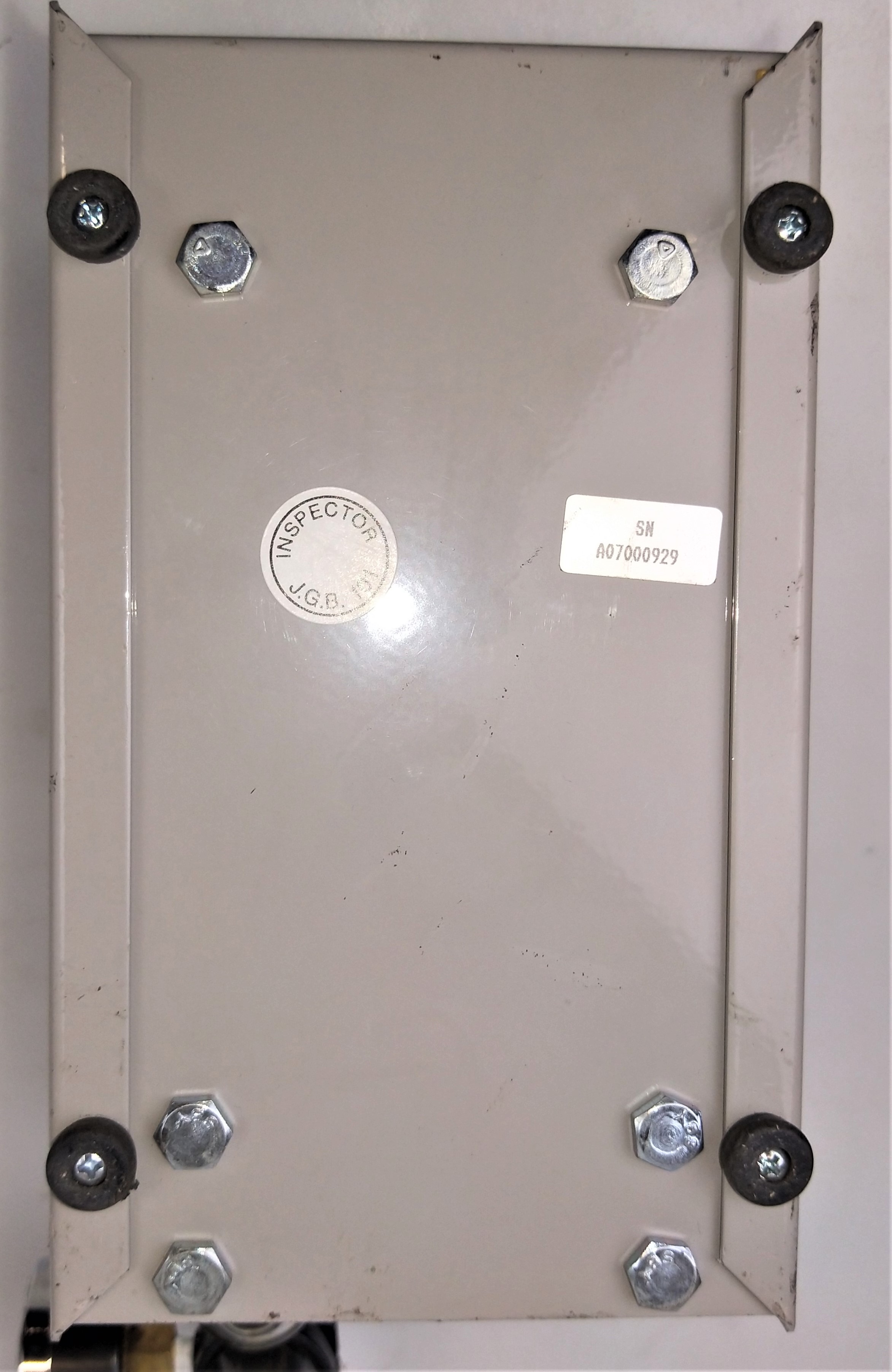

Serial NumberA07000929 and 1006201420

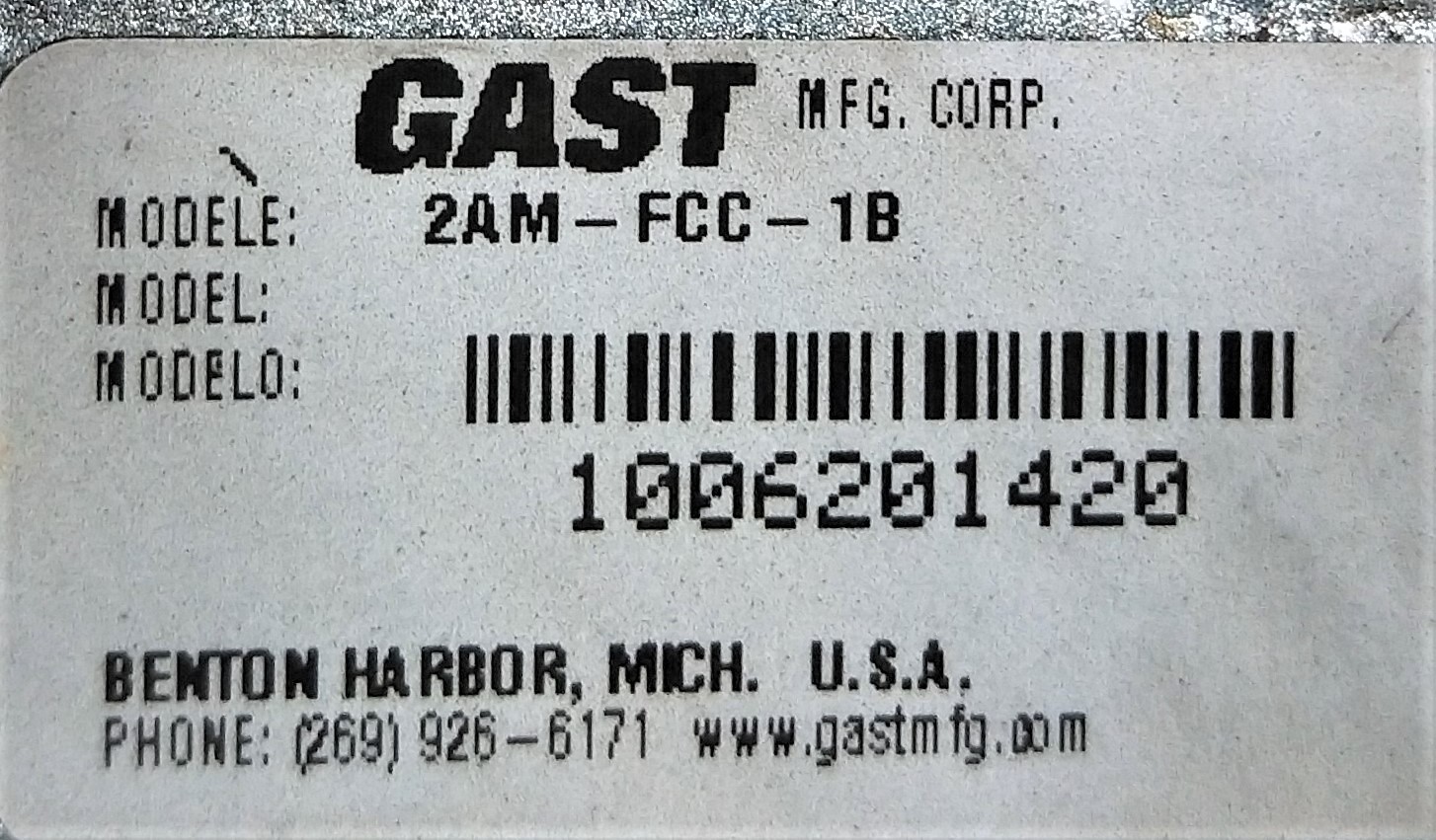

MPN7569-00, 77200-62 and 2AM-FCC-1B
Condition DescriptionIN GOOD WORKING ORDER
Speed Range (rpm)60 - 600
Electrical Requirements.
Electrical Certification / Approval.
Dimensions23"W x 14"D x 15"H
Weight (lbs)27
Country/region of manufactureUnited States
Custom LabelI1
