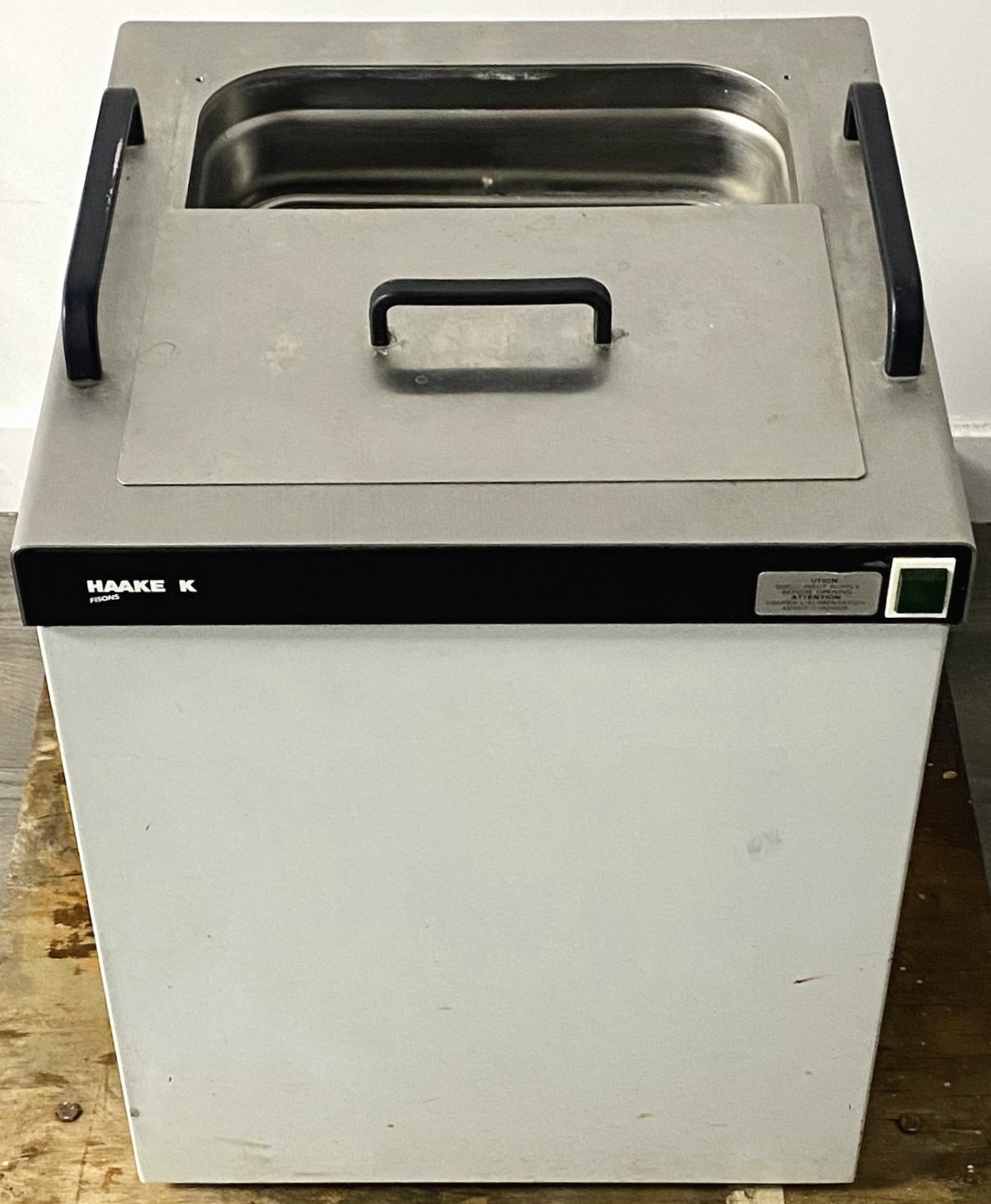

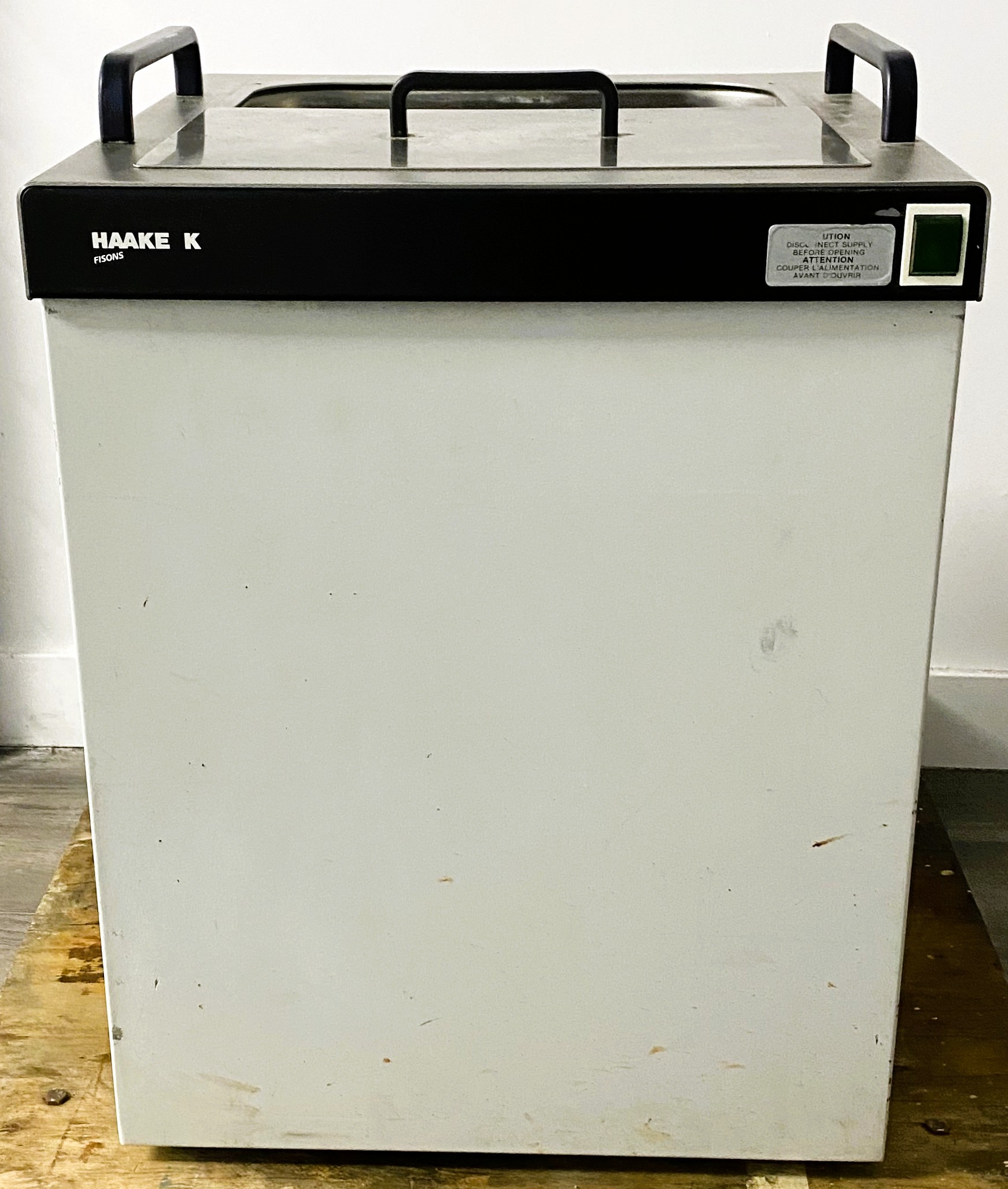

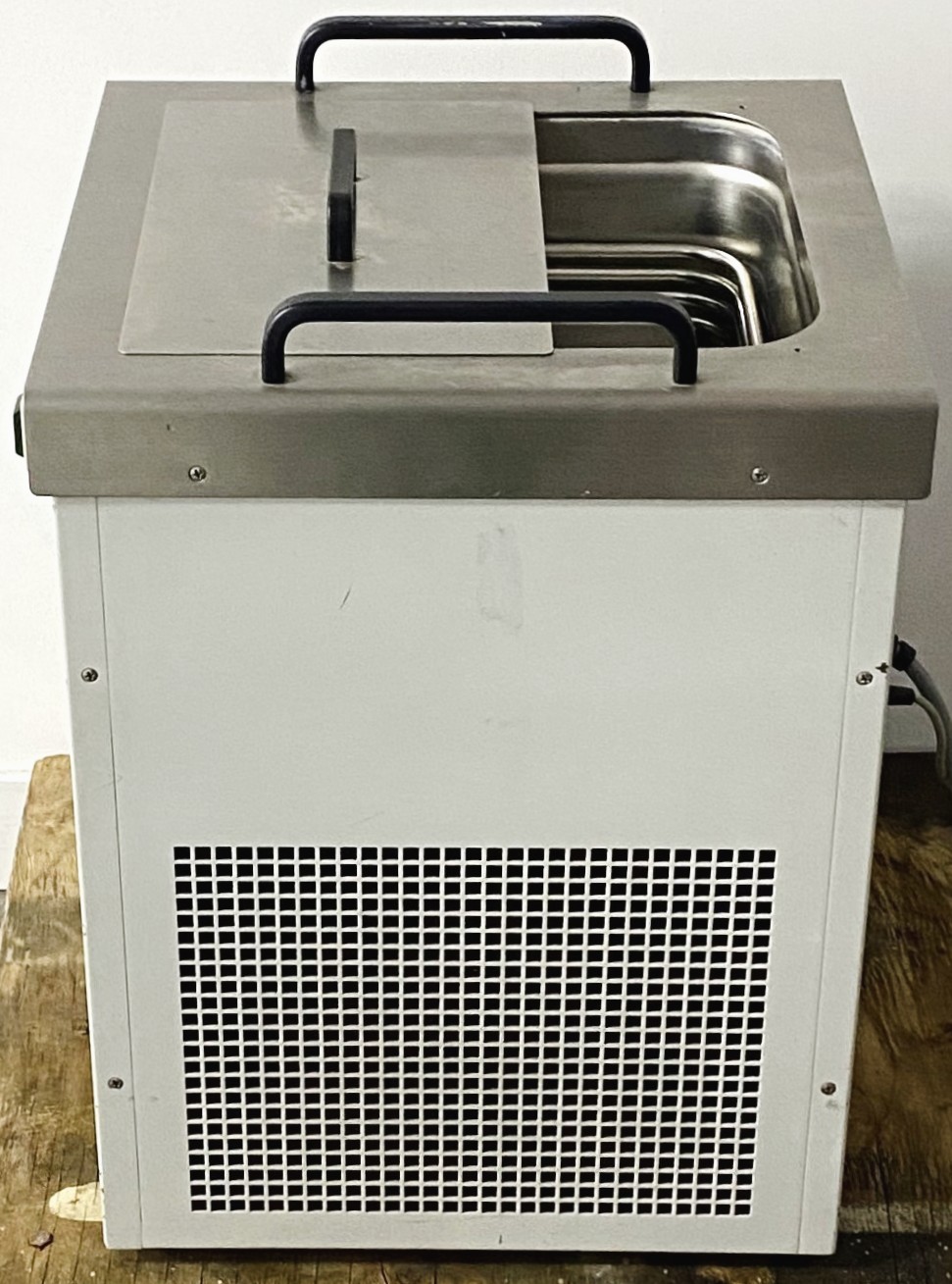

Haake K Refrigerated Bath (12L)

The Haake K refrigerated bath is a powerful, compact, and versatile system engineered to provide precise temperature control in a range of laboratory applications. The model K bath offers a broad temperature range from -40°C to 150°C, making it ideal for processes that require both cooling and heating. This robust system ensures stable thermal regulation, whether you're working with liquid samples in containers, solid samples immersed directly into the bath, or controlling the temperature of external vessels.

The Haake K bath offers outstanding performance thanks to its 2000 W heater capacity and an efficient compressor cooling system. The unit is equipped with one air-cooled compressor that provides robust cooling capacity at different temperatures: 270 W at -40°C, 380 W at -10°C, and 380 W at 20°C, ensuring rapid temperature adjustments. This efficiency allows the model K to maintain its operating range even at sub-zero temperatures, ideal for tasks requiring freezing-point control and beyond.

The Haake K bath is designed to handle a wide range of laboratory processes, offering support for open and closed external vessels. In open vessels, such as baths or containers, the thermal liquid is pumped into the vessel, sucked back, and recirculated to maintain a stable temperature. For such setups, Haake provides an optional level controller to maintain consistent liquid levels. In closed systems, the temperature-controlled liquid is pumped through jackets or heat exchangers, with the 210 mbar pressure pump and 16 L/min flow capacity ensuring efficient circulation, while the 170 mbar suction pump manages liquid recovery at 14 L/min.

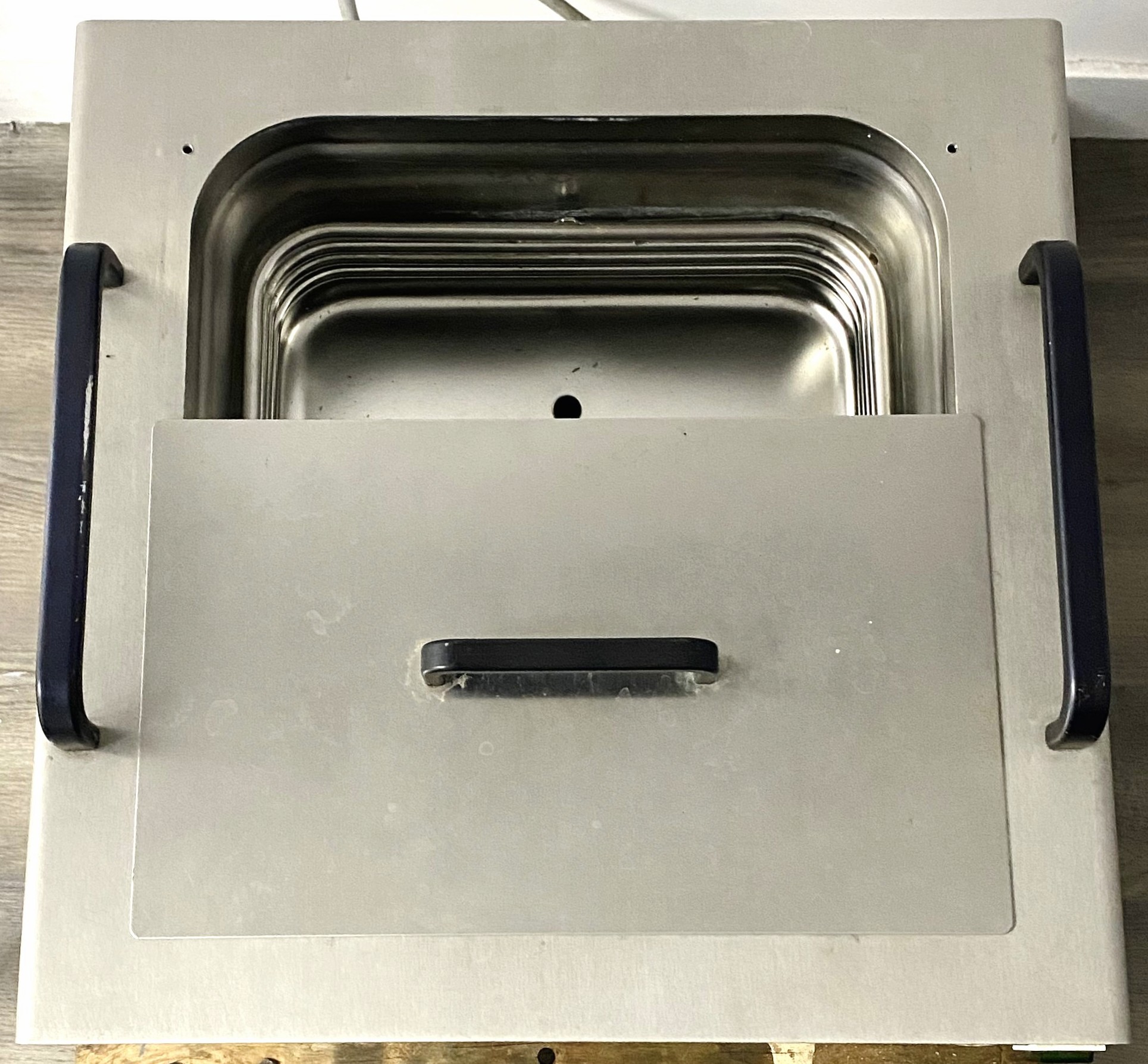

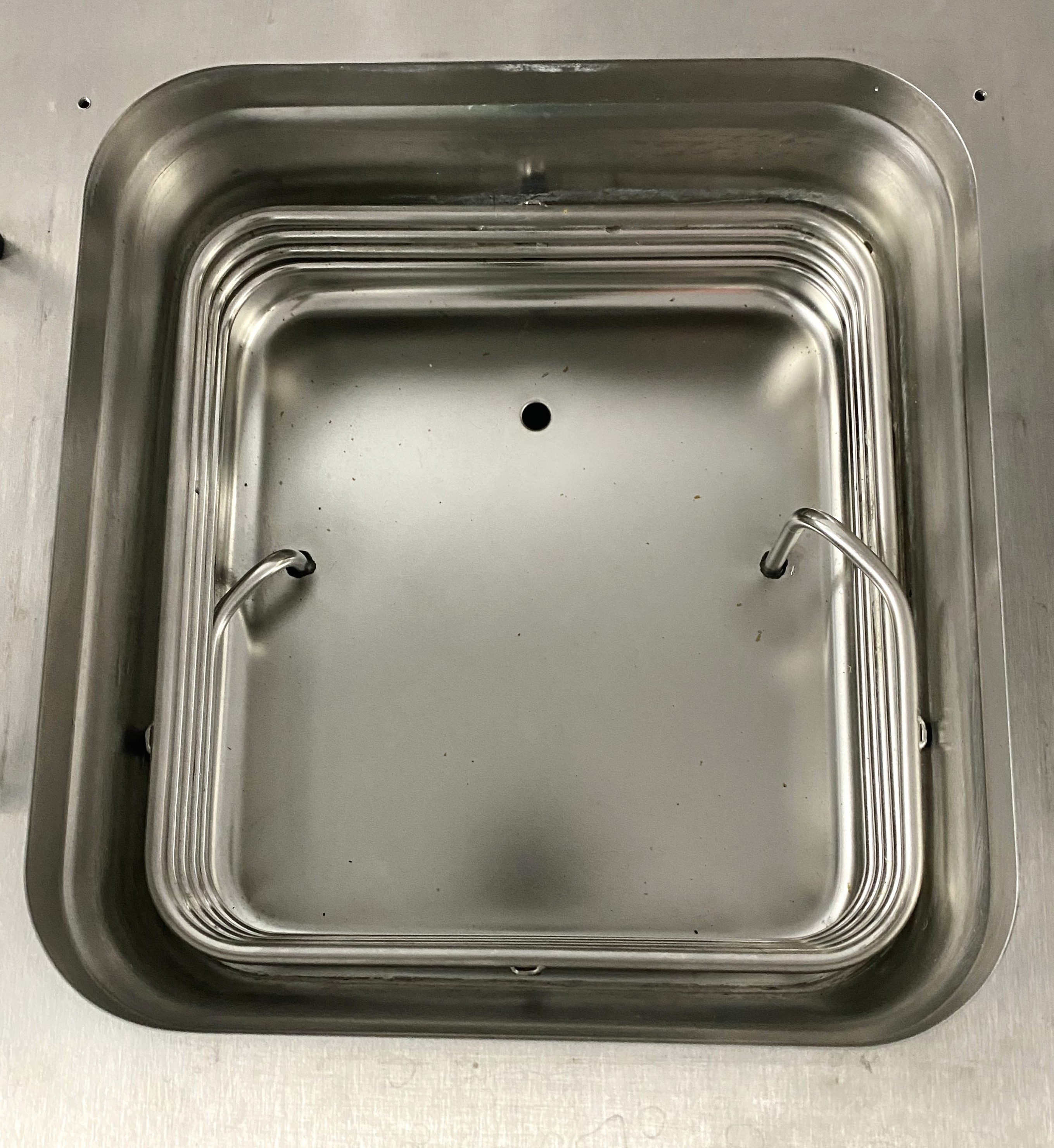

Compact and practical, the model K's dimensions are 400 x 400 x 660 mm, making it easy to integrate into most lab spaces. The bath opening measures 295 x 190 mm with a depth of 150 mm, accommodating a wide range of sample sizes with a total bath volume of 12 liters. Its weight of 45 kg ensures stability while still being manageable for positioning in the lab.

** SEE LINK TO MANUAL FOR MORE INFORMATION
