Gilson Minipuls 3 Peristaltic Pump

This Gilson Minipuls 3 peristaltic pump is in good working order and comes as seen in photos - pump head is NOT included.

Gilson's Minipuls 3 is a peristaltic pump, specifically designed to meet process laboratory liquid handling needs; for transferring fluids with a high level of speed stability and a low pulsation level. It has many applications, including the following:

• transferring solutions, emulsions, suspensions, and gases at up to 200 °C.

• propelling liquids through chromatographic systems against a back-pressure of up to 500 kPa (for example, when controlled by a Gilson fraction collector (not included).

• automation of biological analyses by proportionally mixing a sample with several reagents (flow injection analysis).

• continuously sampling the components of a production process (reactors, fermenters, and so on).

• formation of gradients (concentration, pH, and so on).

The Gilson Minipuls 3 is powered by a hybrid, high-torque stepper-motor and controlled by an integral microprocessor by using the front-panel keypad. It can also be remotely controlled from a master device, such as a PC, or by electrical contacts (not included). Chemical-resistant pump heads, equipped with 10 stainless steel rollers, set the performance standard in producing smooth, low-pulse flow and reproducible flow rates at higher pressures.

Quickly Interchangeable Pump Heads: Standard flow rates (1, 2, 4, or 8 channels)—0.3 µL/min to 30 mL/min at a maximum pressure of 0.5 MPa. High flow rates (2 or 4 channels)—1 mL/min to 220 mL/min at a maximum pressure of 0.3 MPa. Each head accepts different tubing sizes, making the multipurpose pump head an economical choice.

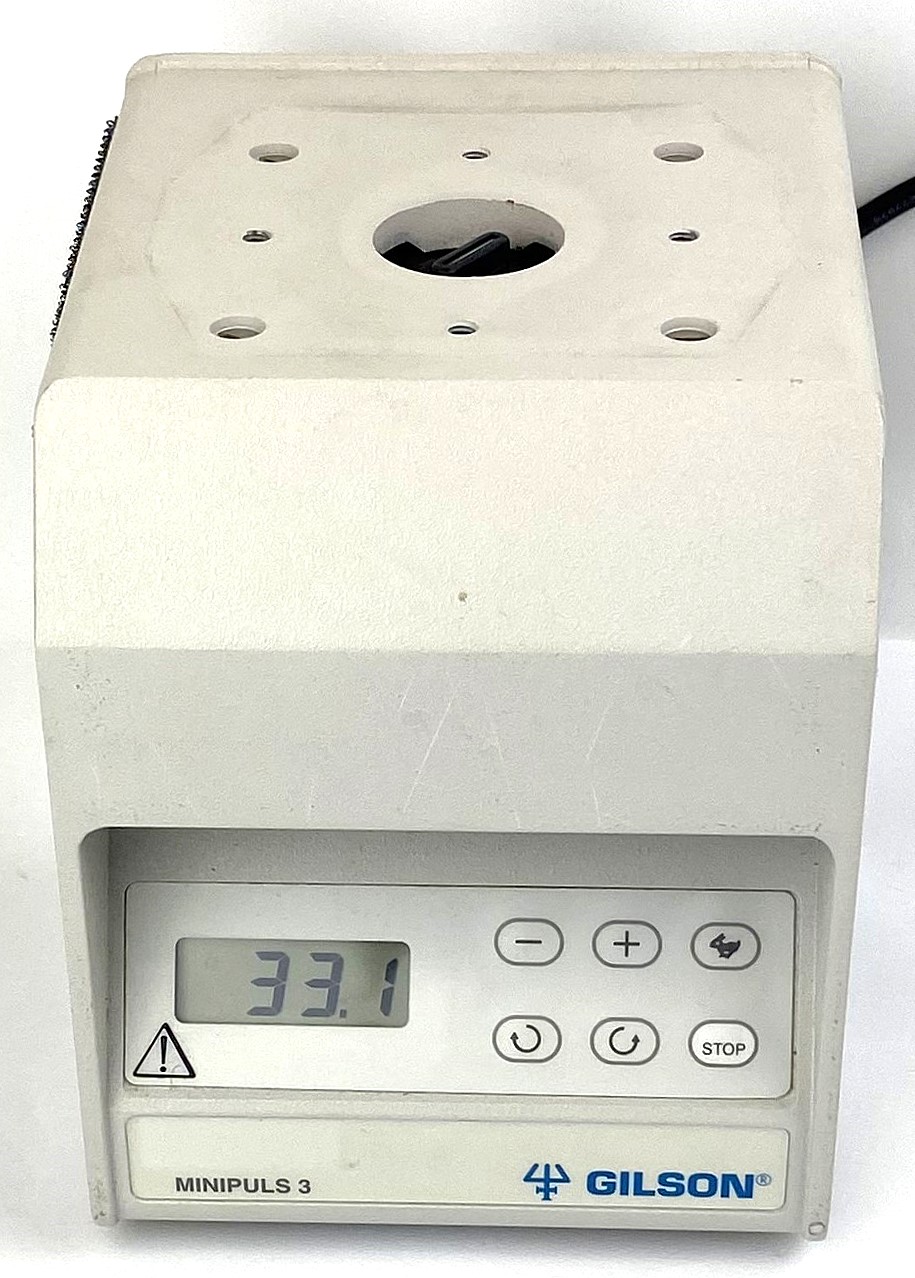

Keypad Functions: Start/Stop, Direction of Flow, Increase/Decrease Flow, Prime

Head Speeds: Adjustable from 0 to 48 rpm by increments of 0.01 rpm up to 9.99 rpm and by 0.1 rpm at above 10 rpm

Motor Speed Stability: Maximum of 0.5% for any variation of line voltage, torque, or temperature (from 0 to 40°C)

Compatibility: Easy to integrate into your existing system—control through the keypad or remotely through another device (by electrical contact or computer)

Compact Design: 15 cm x 17.5 cm x 18 cm (W x D x H); lightweight at 4 kg

** SEE LINK TO MANUAL FOR MORE INFORMATION
