Rosemount 54e PH-ORP Analyzer - Controller

Rosemount 54e PH-ORP Analyzer - Controller

275

Available quantity: 1

orCall 1-514-464-6144

Description

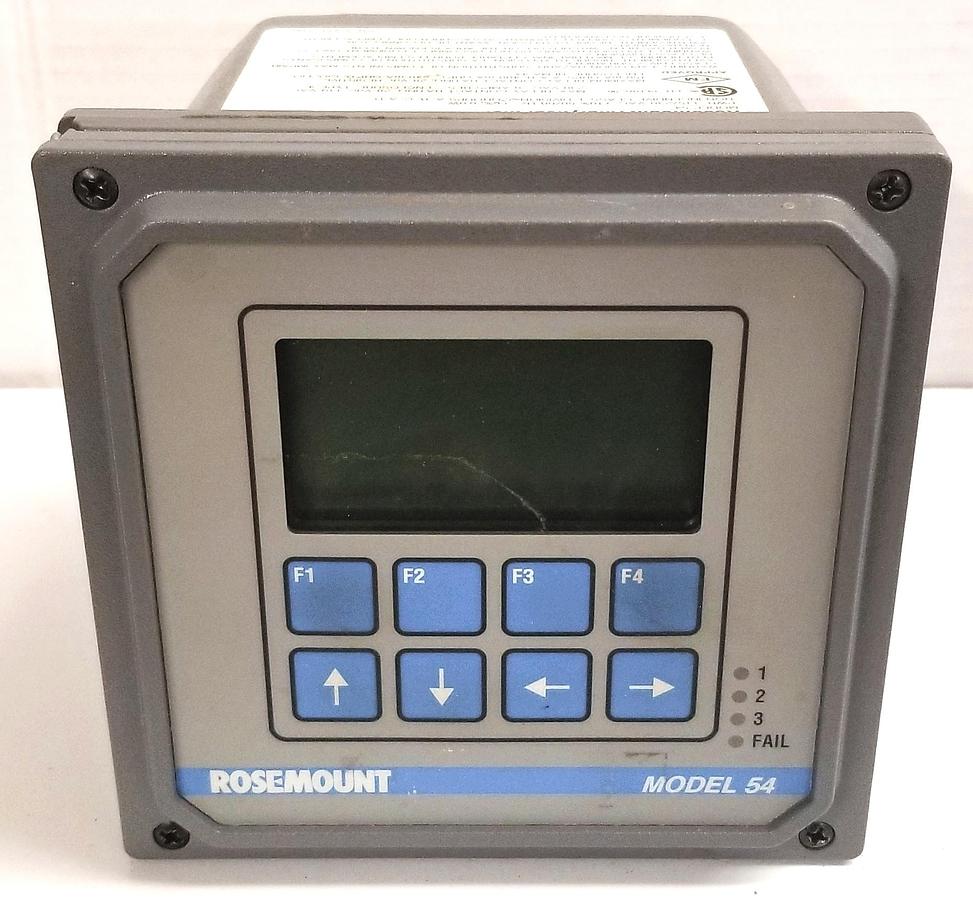

The Model 54e pH/ORP analyzer/controller monitors and controls pH in chemical processes used in many industries. The analyzer/controller is housed in a rugged NEMA 4X (IP65) weatherproof, corrosion resistant enclosure of epoxy-painted aluminum. It is suitable for panel, pipe or wall mounting. All functions are accessible through the front panel membrane keyboard that features tactile feedback. The large back-lit dot-matrix liquid crystal display continuously indicates the measured variable in large numerals, along with the temperature, output value and two programmable process parameters (such as alarms or diagnostics variables). Three levels of security are available: 1) calibration, 2) output range and alarm set point adjustment, and 3) advanced configuration. A hinged front panel provides convenient wiring access.

The Model 54e is a member of the Rosemount SMART FAMILY of instruments which is designed to communicate with the Model 275 HART hand-held communicator (NOT INCLUDED) and any other host, including AMS, that supports the 275 HART communication protocol.

Specifications

ManufacturerRosemount
ConditionUsed
Serial NumberF98-07577
MPN54e
Condition DescriptionOPEN BOX - NOT USED - PROBE NOT INCLUDED
Electrical Requirements115/230V, 50/60hZ
Electrical Certification / ApprovalCSA
Country/region of manufactureUnited States
Custom LabelV3
