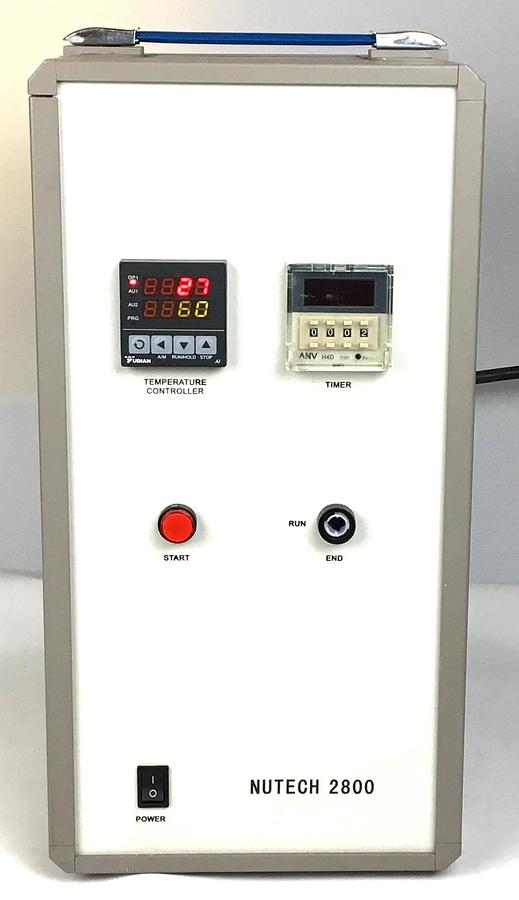

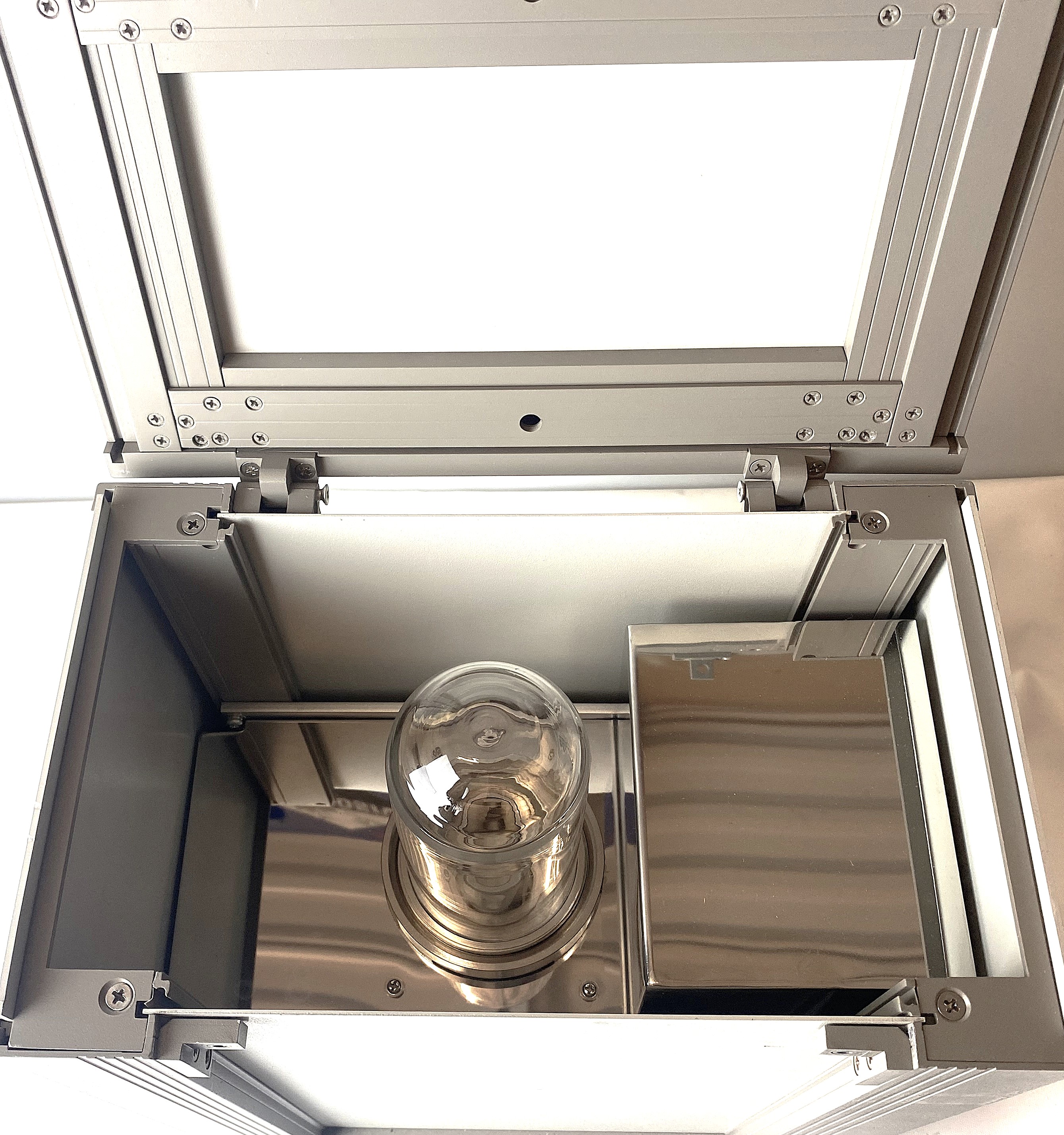

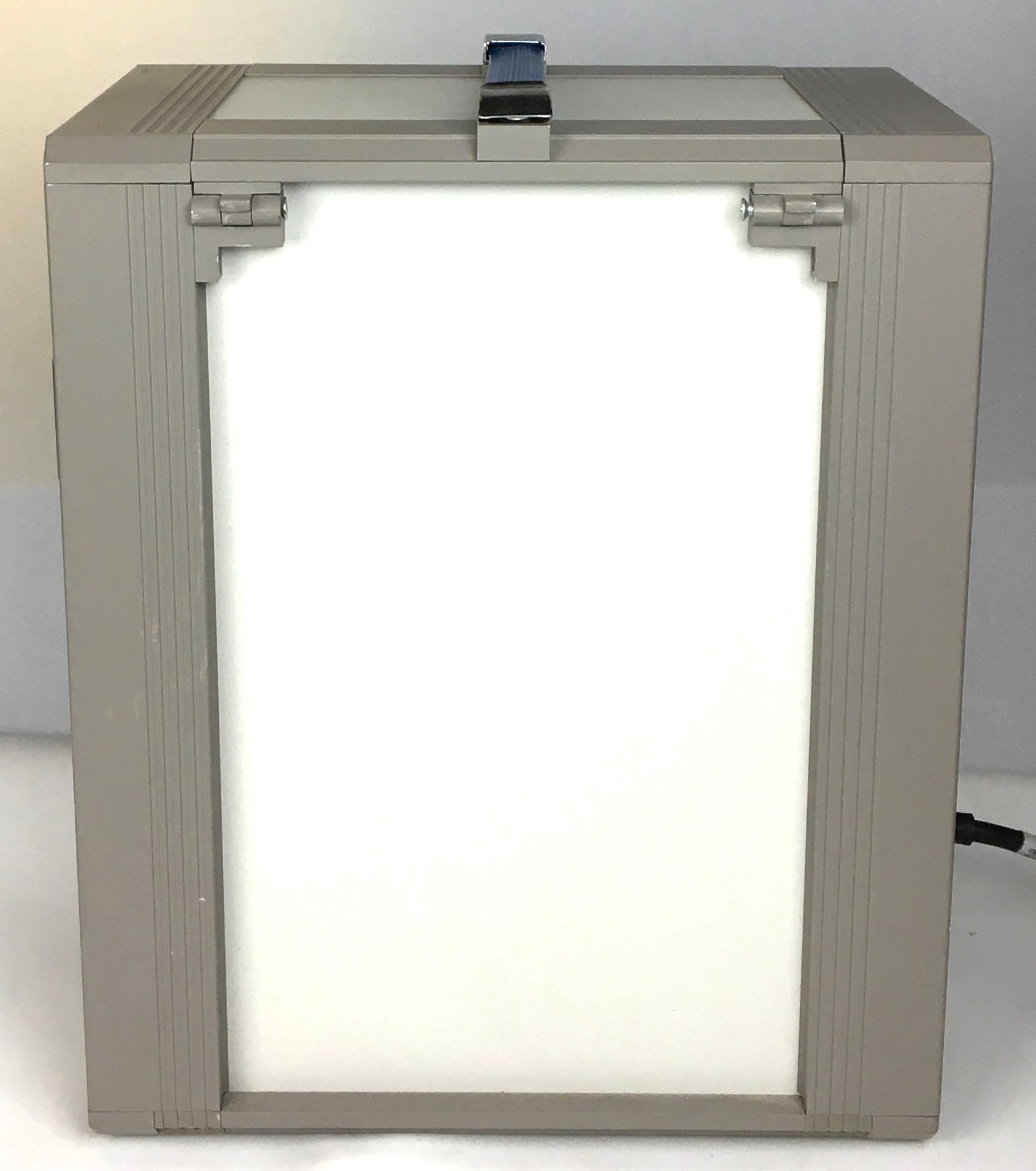

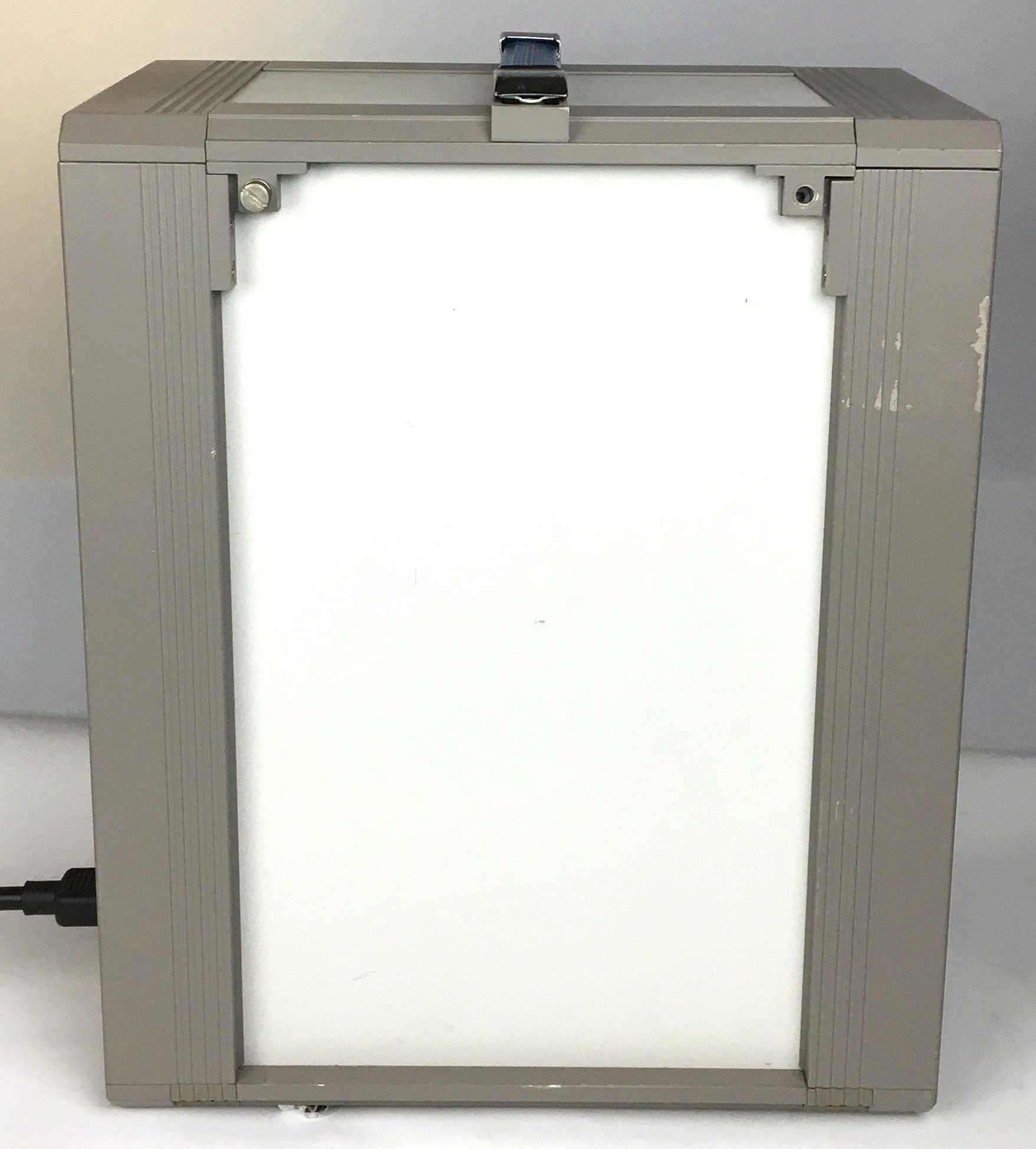

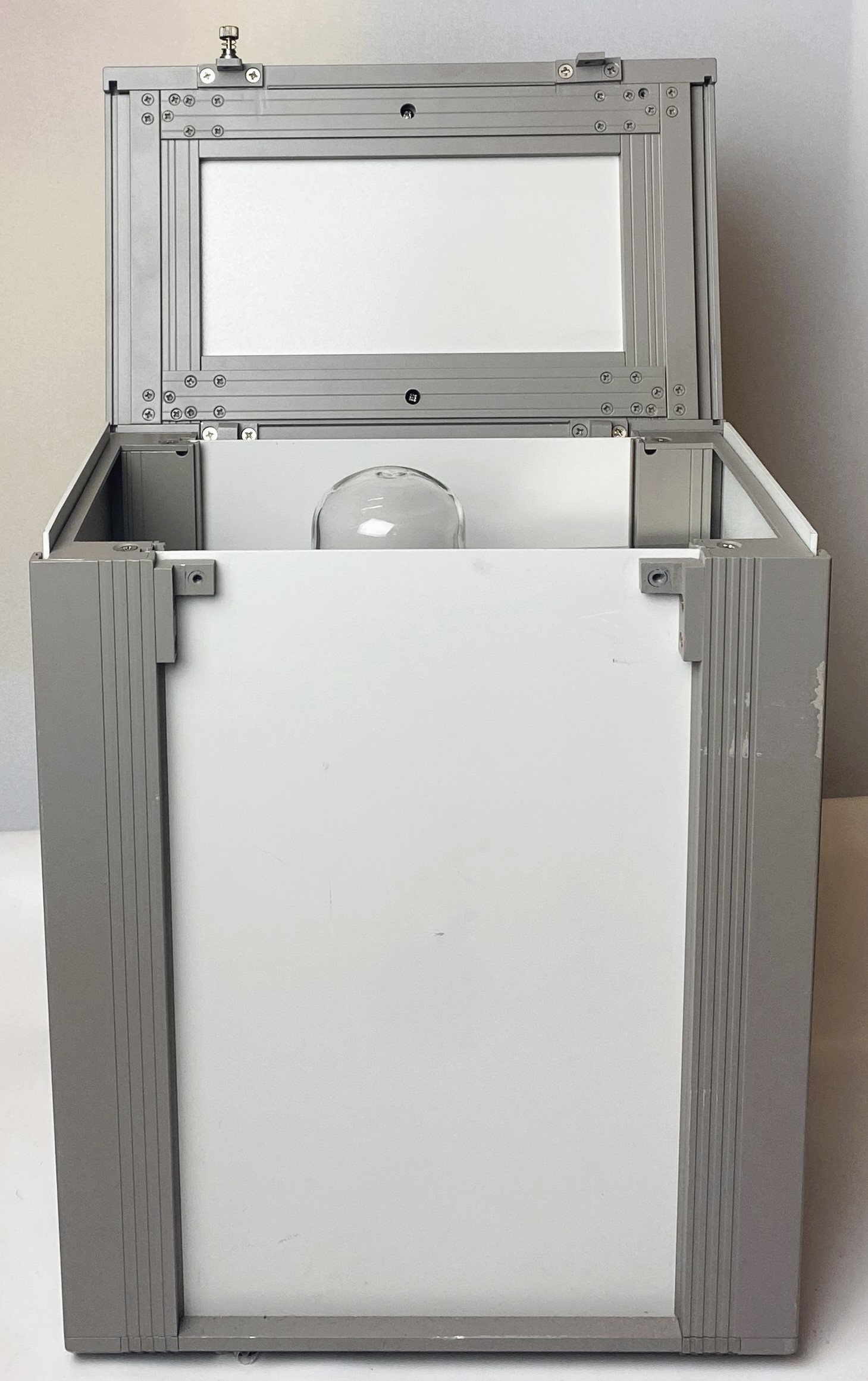

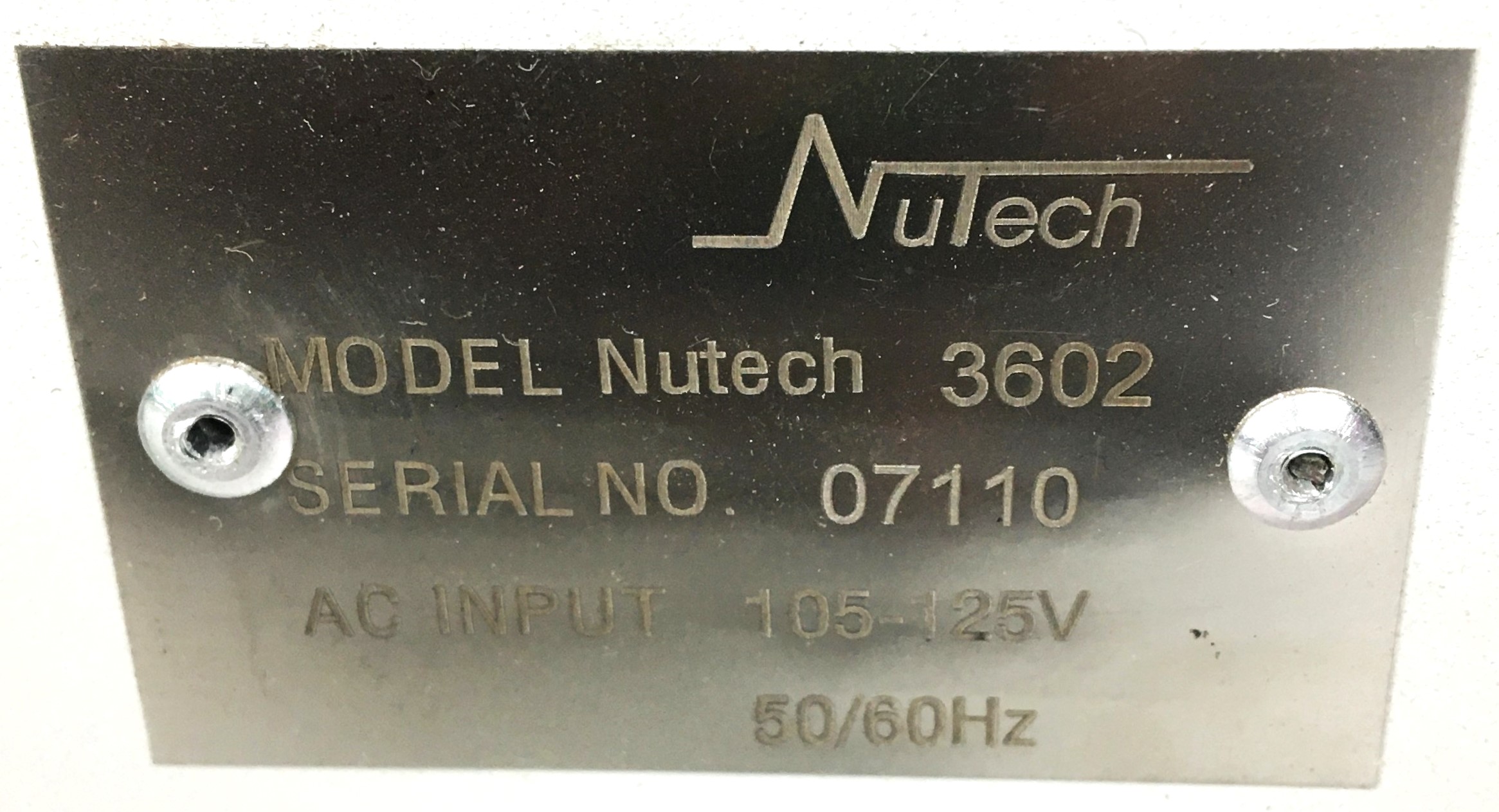

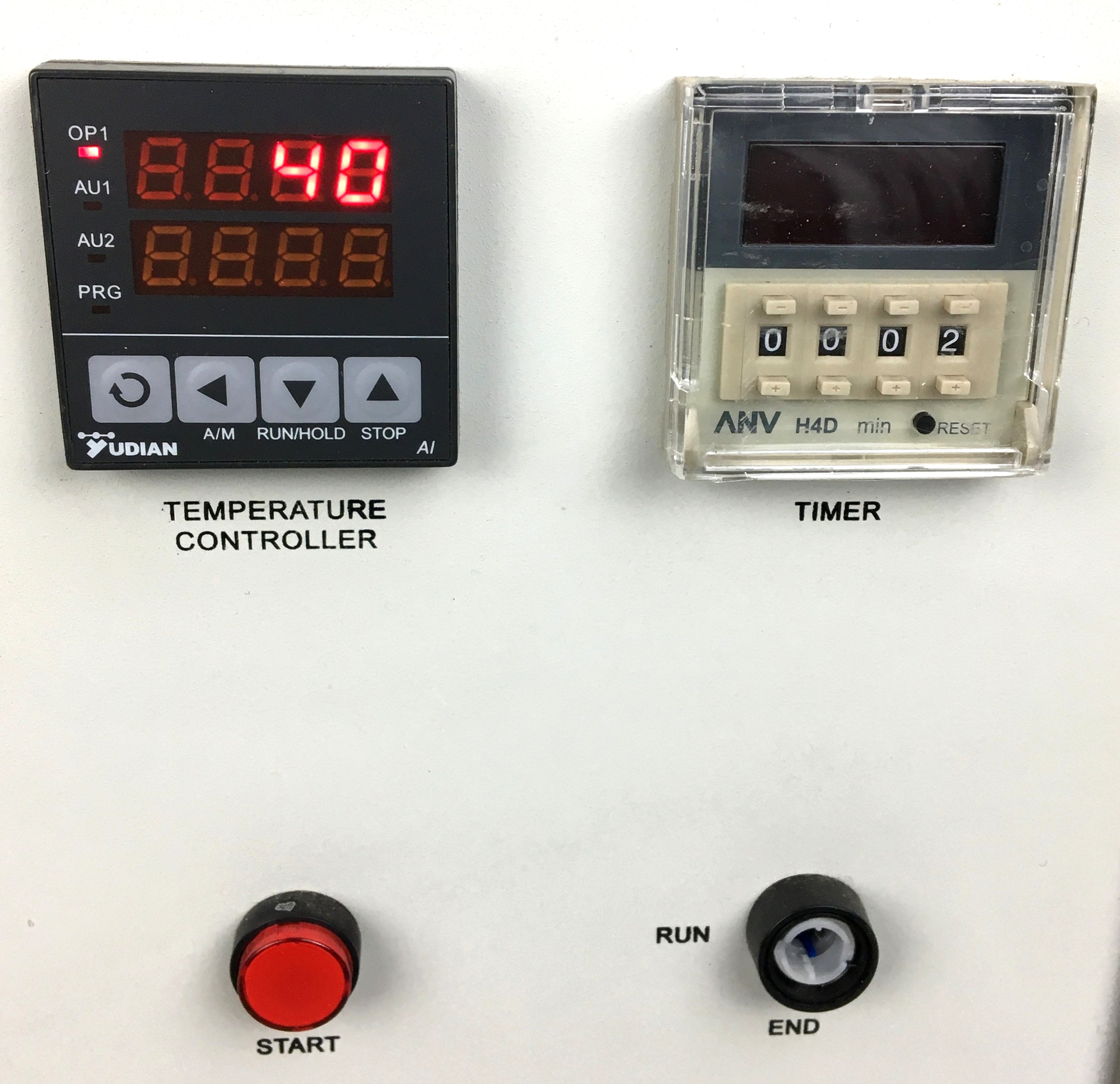

Nutech 2800-3602 Portable Headspace Autosampler

The Nutech 2800-3602 headspace autosampler is designed for handling large volume headspace samples from a liquid or solid matrix. The system is used with the Nutech 8900 for handling large volume headspace or can directly introduce the headspace gases to any GC or GCMS inlet. The Nutech 2800 headspace autosampler can be configured as a single inlet or it can utilize multi-inlets.

APPLICATIONS

Emergency response

Homeland security

Food industry and fragrance analysis

Hazardous waste sites

EPA air toxic networks

FEATURES

Large volume headspace up to 500 mL volume

Temperature controlled transfer line

Easy sample loading

Micro computer control

Both AC and DC power supply

LCD display

Carrying case for field use

SPECIFICATIONS

Headspace volume: 500 mL

Water sample vial volume: 44 mL US standard vial

Headspace temperature: Room temperature to 90°C (+/-3°C)

Heated sample line: 1/8" SS from headspace to sample outlet; 15°C to 90°C

Sample out: 1/8" Swagelok union

Set point headspace and sample line temperature: Room temperature to 90°C

Solenoid valve control sample injecting to GC

Equilibrium time: I to 300 minutes with audible when equilibrium reached

Portable case with handle

Maximum time to reach set point temperature: <30 minutes

Total power: 70W
