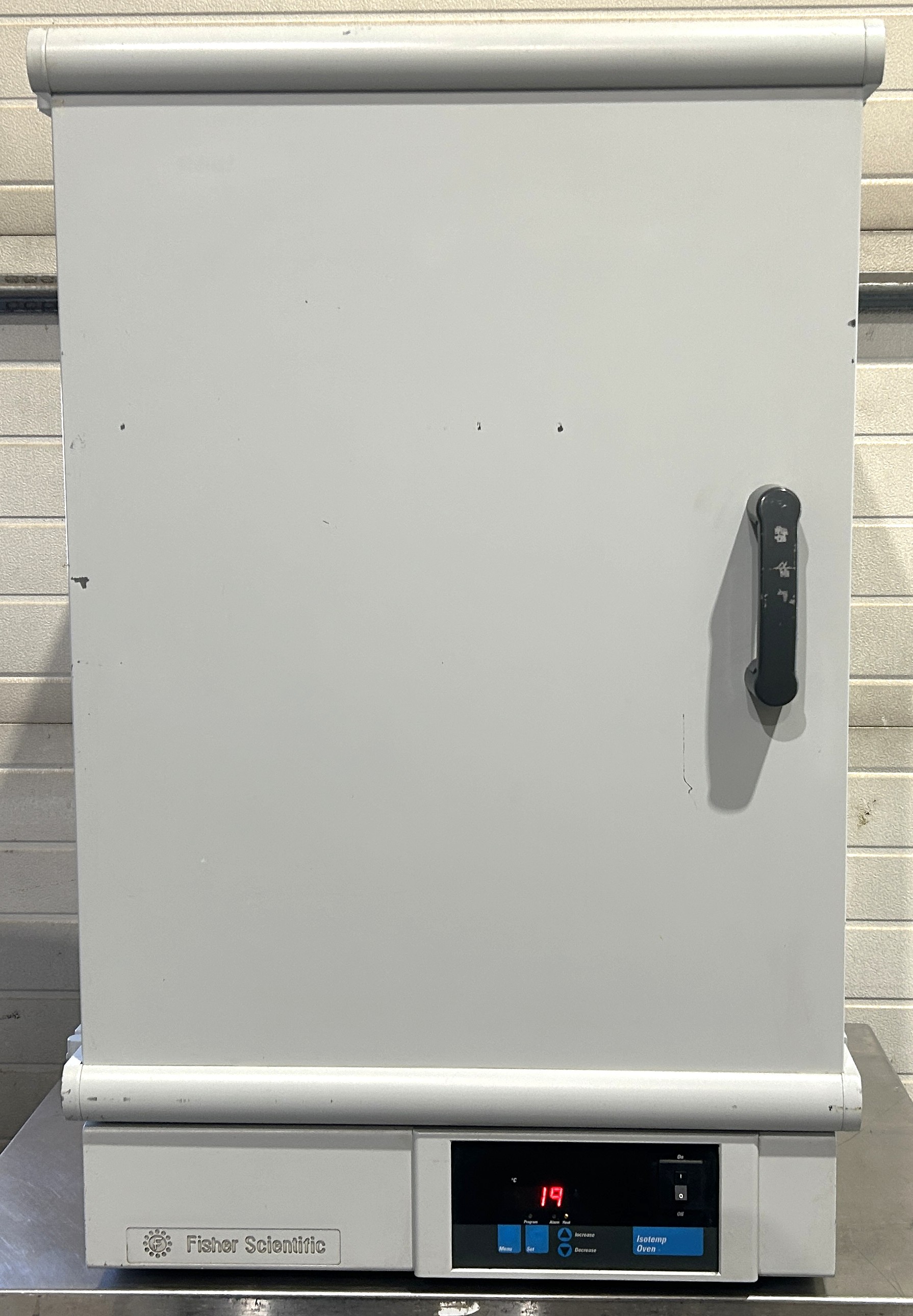

Fisher Isotemp 750F Forced-Air Oven (5 Cu-Ft)

The Fisher 750F is a mechanical convection laboratory oven with a 5.0 cubic foot chamber measuring 18”W x 18”D x 26.5”H. Mechanical convection ovens, also called forced air ovens, provide improved temperature uniformity and control along with faster drying. Air enters through an air intake on the bottom of the oven, then is heated in a plenum below the chamber. A blower circulates the heated air into the wall plenums and the oven chamber itself in uniform flow patterns. Exhaust air is vented through a port at the top of the oven.

Capacity: 5.0 cu. ft. (141.6 L)

Temperature range: 50°C to 275°C (+/-3°C temperature uniformity)

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
