GF Signet 3-5500 Flow Monitor with Certificate

GF Signet 3-5500 Flow Monitor with Certificate

Available quantity: 1

orCall 1-514-464-6144

Description

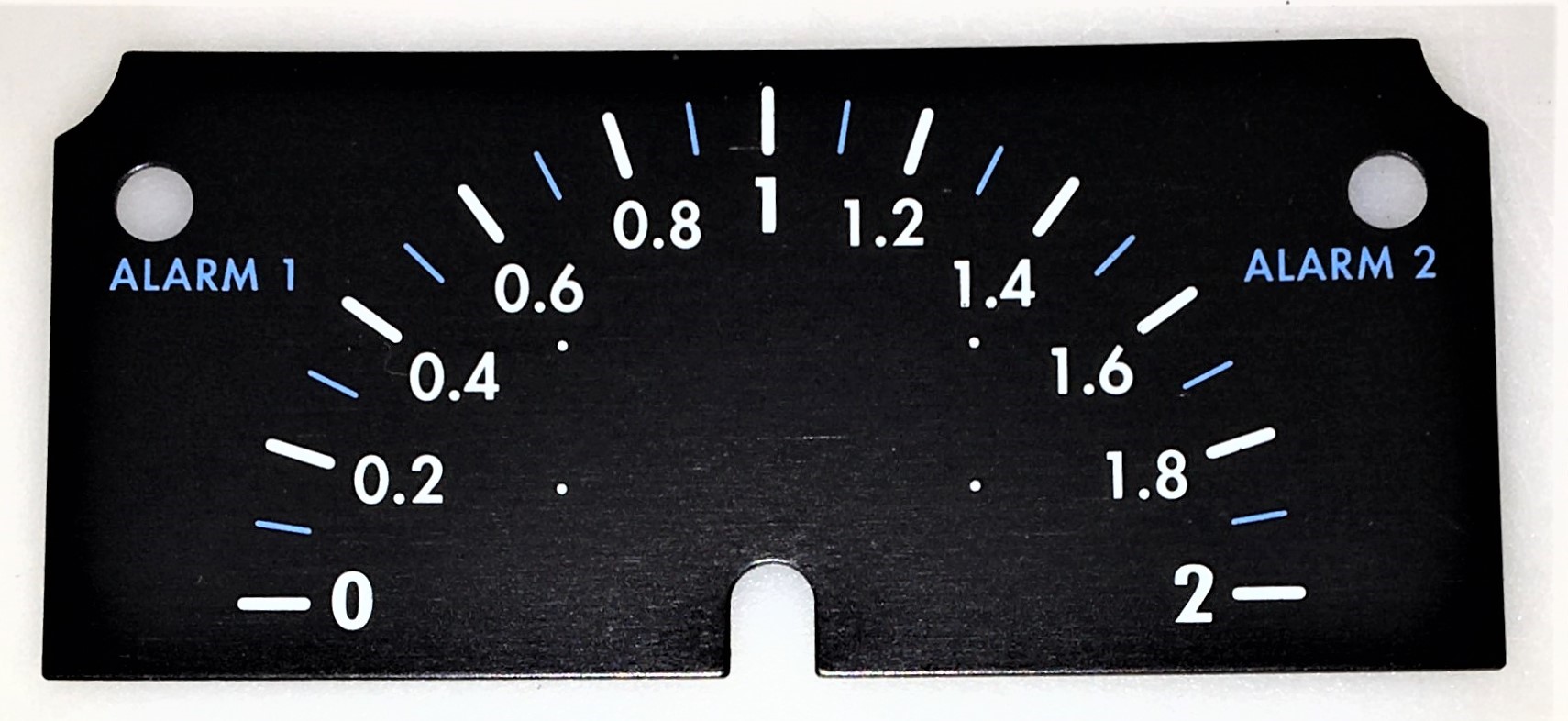

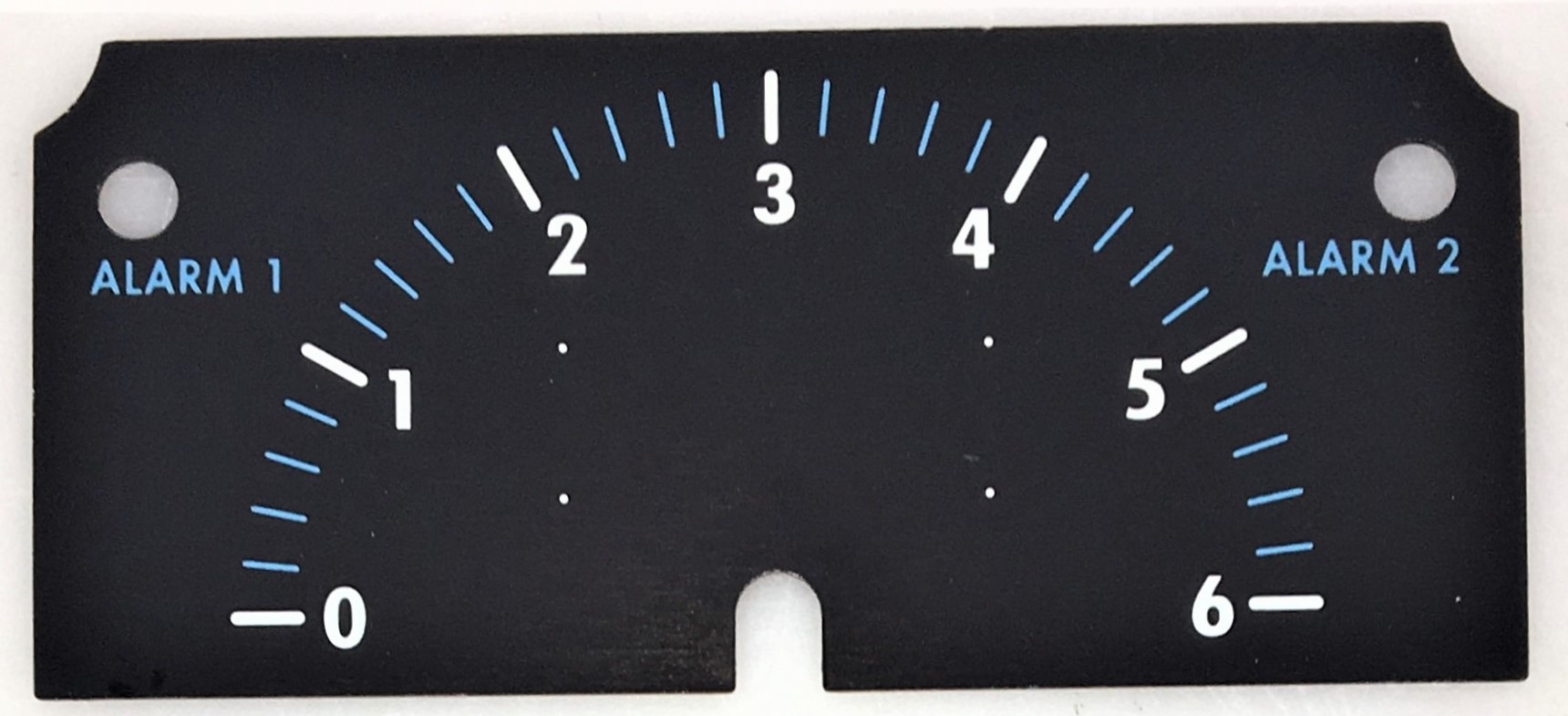

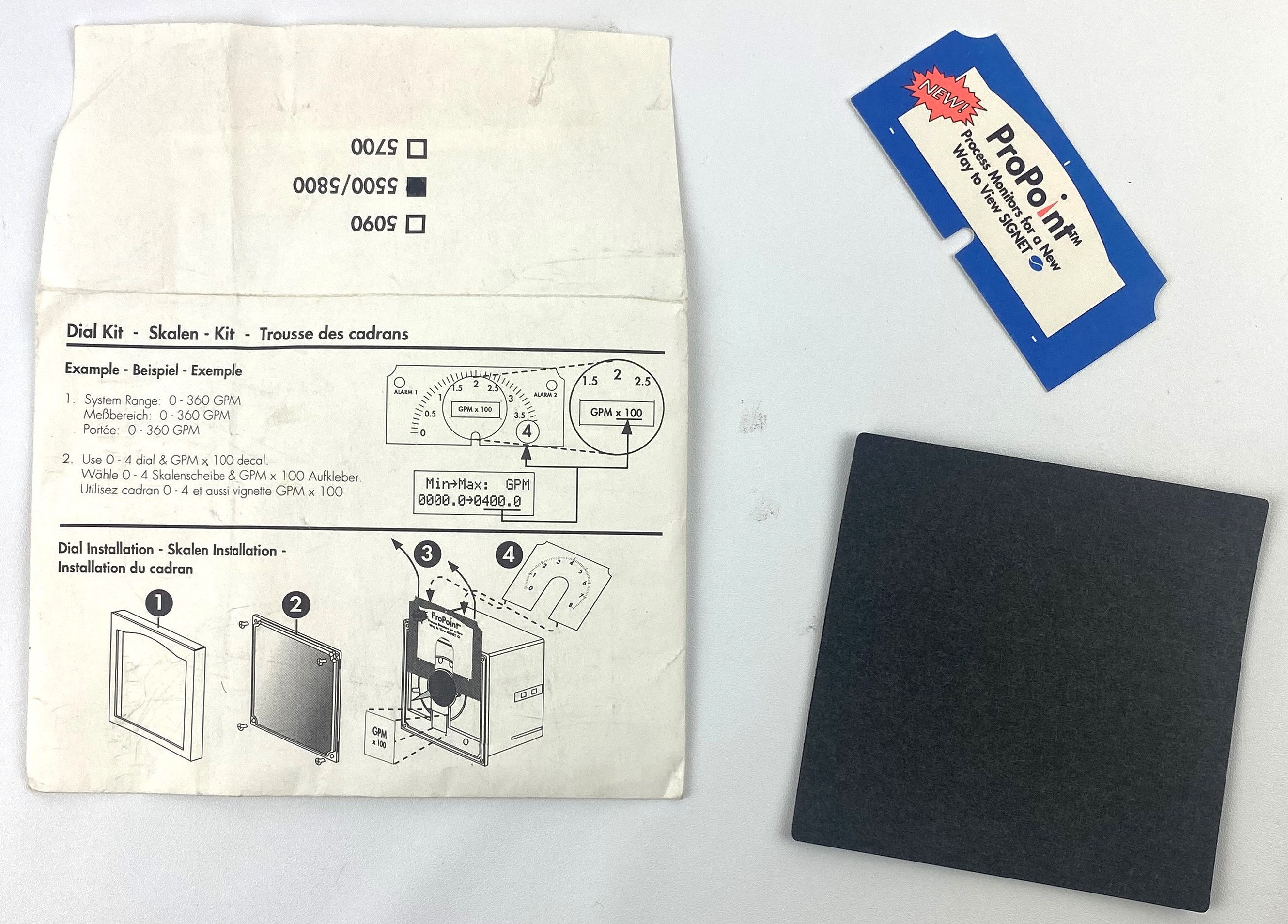

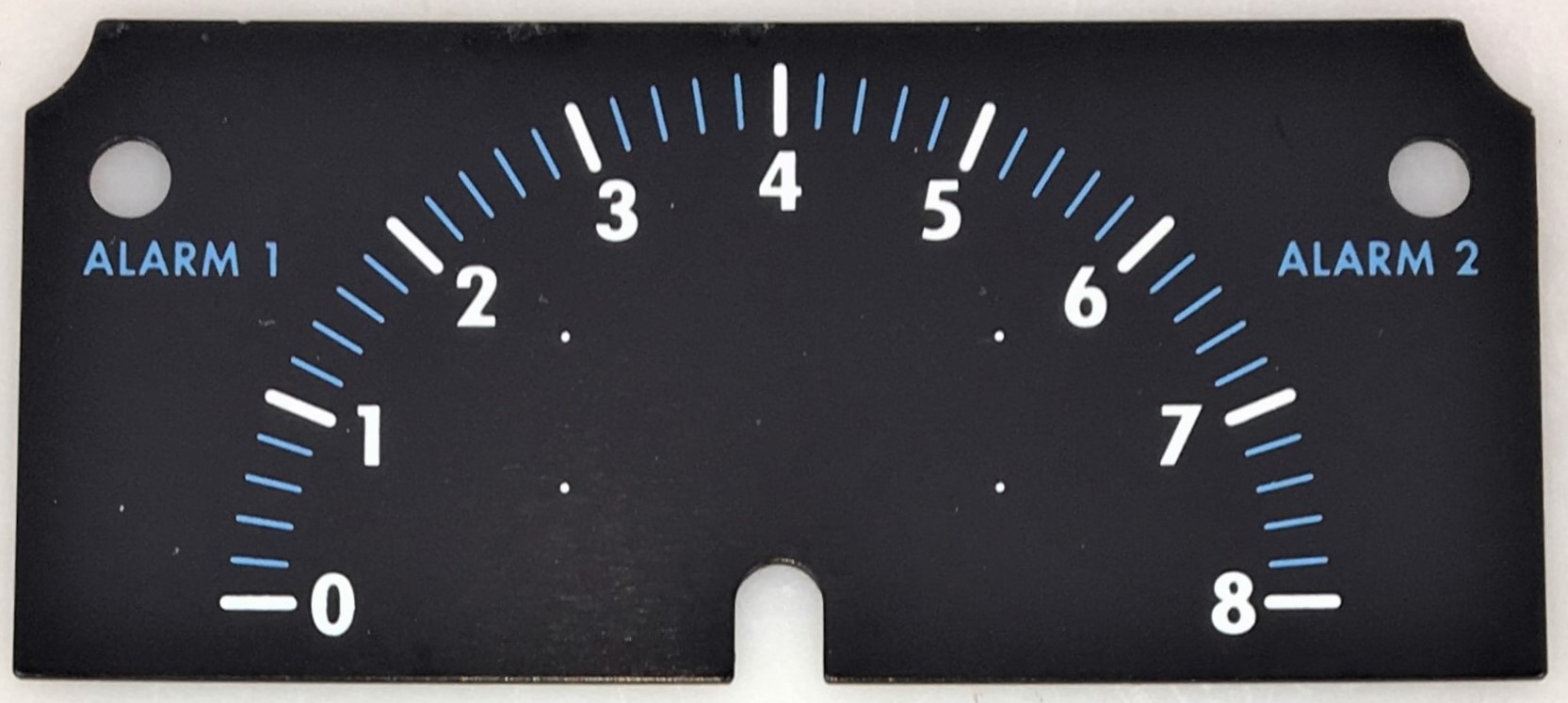

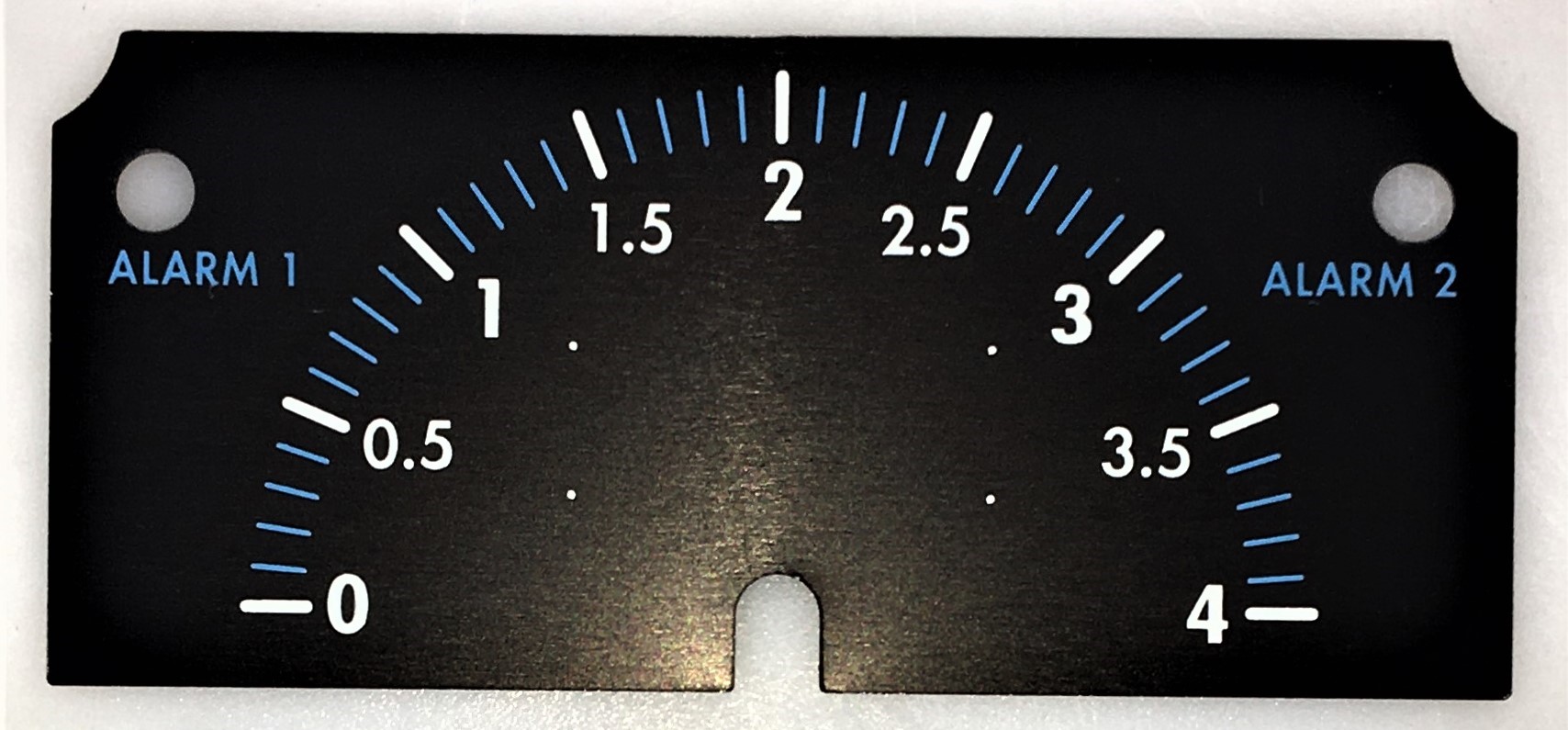

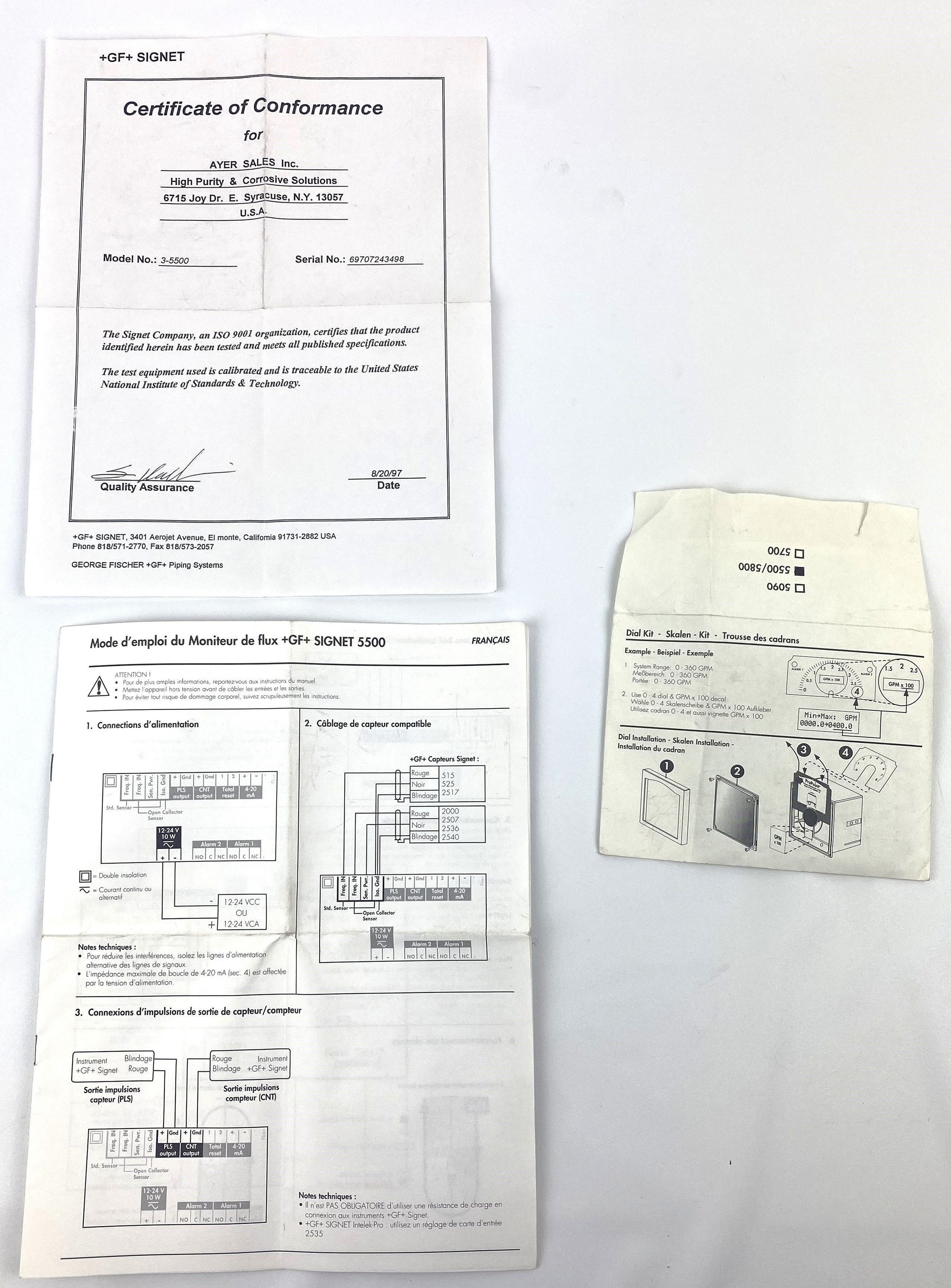

This unit is in near-new condition, includes a certificate and spare range displays - as seen in photos.

** SEE LINKS TO BROCHURE AND MANUAL FOR MORE INFORMATION

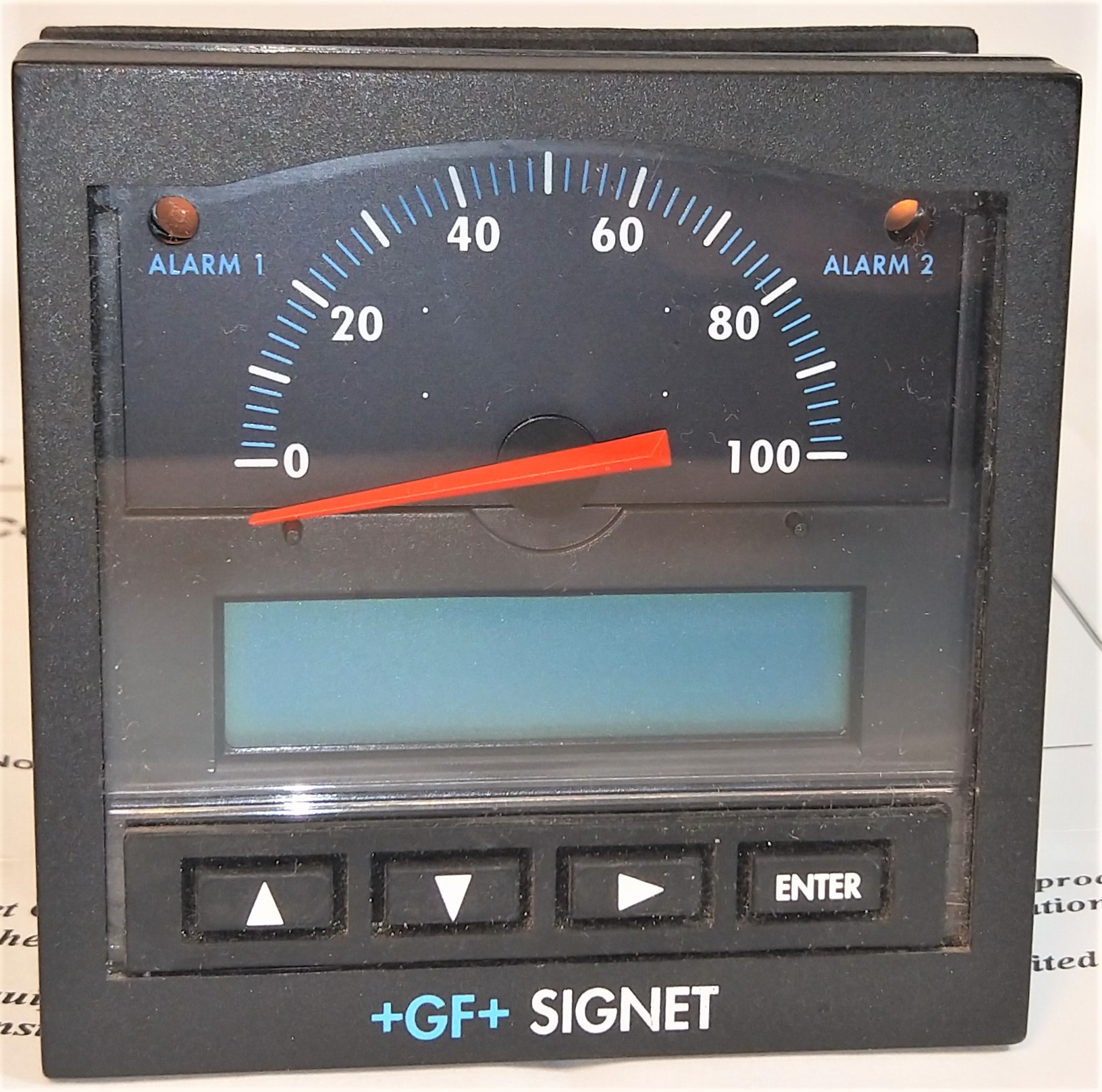

The GF Signet 5500 flow monitor is an instrument used for monitoring and controlling a flow system. The GF Signet 5500 flow monitor's analog dial enables the user to easily read instantaneous flow rate, while the backlit LCD is useful for calibration, set-up, and displaying totalized flow volume. The GF Signet 5500 flow monitor features a standard 1/4 DIN package and removable wiring terminals. Power the GF Signet 5500 flow monitor with any standard 24-volt power supply (AC or DC).


Connect the GF Signet 5500 flow monitor to any one of GF Signet's wide array of flow sensors (not included), then consider which output features are best for your application. The GF Signet 5500 flow monitor features two dry-contact relays which can be configured for High or Low alarm operation or set to pulse operation for chemical dosing applications.

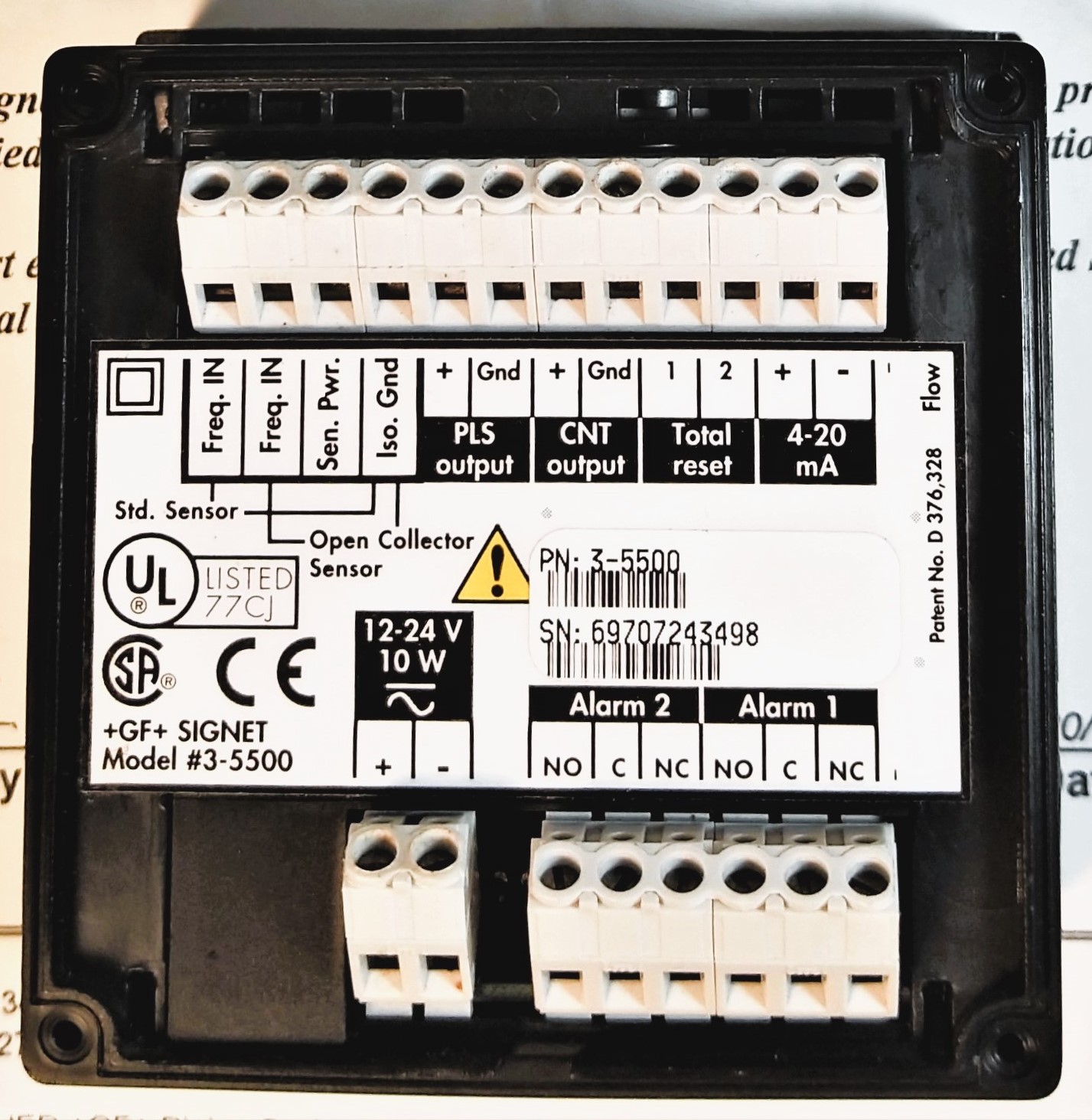

Use the GF Signet 5500 flow monitor's internally powered 4 to 20mA output, programmable from the front keypad, to send the flow information to any PLC or data logger. If you use all of these output features, you still have two more output pulse terminals, one at sensor frequency and the other triggered by the totalizer. And just for added convenience, the GF Signet 5500 flow monitor features a resettable totalizer can be reset by a remote hard-wired switch, up to 30m (100 ft) or from the front keypad.

Applications for the GF Signet 5500 Flow Monitor:

  • Waste water flow accumulation
  • Water treatment systems
  • Filtration systems
  • Feed pump pulsing
  • Fertigation
  • Irrigation
  • Commercial pools & Spas
  • Groundwater remediation
  • HVAC

Specifications

ManufacturerGF Signet
ConditionNew open box
Serial Number69707243498
MPN3-5500
Condition DescriptionOPEN BOX - APPEARS UN-USED
Electrical Certification / ApprovalCSA
Country/region of manufactureUnited States
Custom LabelS2
