Shimadzu SPD-10A VP UV-Visible Detector

Shimadzu SPD-10A VP UV-Visible Detector

Available quantity: 1

orCall 1-514-464-6144

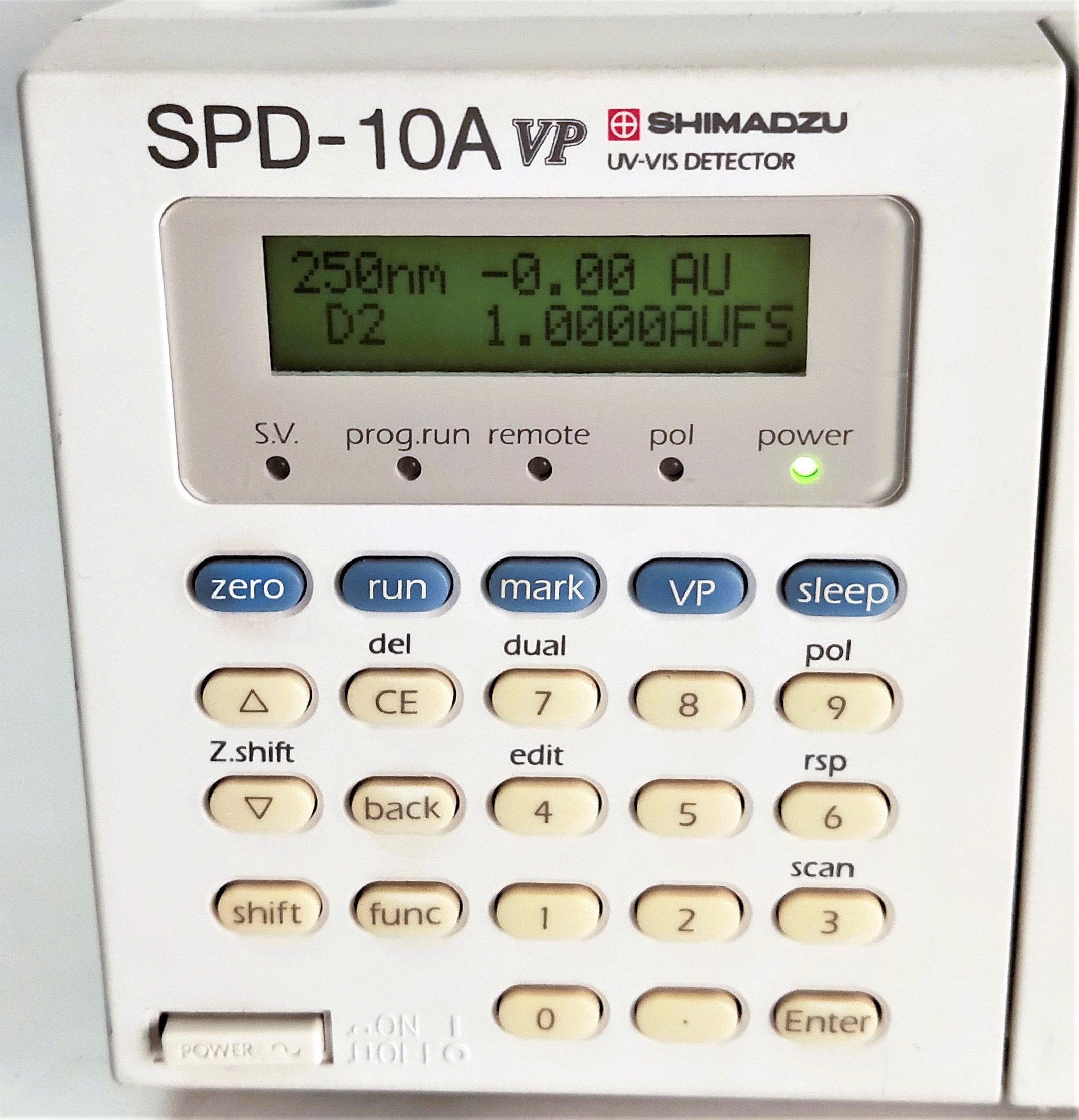

The Shimadzu SPD-10A VP UV-visible detector, is a system controller for Shimadzu VP Series HPLC system, allowing the users to command all VP Series components centrally and conveniently links all VP Series modules via fiber optic interfacing for easy "plug-and-play" setup, and is backward compatible with previous Shimadzu systems. Single point control allows user-friendly operation from the controller's easy-to-read, menu-driven display screens. Offers the highest in detector sensitivity and lowest noise level available to ensure reliable peak detection over a wide range.


- Ambient Temperature Range: 4-35ºC

- Light source: D2 lamp, W lamp

- Signal-To-Noise (S/N) Ratio: (+/- 0.35 x 10-5 AU)

- Wavelength repeatability: 0.1 nm

- Wavelength range: 190-900 nm

- Wavelength accuracy: +/- 1 nm

- Wavelength reproducibility: +/- 0.1 nm

- Spectral bandwidth: 8 nm

- Drift: 2 x 10-4 AU/hour Max. (constant room temp) (10AVP: 250 nm)

- Wavelength Scanning: Steps: 1 - 5 nm, in 5 steps (2-5 nm when W lamp is used)

- Scan speed: 10 - 50 nm/sec, 5 steps

- Time Program: Controlled by detector unit itself or by system controller:

Wavelength (2 wavelengths), auto zero, range, marker, response, wavelength scan, event, polarity, lamp ON/OFF, loop

- Output Recorder: 10 mV Integrator: 0.5, 1, 2, 4, 1.25, 2.5 AU/V in 6 steps

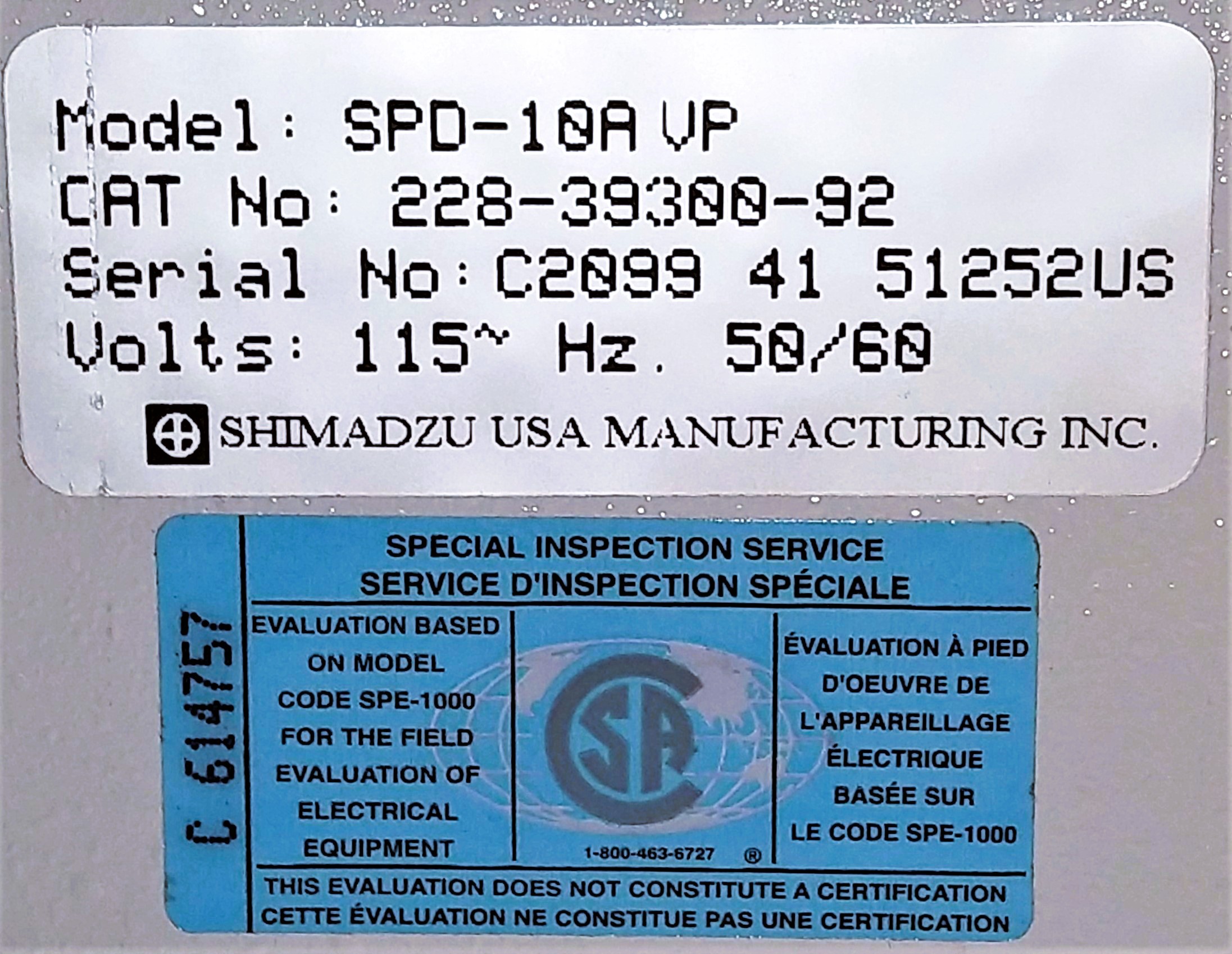

ManufacturerShimadzu USA Manufacturing Inc
ModelSPD-10A VP
Serial NumberC2099 4151252 US
Condition DescriptionIN GOOD WORKING ORDER
Wavelength range190 - 900 nm
Electrical Requirements120V, 50/60hZ
Electrical Certification / ApprovalCSA
Dimensions11"W x 17"D x 6"H
Weight (lbs)39
Country/region of manufactureJapan
Custom LabelE3A
