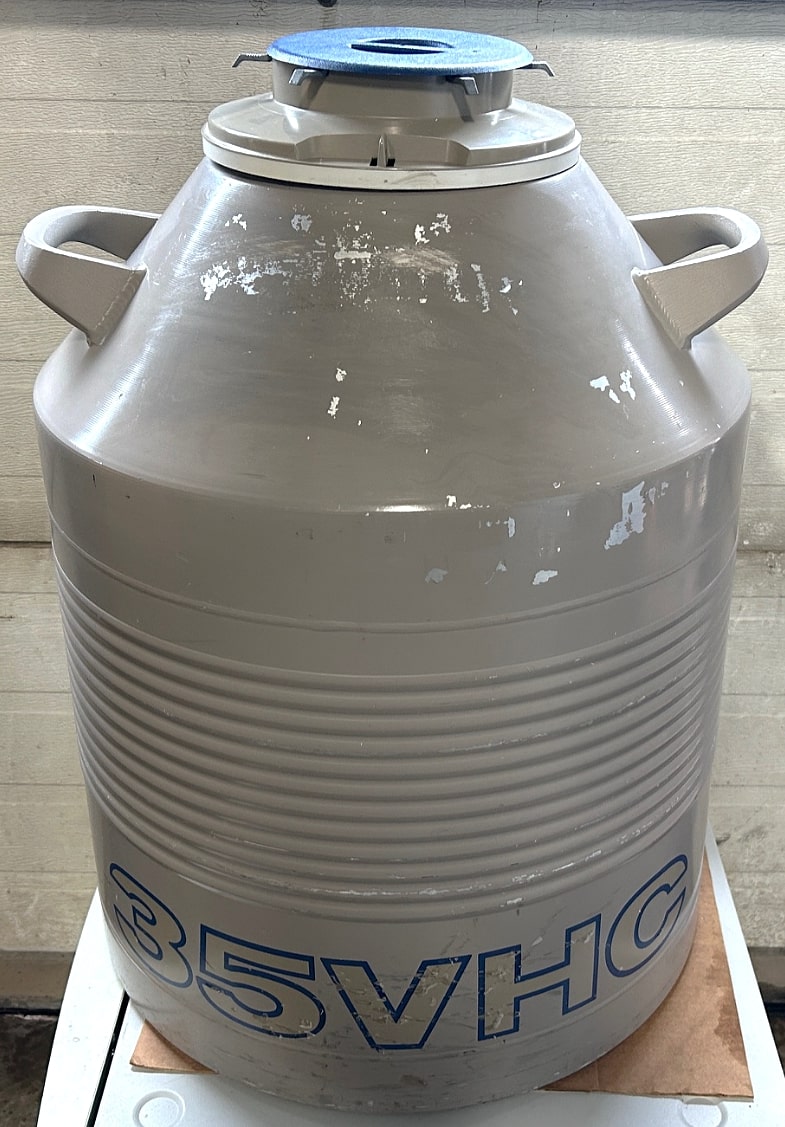

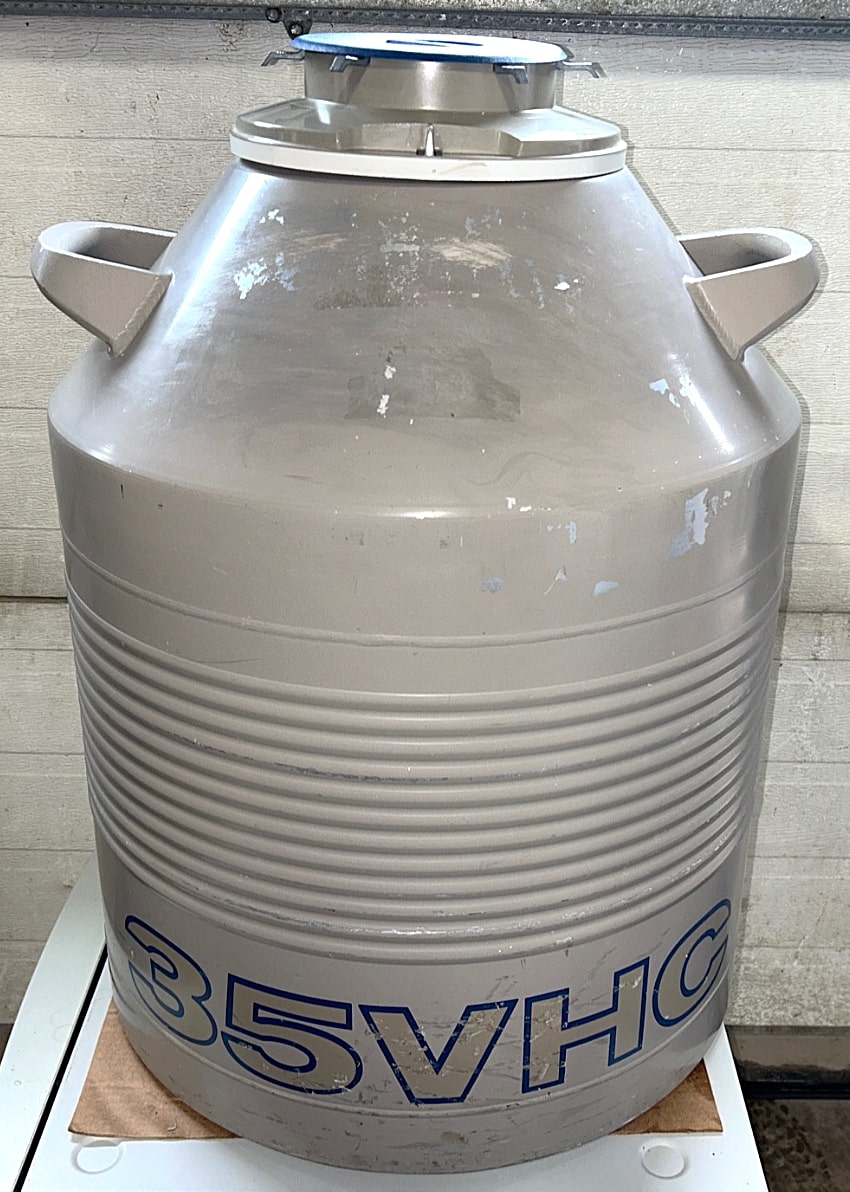

Union Carbide 35VHC Cryogenic Storage Tank (35L)

The Union Carbide (Taylor Wharton) 35VHC High-Capacity (HC) Series of refrigerators are designed for long-term preservation of biological samples like cells and tissues. The 35VHC holds 6 stainless steel hanging racks in individually numbered grooves (only 5 racks are included with this unit). Each hanging rack has a capacity of ten 100-cell boxes (not included). Samples are placed in these boxes and immersed in liquid nitrogen inside of the 35VHC cryogenic storage container. When samples are submerged in liquid nitrogen, storage temperatures reach -196°C (-320°F) at the liquid surface, and -299°F (-184°C) under the closed necktube core.

Features:

Rugged Construction - sturdy design with handles, ribbed high strength aluminum body, magniformed necktube design, and more durable paint

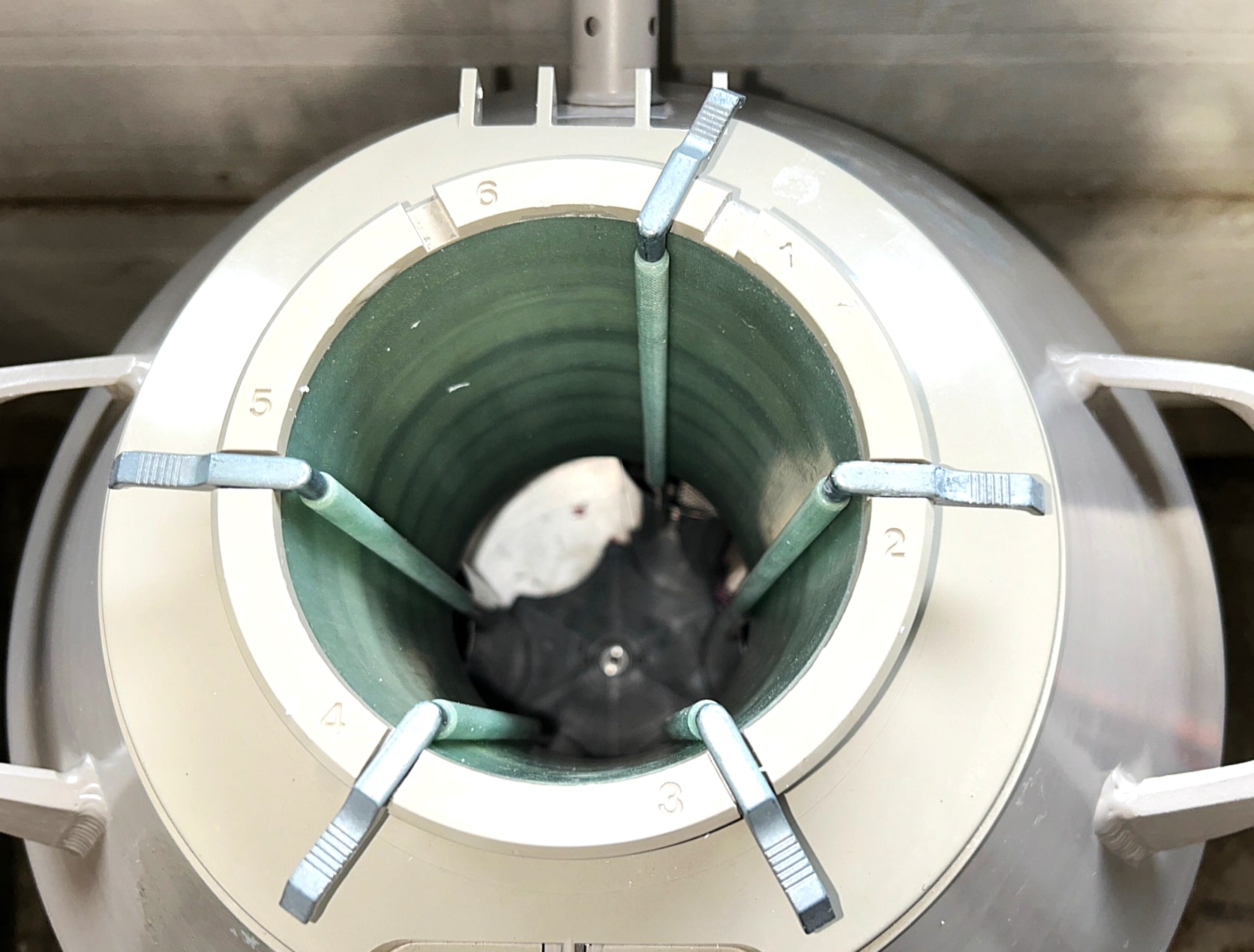

Versatile storage system - convenient canister index location ring and internal spider

Superior vacuum performance with super insulation provides maximum holding times

Security - optional low-level alarm is available for use with more valuable samples (not included)

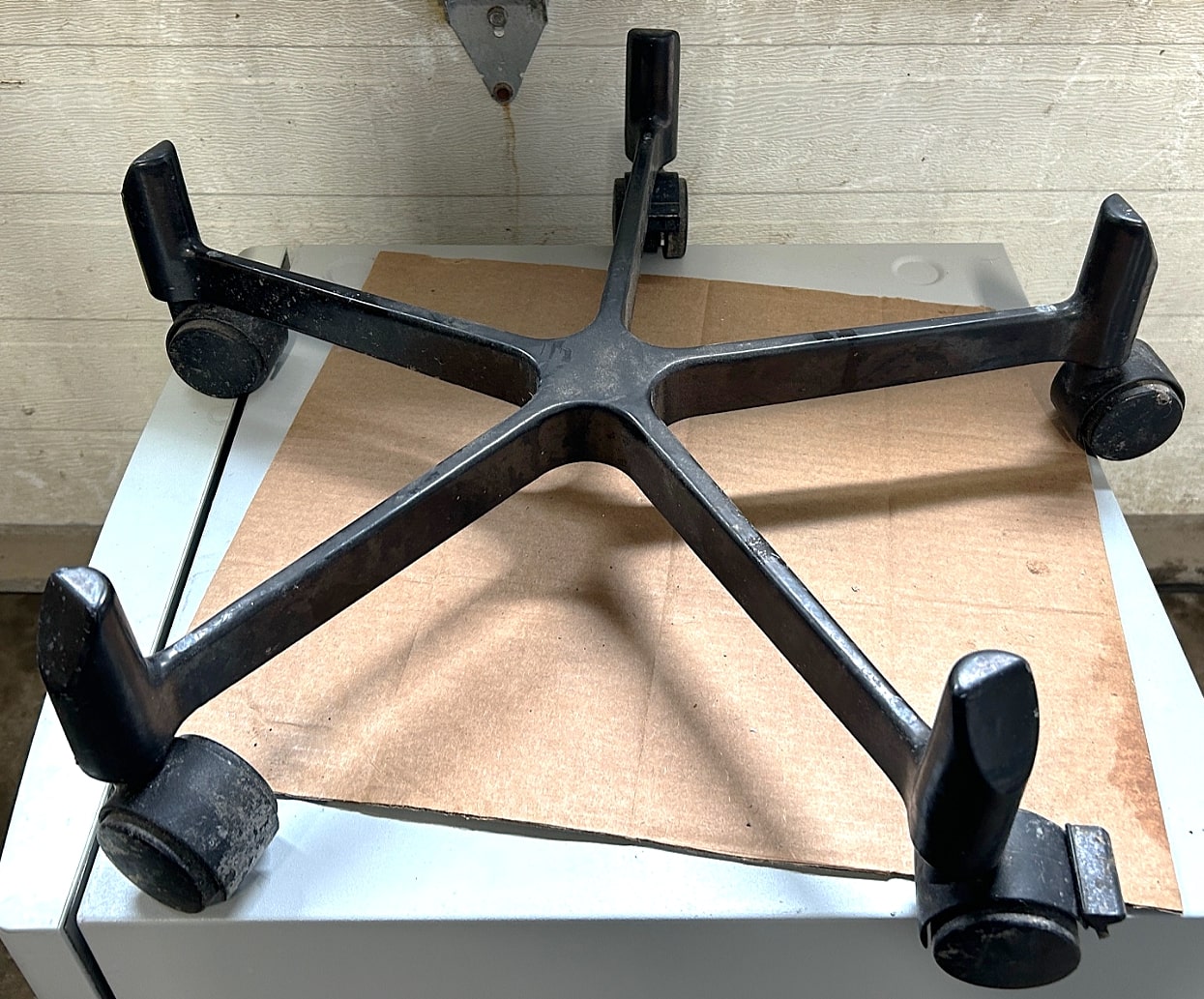

Mobility - Roller bases are available for some models (included)

Specifications:

Static Holding Time: 130 days

Evaporation Rate: 0.27 liters per day

LN2 Capacity: 35 Liters

Weight - Empty: 37.9 lbs.

Weight - Full: 100.2 lbs.

Neck Diameter: 4.7”

Overall Diameter: 18.8”

Canister Size: 11"

Number of Canisters Held: 6

** SEE LINK TO MANUAL FOR MORE INFORMATION
