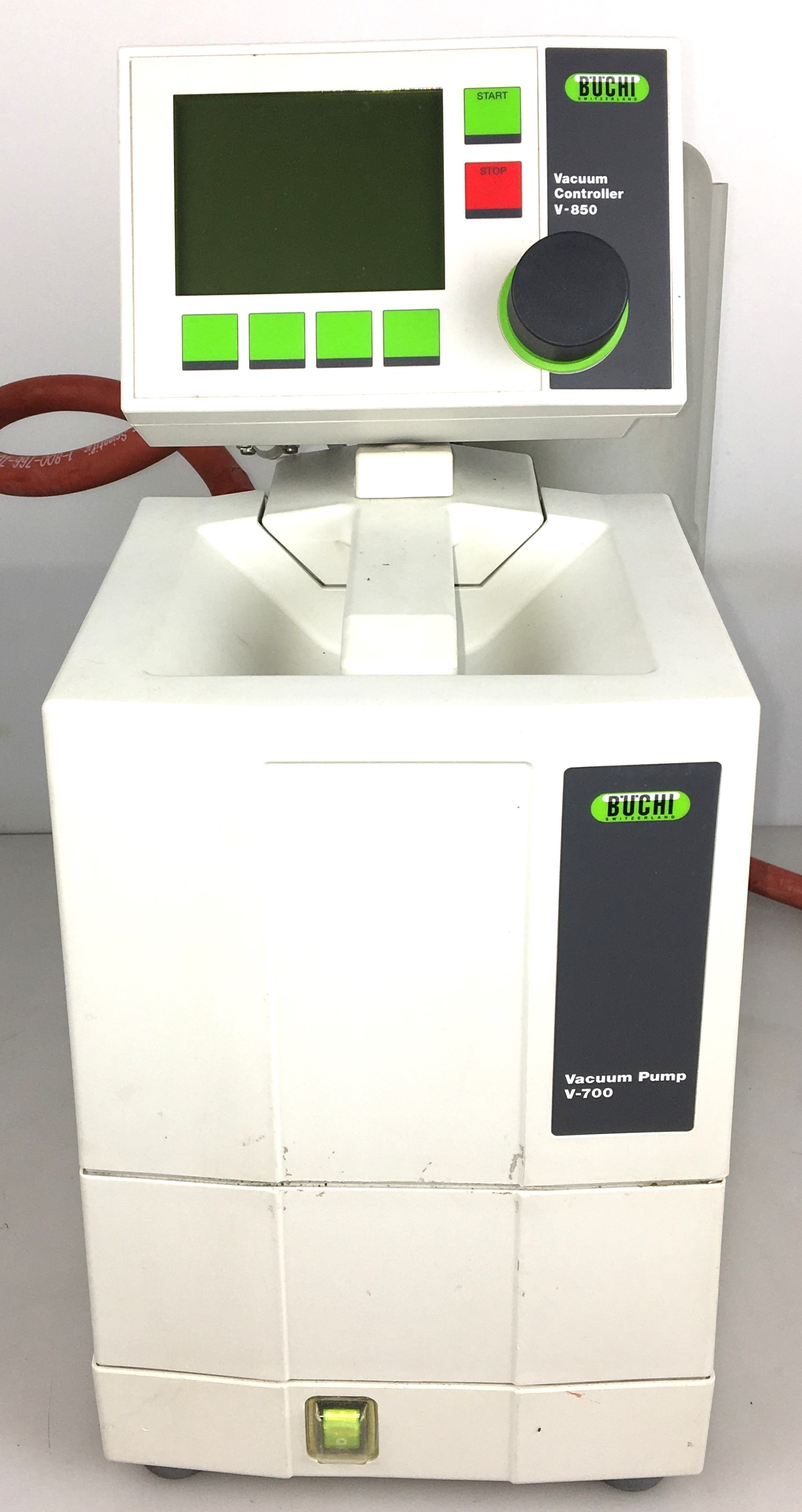

Buchi V-700 Vacuum Pump with V-850 Controller

The Buchi V-700 vacuum pump is a chemically resistant PTFE diaphragm pump designed for use with all gases and vapors typically associated in the lab. With a flow rate of 1.8 m3/h and an ultimate vacuum of below 10 mbar, it covers a wide range of classical laboratory applications and is optimally suited for work with a rotary evaporator. Other typical applications include the evacuation of drying ovens or vacuum centrifuges and the generation of vacuum for filtration purposes or for conveying liquids.

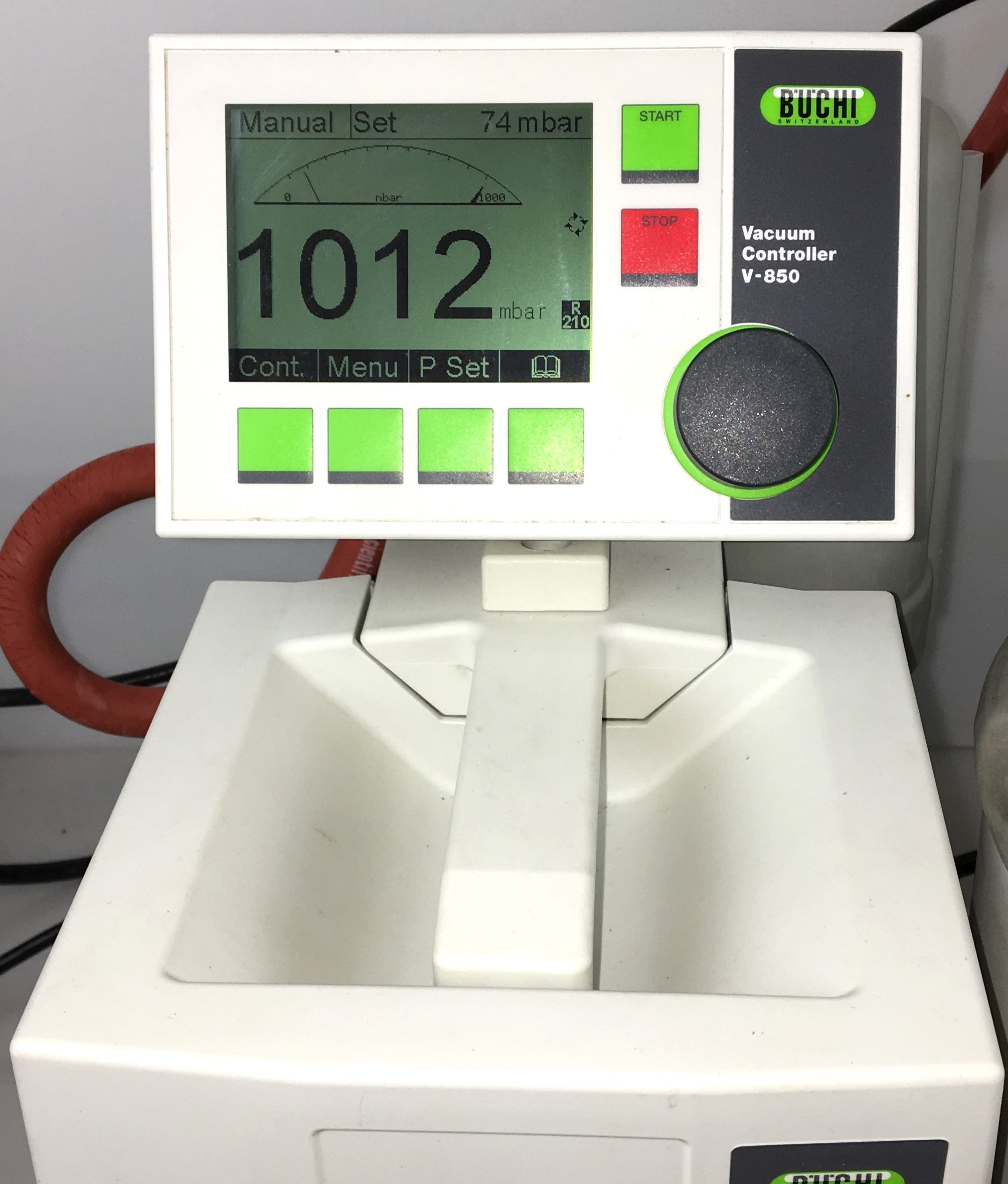

The Buchi V-850 vacuum controller is a stand-alone valve unit for operation with external vacuum systems, such as the Buchi V-700 vacuum pump which works with the R-210 rotovap system. The easy-to-operate V-850 units are equipped with a single control knob and a large graphic display screen with intuitive menu guidance and six selectable language options. The controller features a solvent database, a timer function for process termination, and a LabVac function for control of laboratory vacuum systems. Units are equipped with a USB port and RS-232/RS-485 interfaces. The integrated aeration valve and the precision pressure sensor are resistant to chemicals, making the controller suitable for numerous applications in the lab.

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
