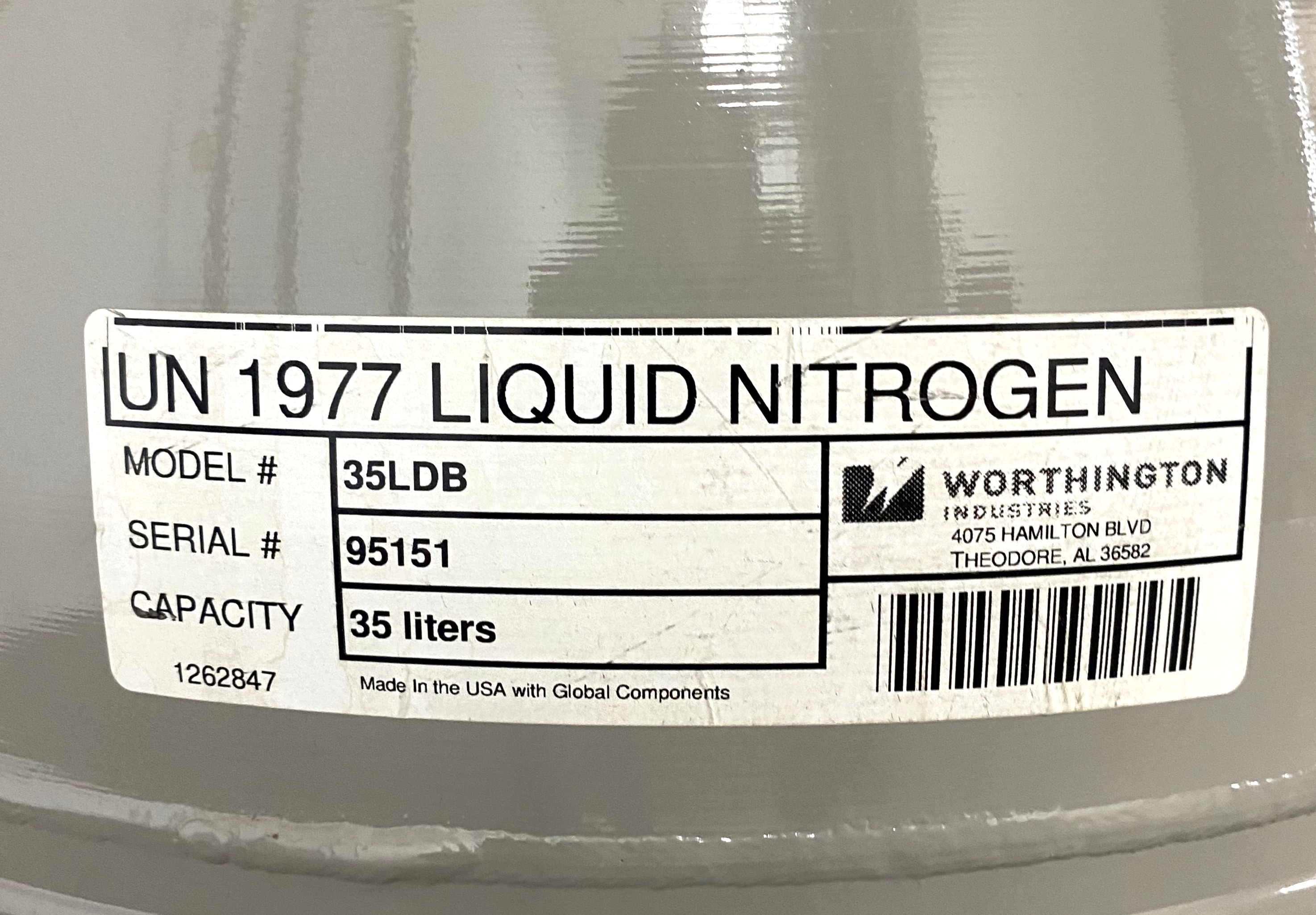

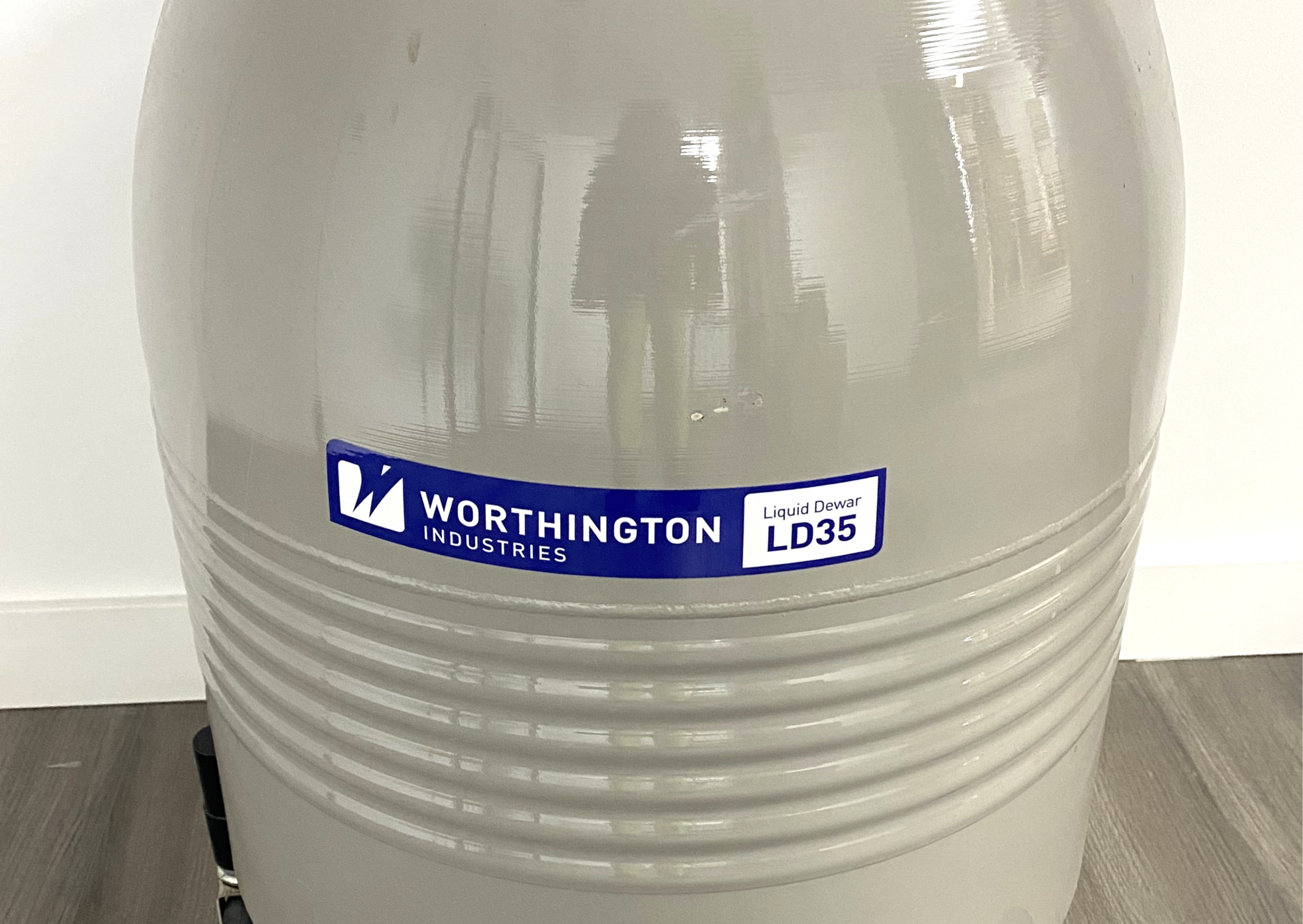

Worthington Industries 35LDB Cryogenic Storage System (35L)

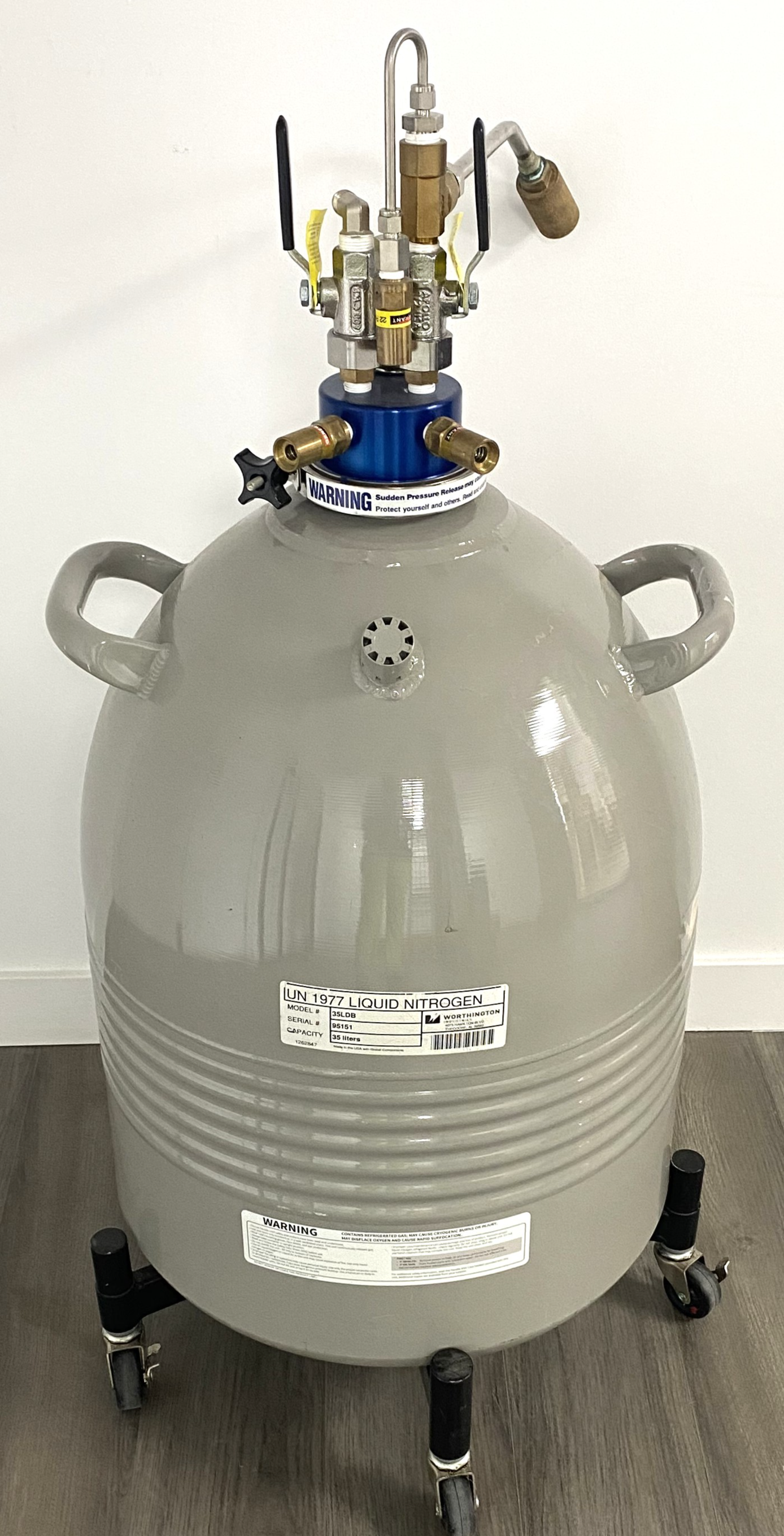

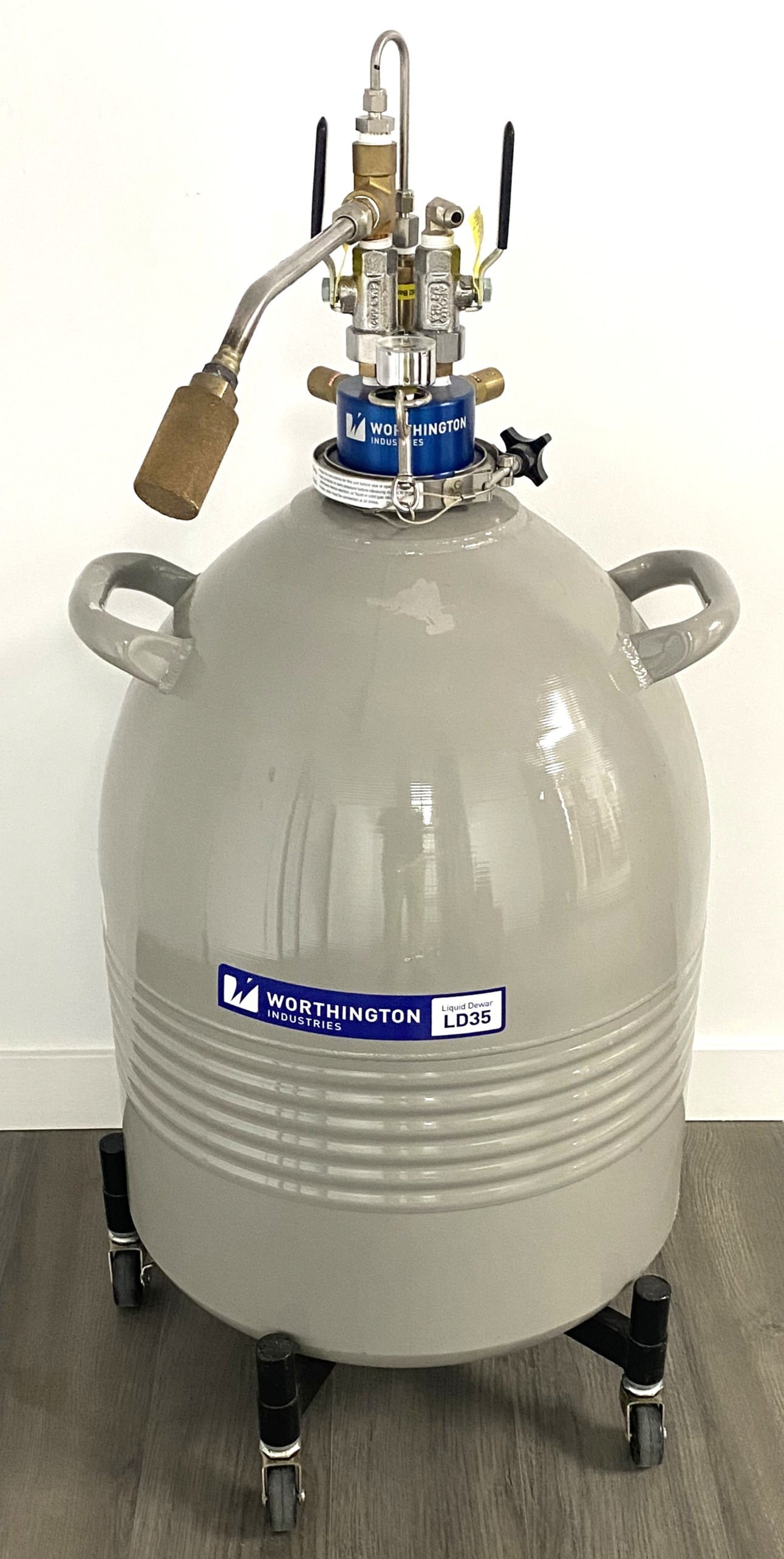

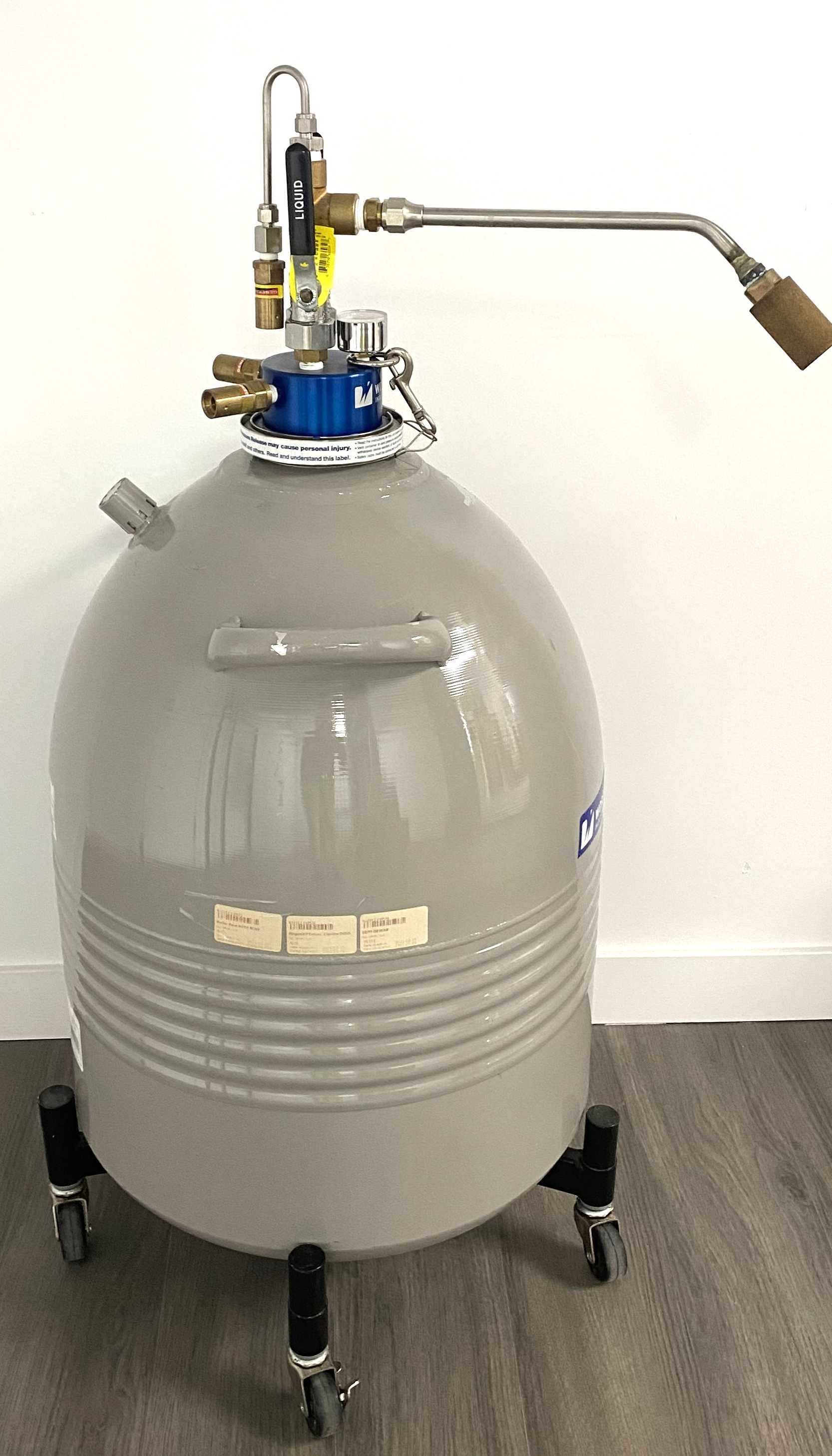

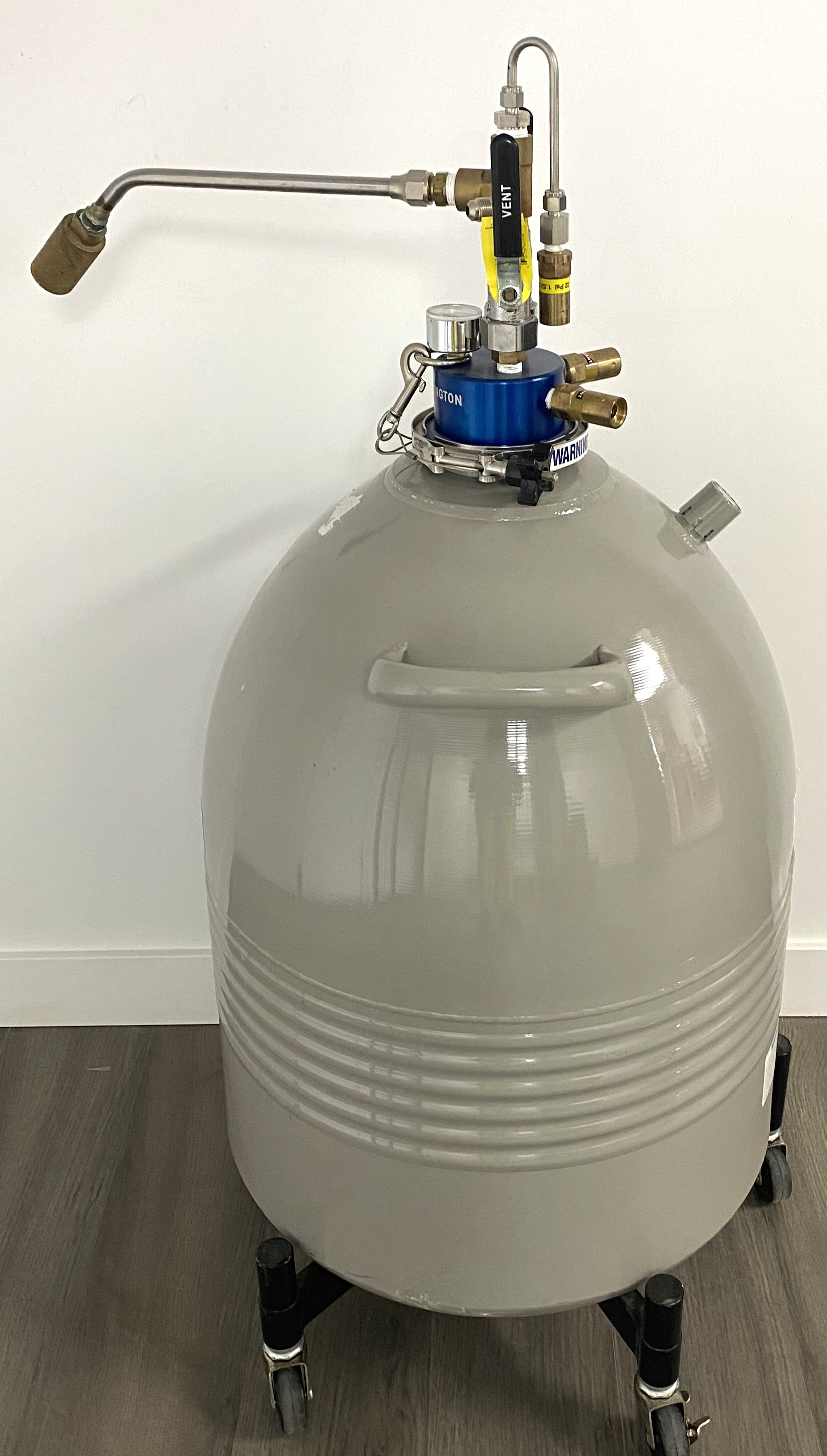

This Worthington Industries 35LDB liquid nitrogen dewar / cryogenic storage tank 35L is in good condition and includes a  Roller Base and Liquid Withdrawal Device (P/N 366597).

The Worthington 35LDB Liquid Nitrogen Storage Dewar is engineered for optimal performance, featuring a 35-liter capacity and an impressive 152-day static hold time. Its durable aluminum construction and superior vacuum insulation make it the ideal choice for professionals seeking reliable and efficient storage solutions.

Features:

• Provides high thermal efficiency
• Ribbed, high-strength aluminum body, magniformed neck tube design, and durable paint make these dewars rugged
• Easy to operate design features a lightweight snap-on cap and necktube provides a tight closure and easy access
• Provides maximum holding times with superior vacuum performance and insulation

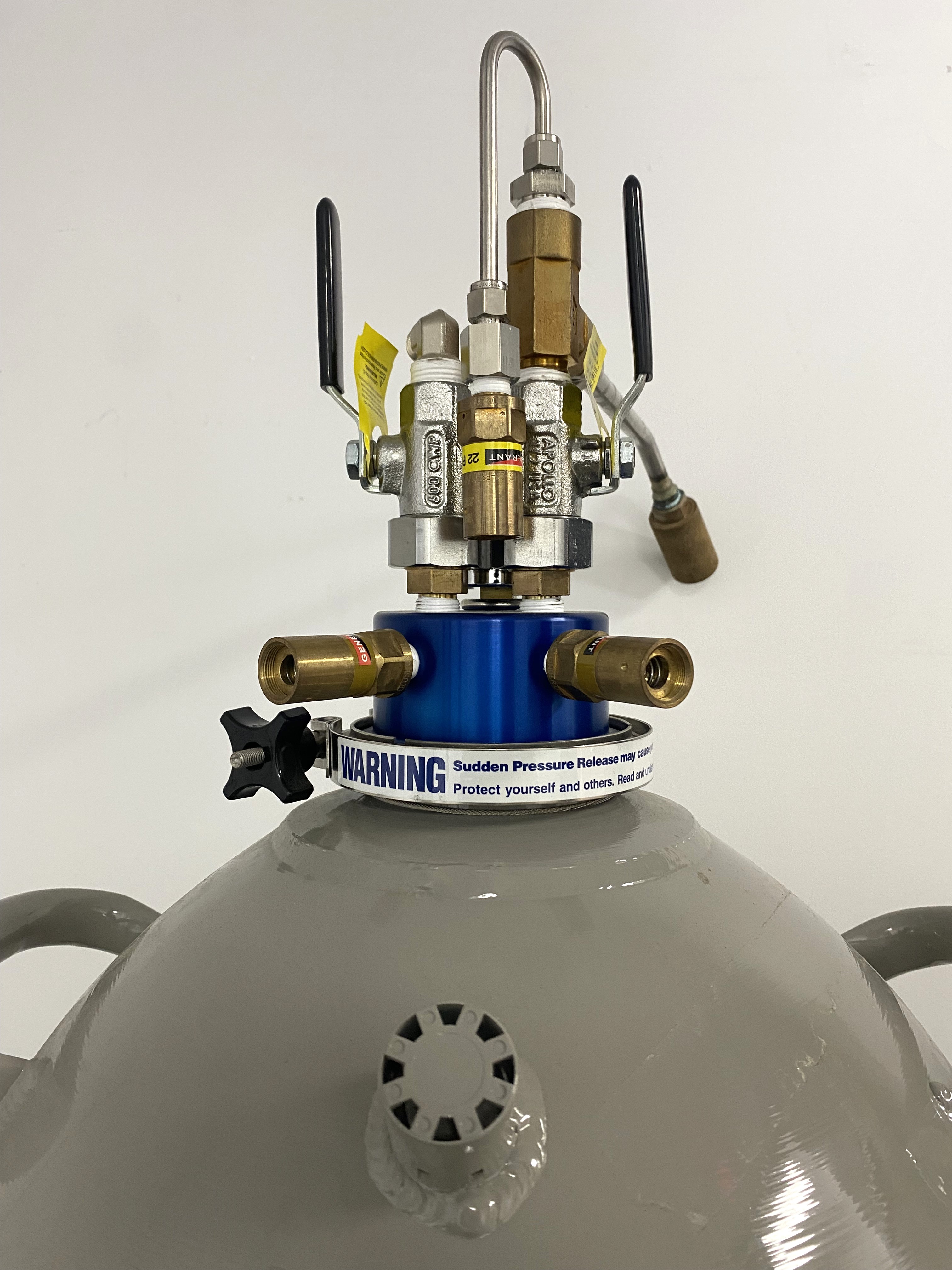

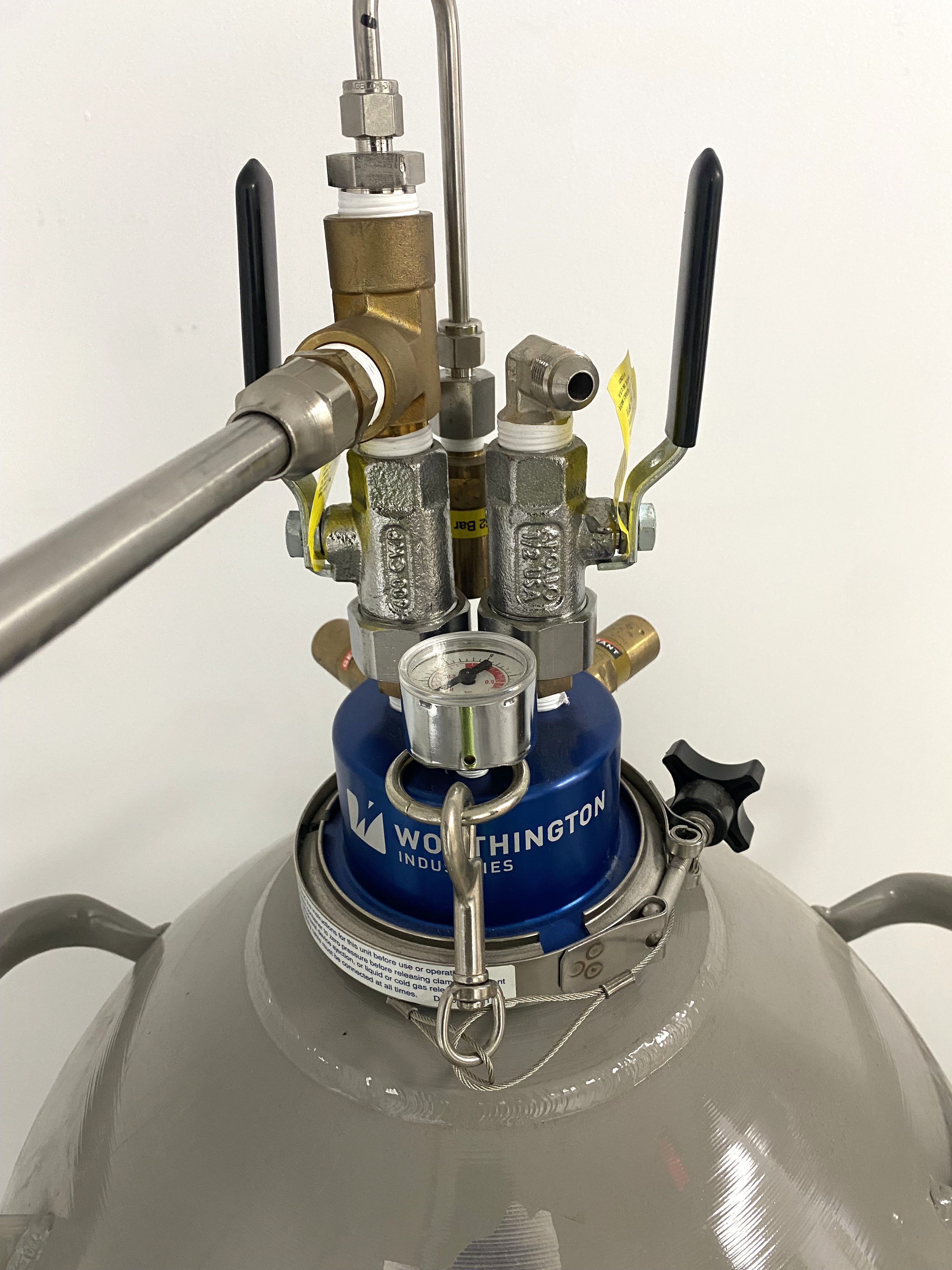

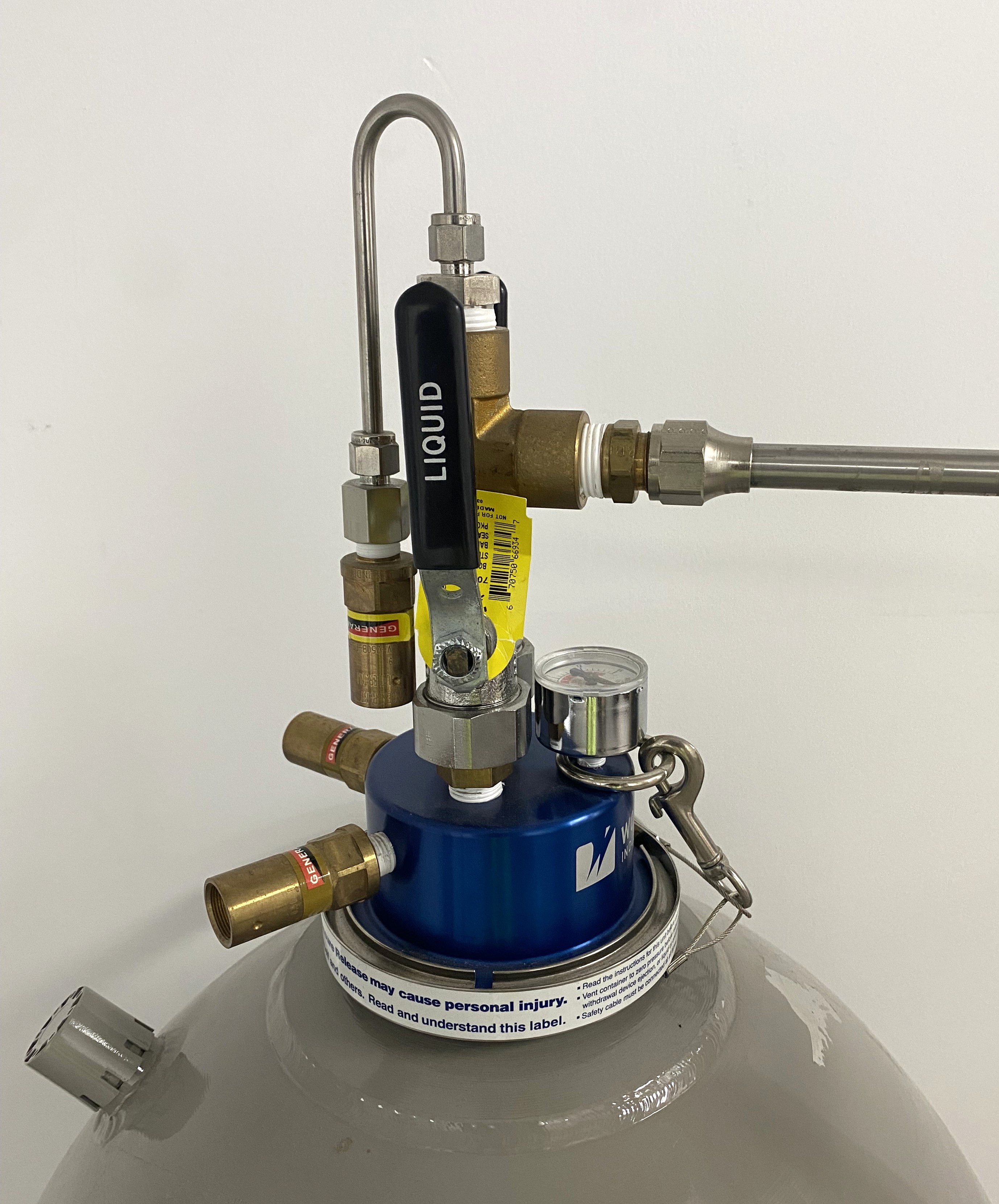

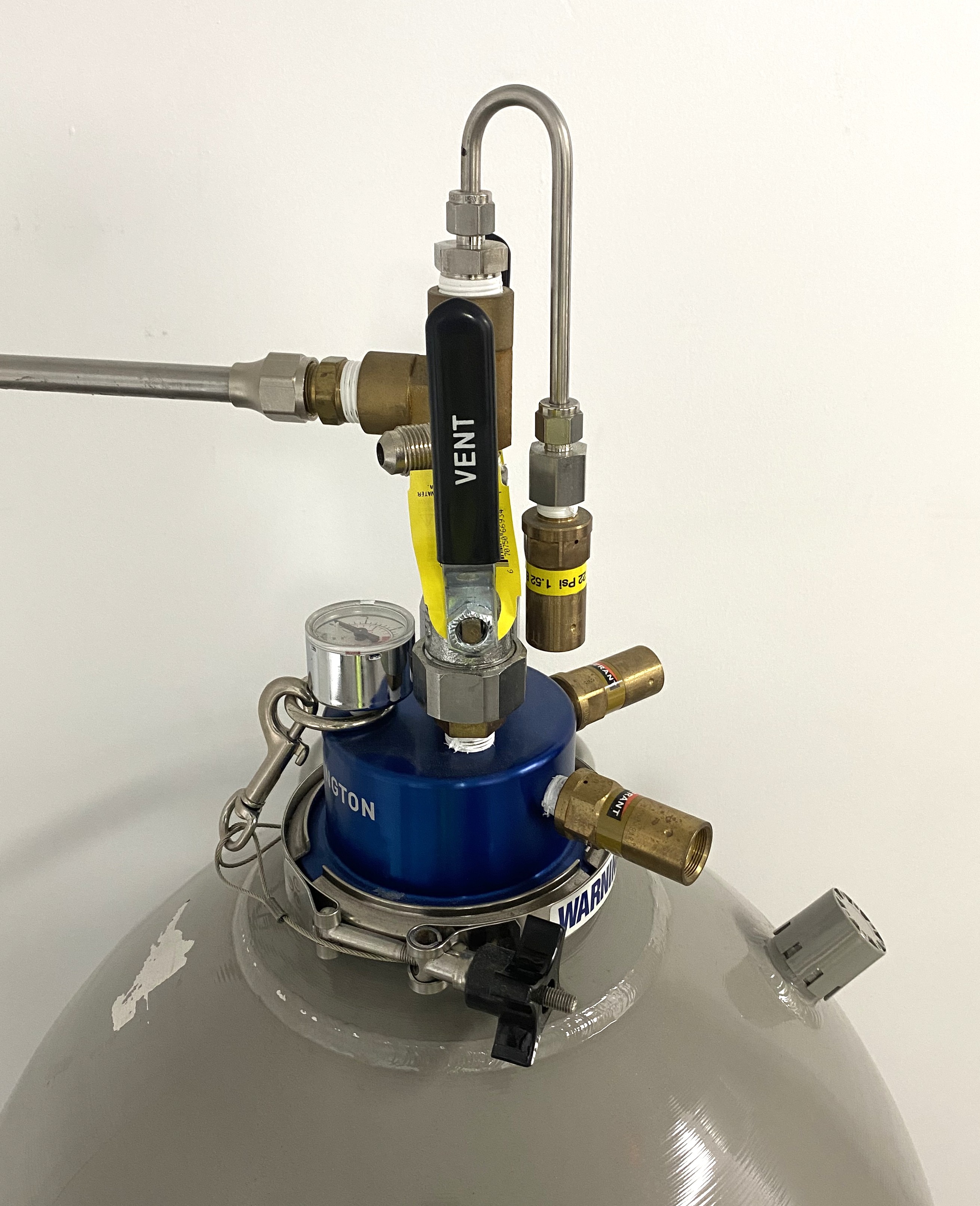

The Liquid Withdrawal Device (LWD) provides convenient pressure transfers of liquid nitrogen from LD25, LD35 and LD50 Dewars. The device clamps directly to the special neck flange that is found under the plastic trim collar around the neck of these containers.

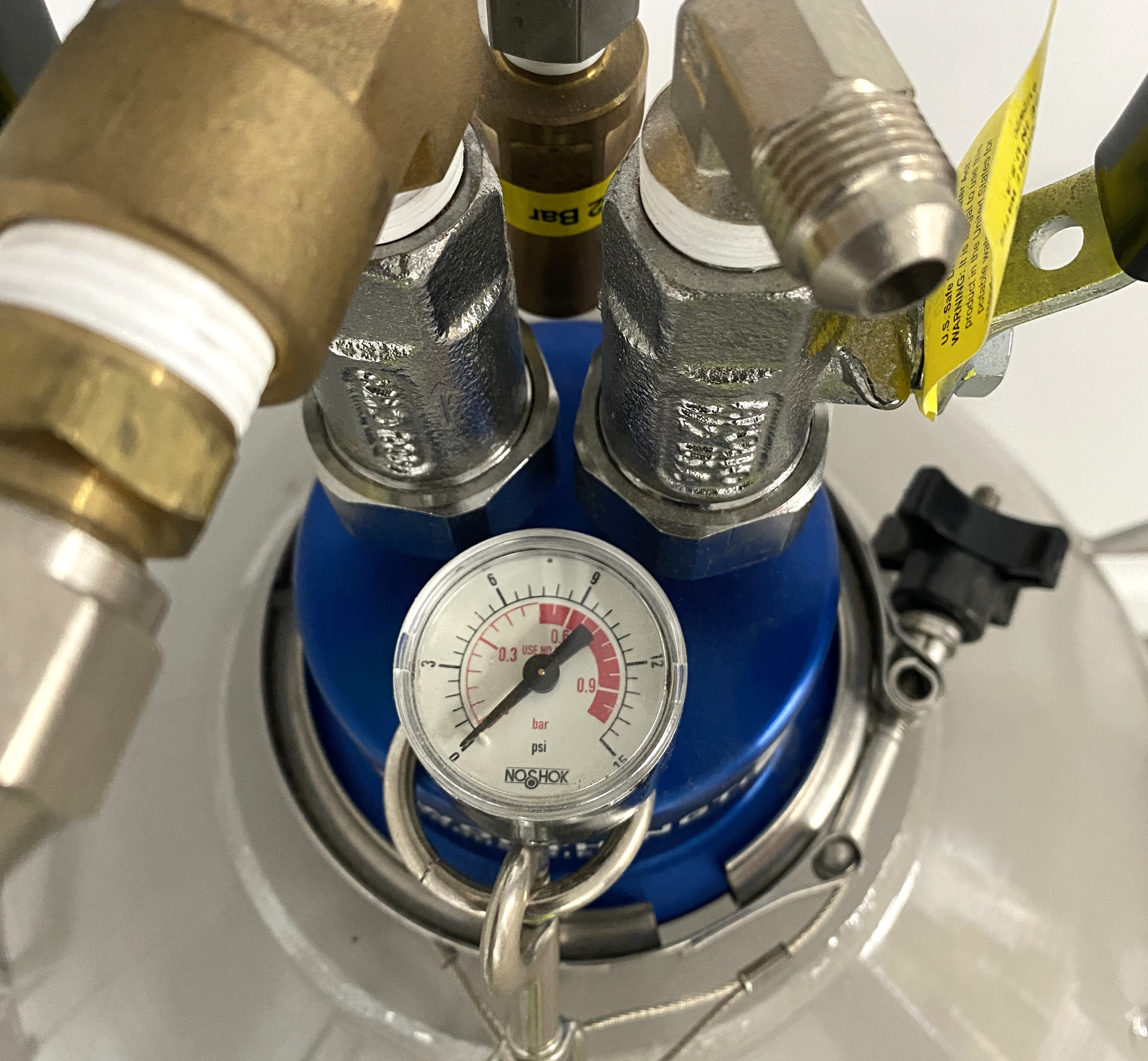

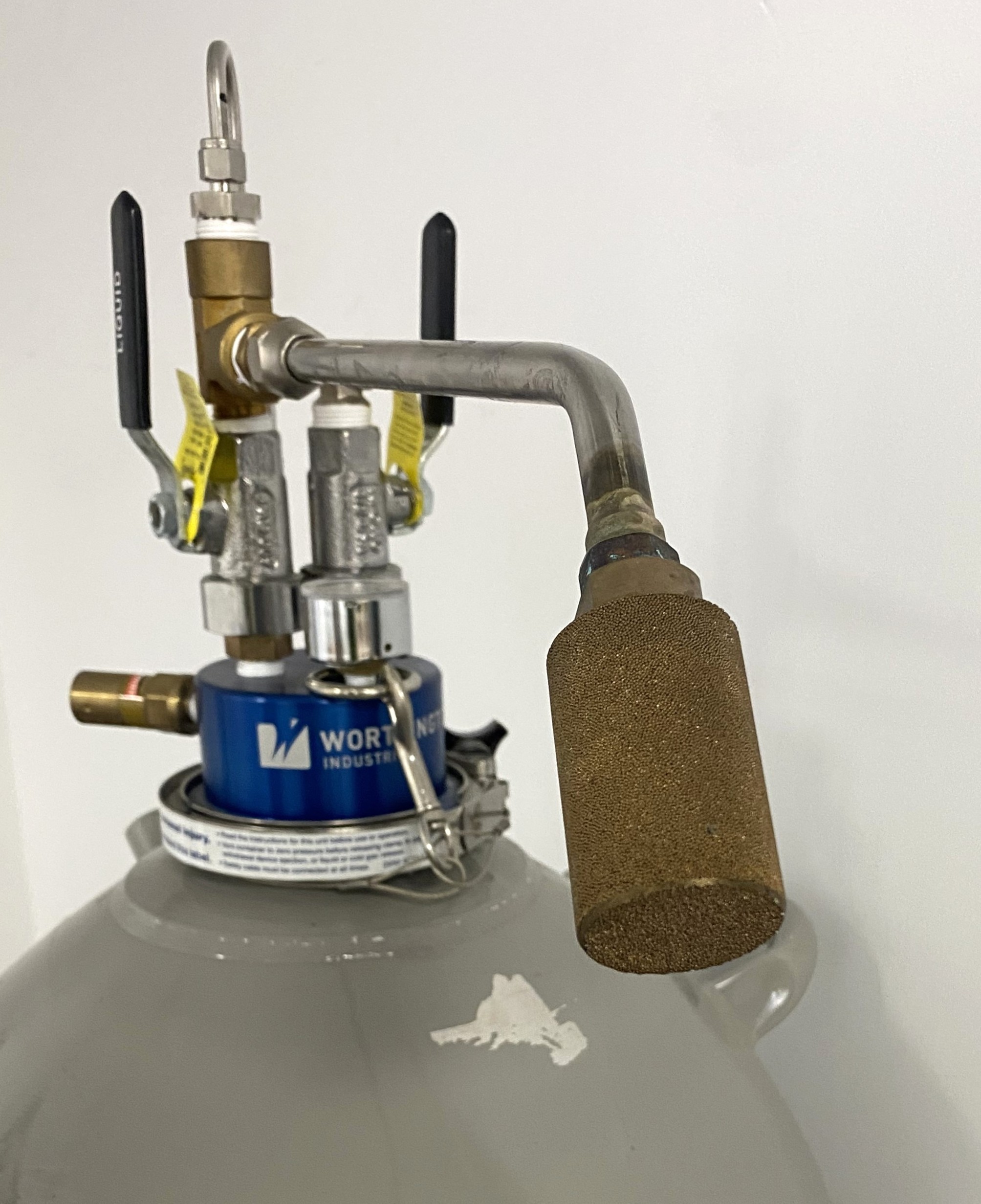

Flow rates up to 8 liters per minutes are possible at operating pressures up to 7.25 psig (0.5 bar/50 kPa). Liquid can be dispensed directly from the LWD via the spout provided, or through a standard cryogenic hose connected to the liquid outlet.

Filling a Dewar is accomplished by pressure transfer through the withdrawal device. This filling method allows replenishment of the liquid supply in the Dewar without removing the LWD, while keeping the liquid saturated at a pressure sufficient to sustain liquid withdrawal.

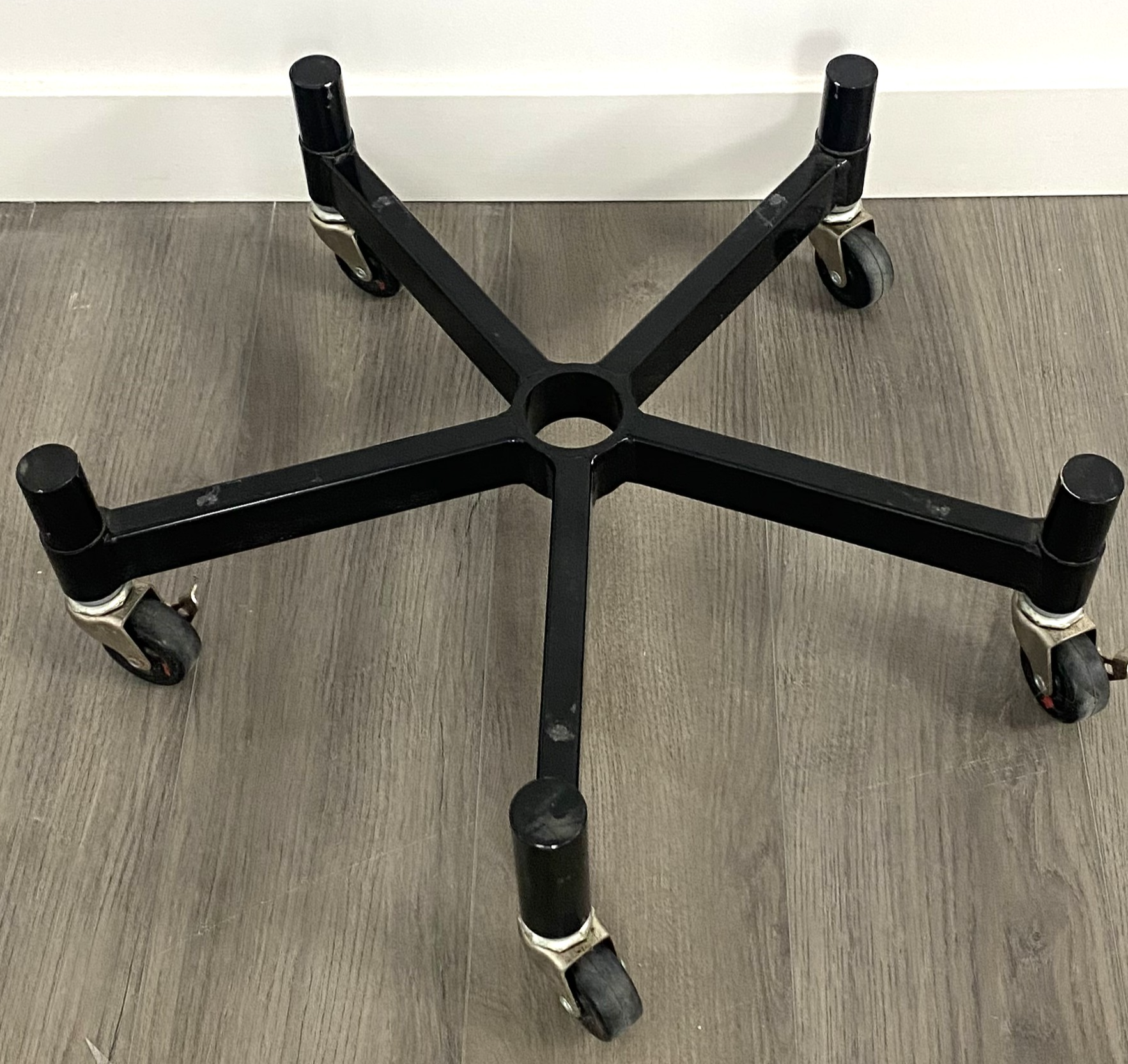

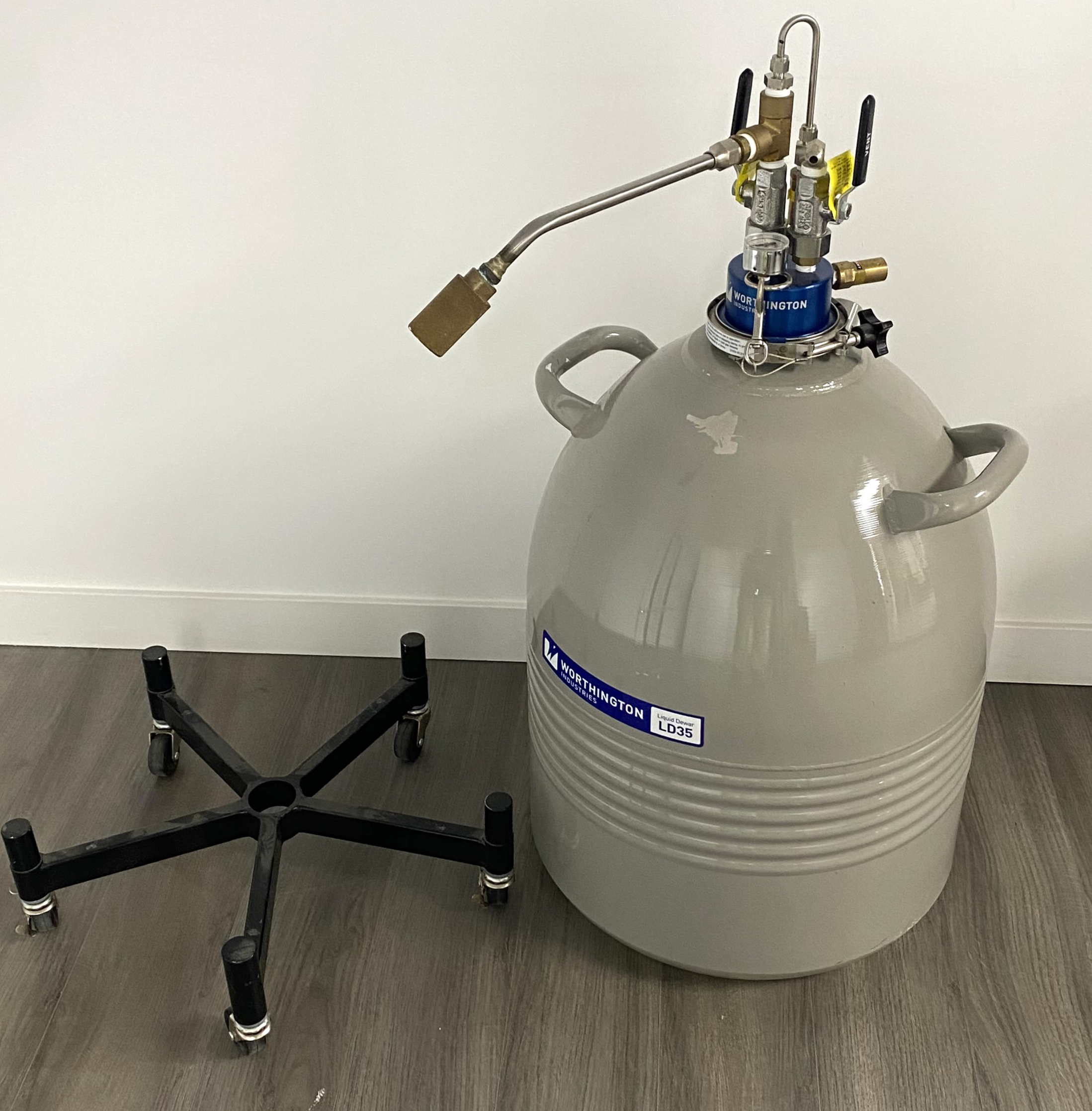

Weight of a filled 35L Dewar can exceed 100lbs (45kg). Use of the cast aluminum roller base with 5 wheels is strongly recommended for safe transport.

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
