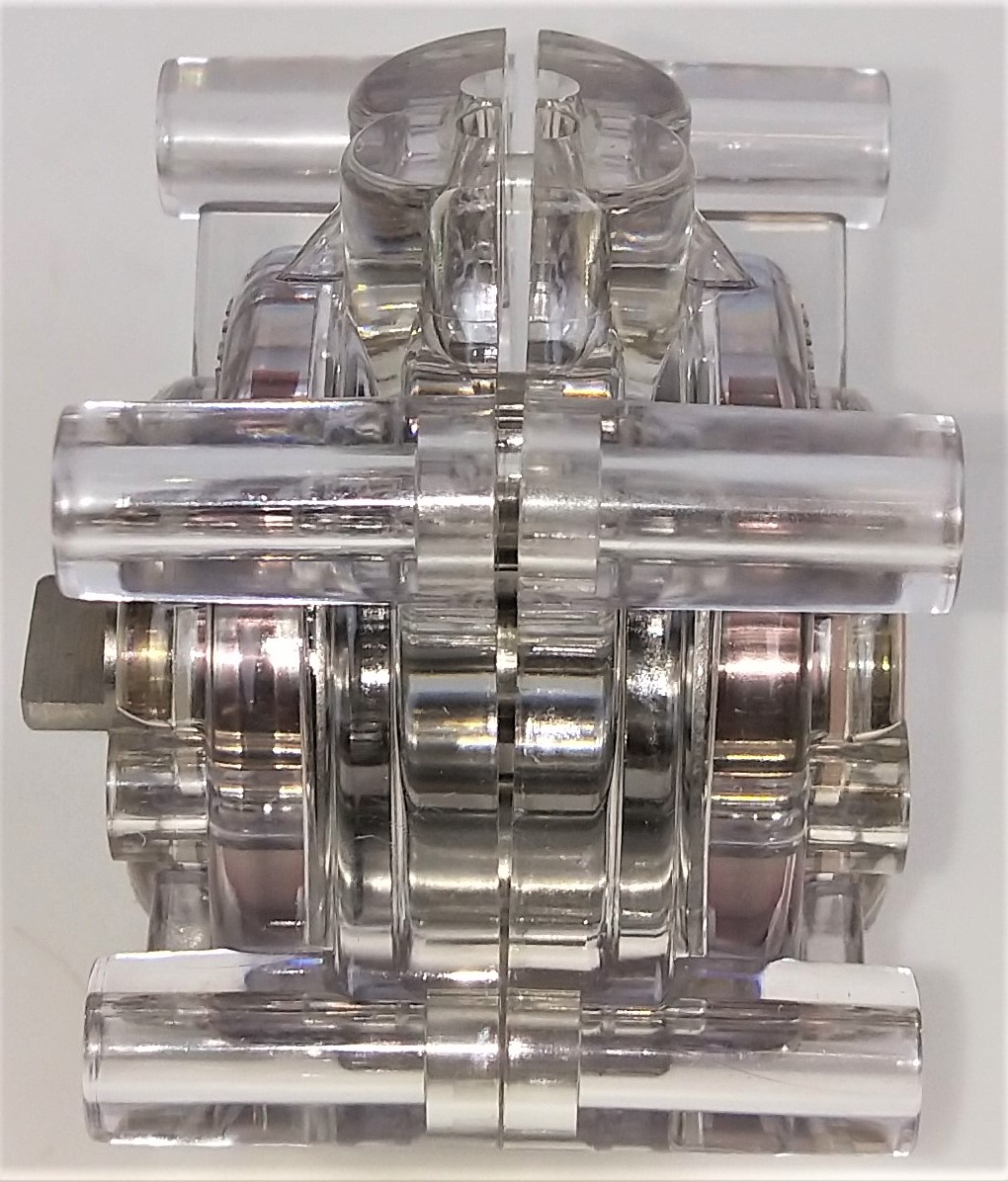

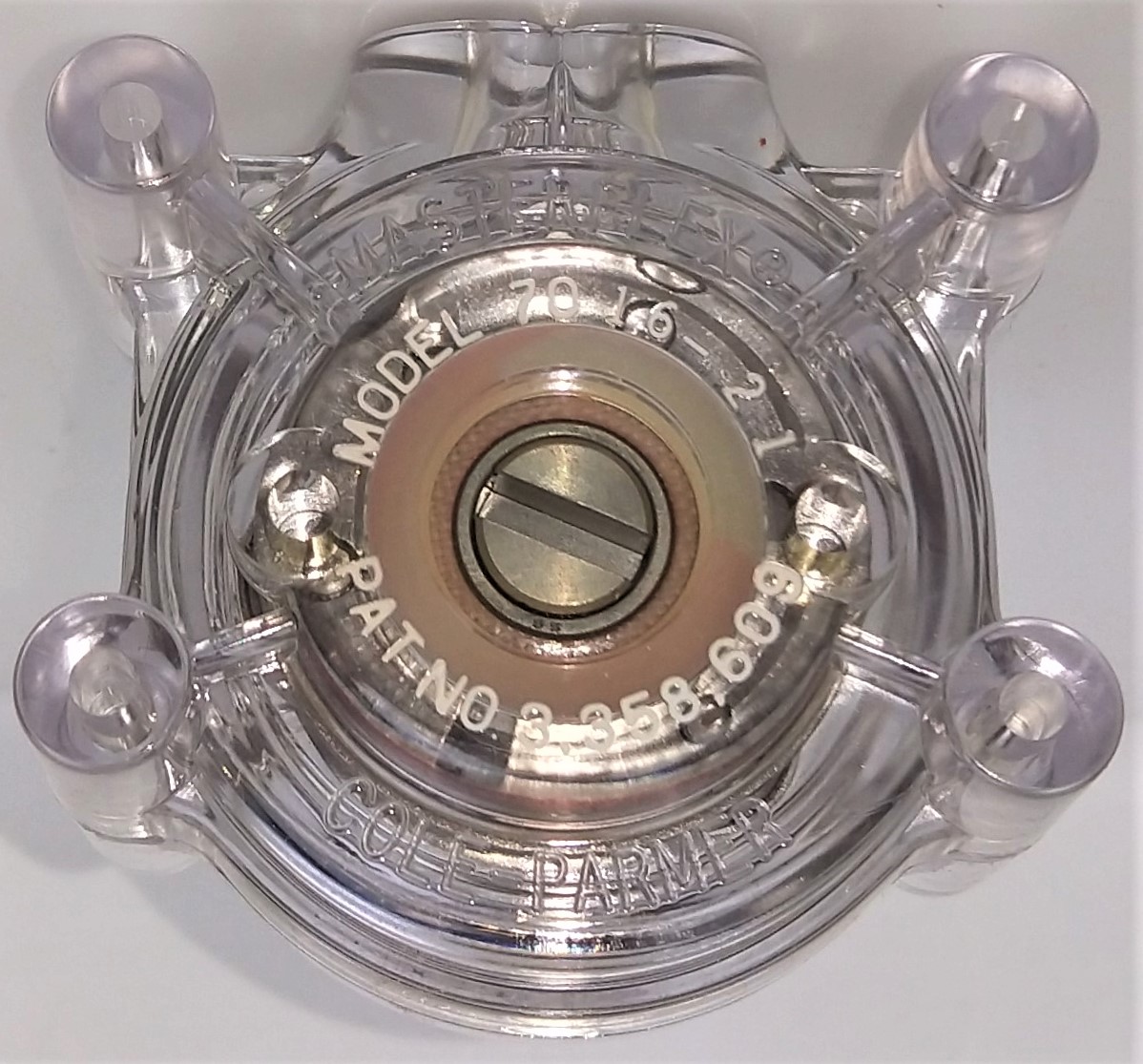

Cole-Parmer Masterflex Standard L/S 7016-21 Pump Head

The Masterflex Standard L/S 7016-21 pump head is ideal for fluid transfer applications requiring high accuracy and repeatability. Standard heads are precision molded to accommodate a single size of tubing. Pump head is compact and simple in design with same side tubing entry/exit—perfect for space-limited applications. Standard heads are compact and easy to integrate into your OEM applications. Stack up to four heads depending on drive recommendations.

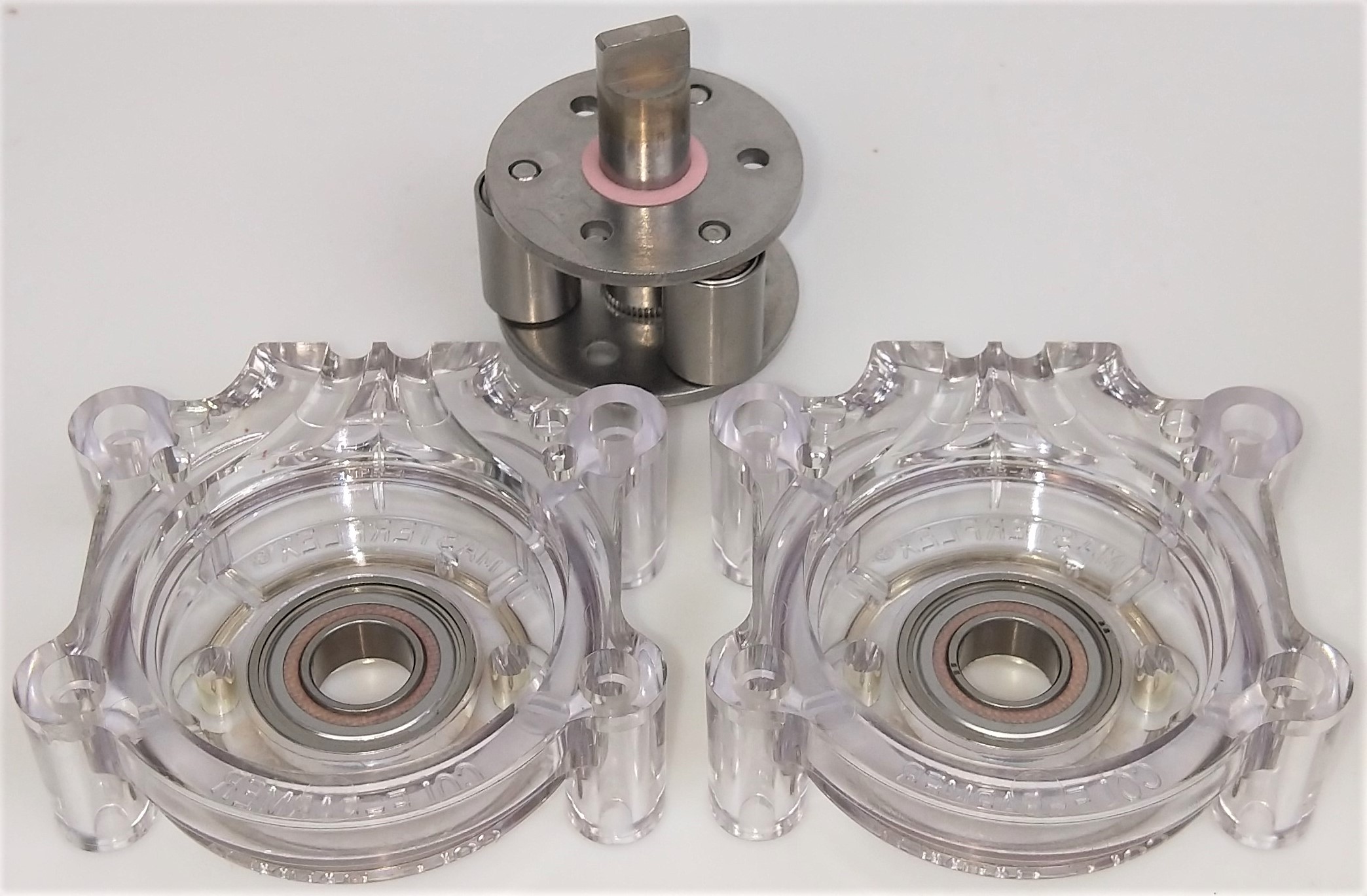

This Standard pump head accepts high-performance precision tubing— choose these pump heads for better pressure generation, suction lift, viscous fluid transfer, and longer tubing life. This pump head has PC housing and a stainless steel rotor.

Accepts L/S 16 tubing.

Flow range: 0.8 to 480 mL/min

** SEE LINKS TO LITERATURE FOR MORE INFORMATION
