Fisher Controls R232-BBF LP-Gas Regulator

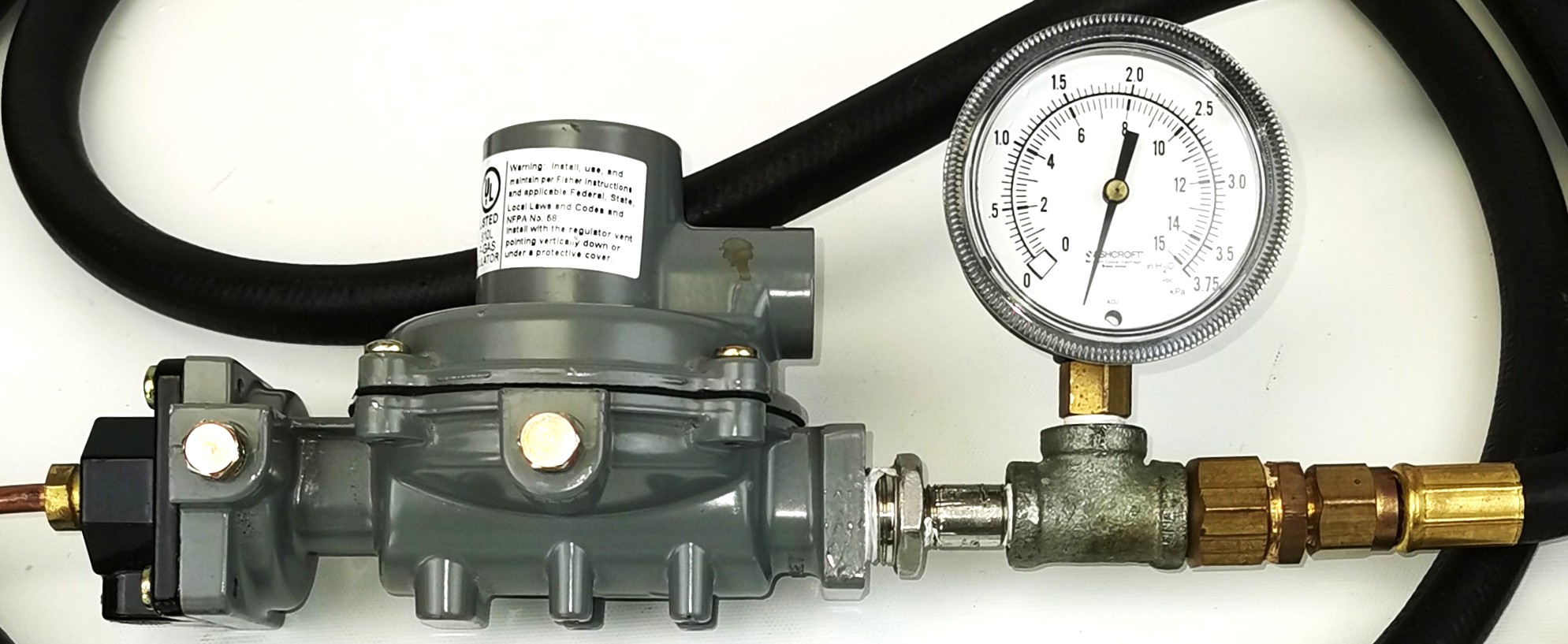

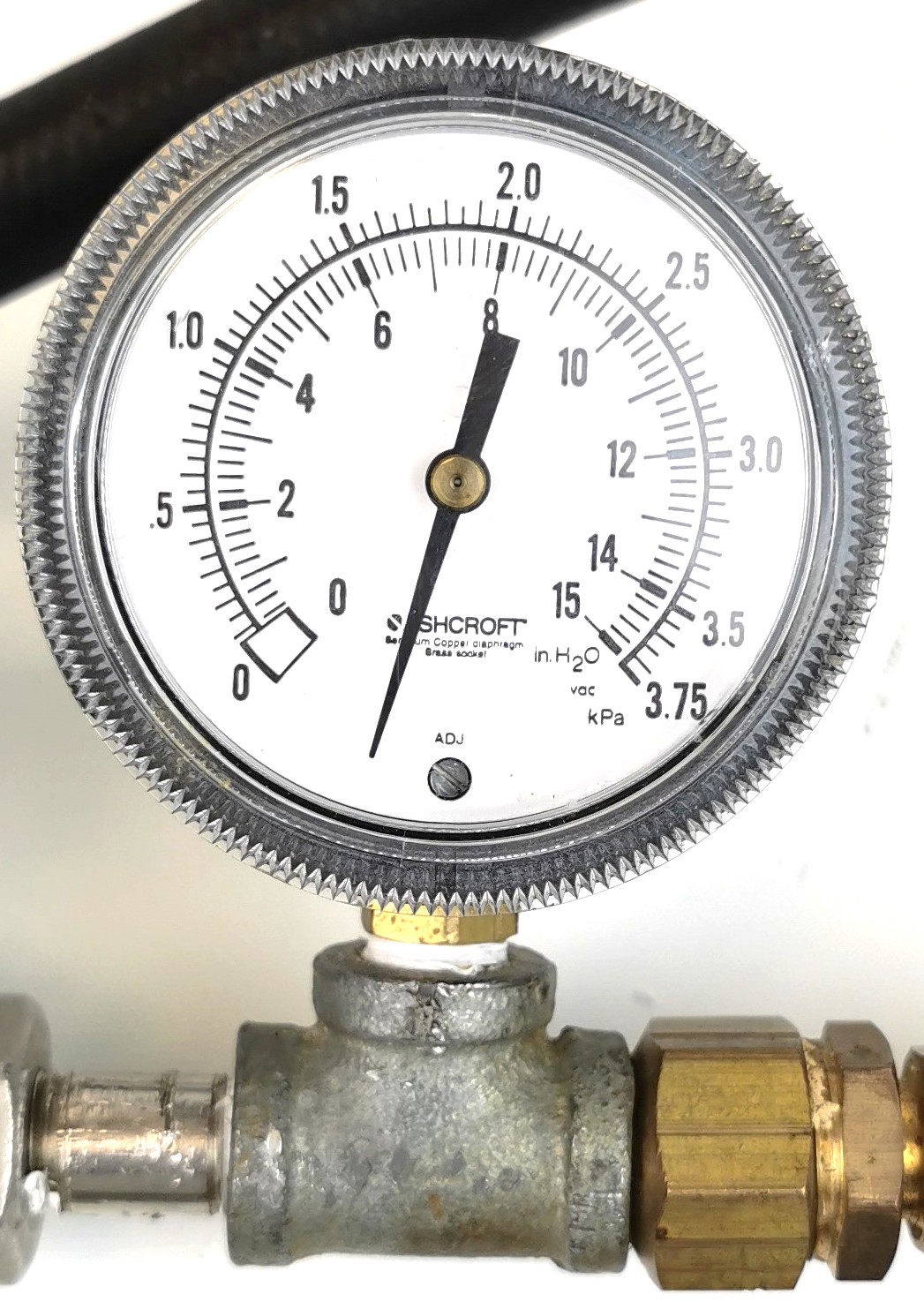

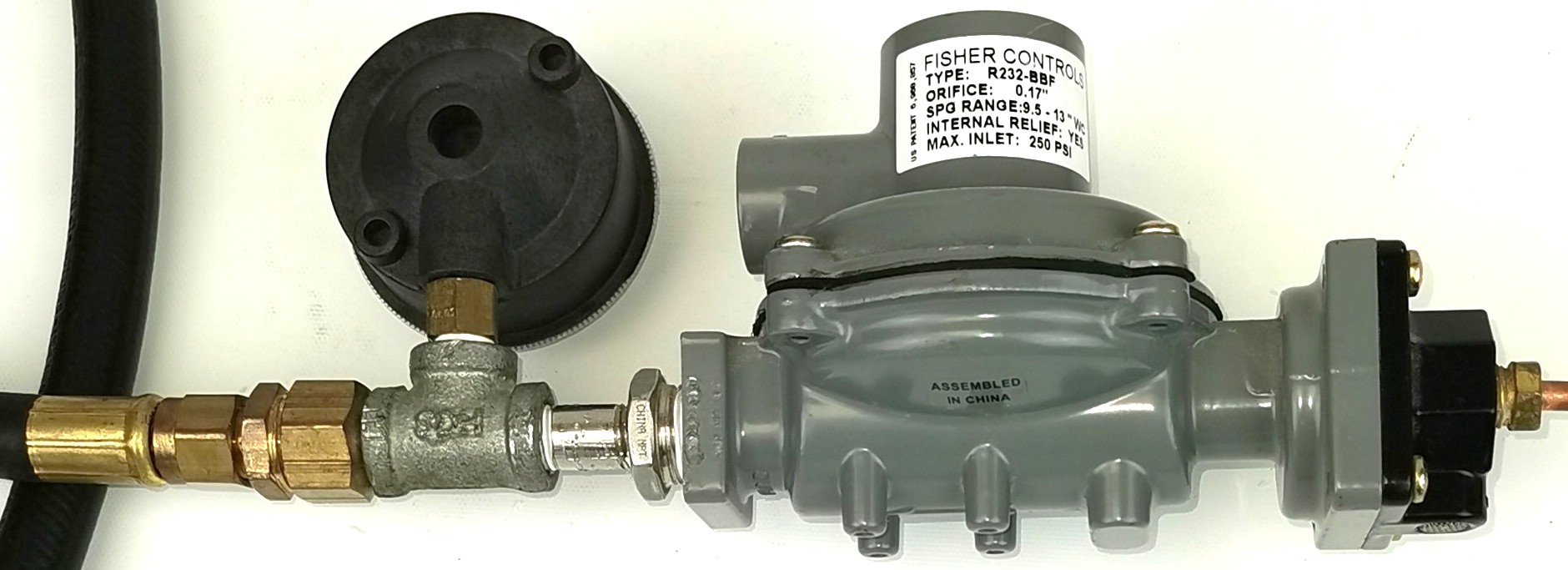

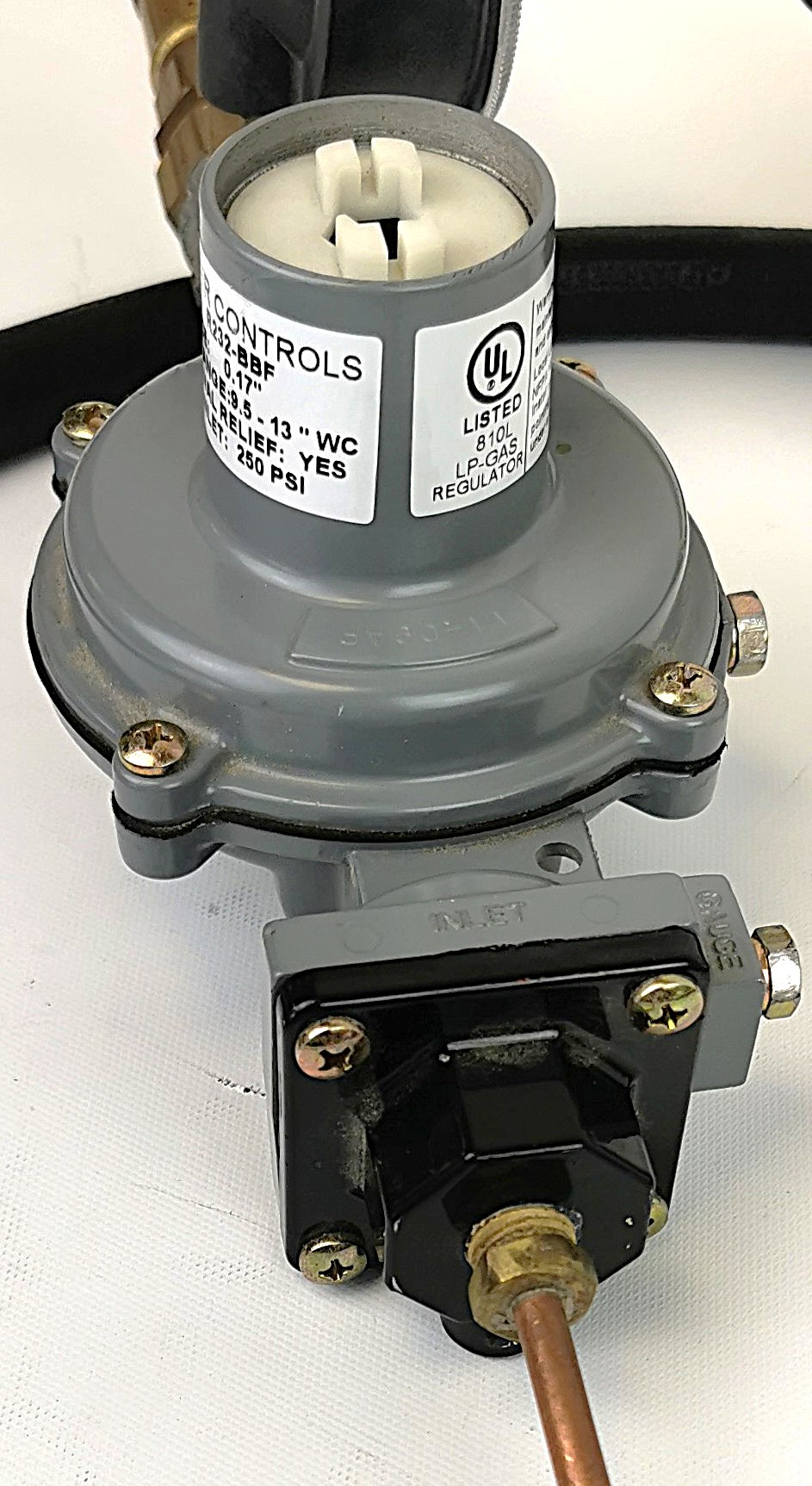

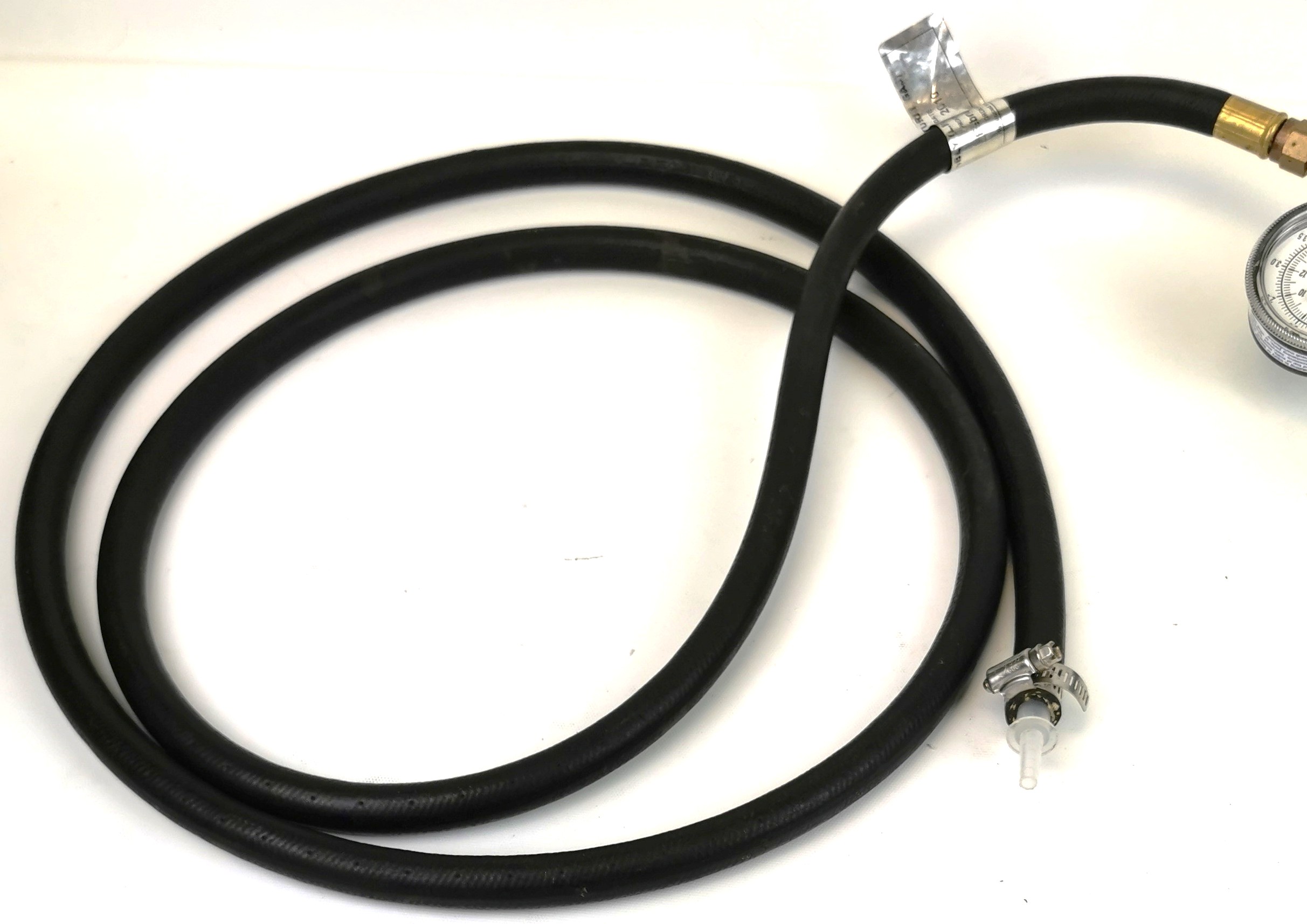

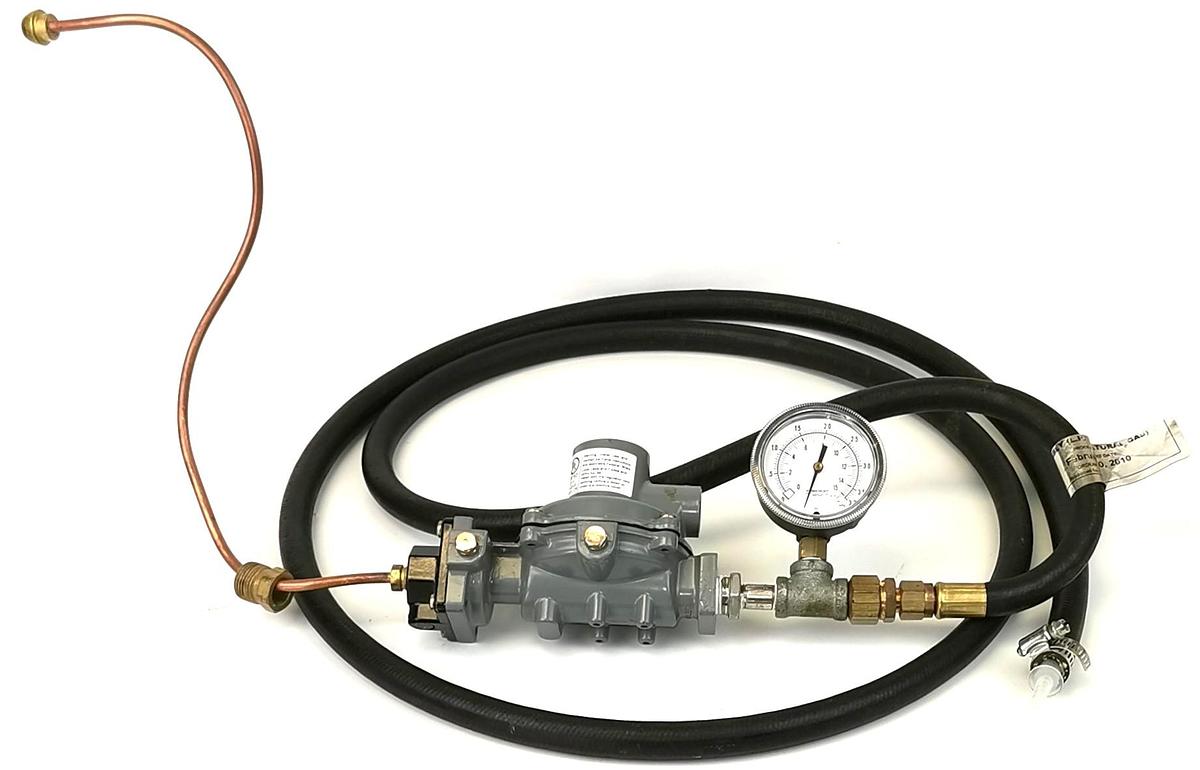

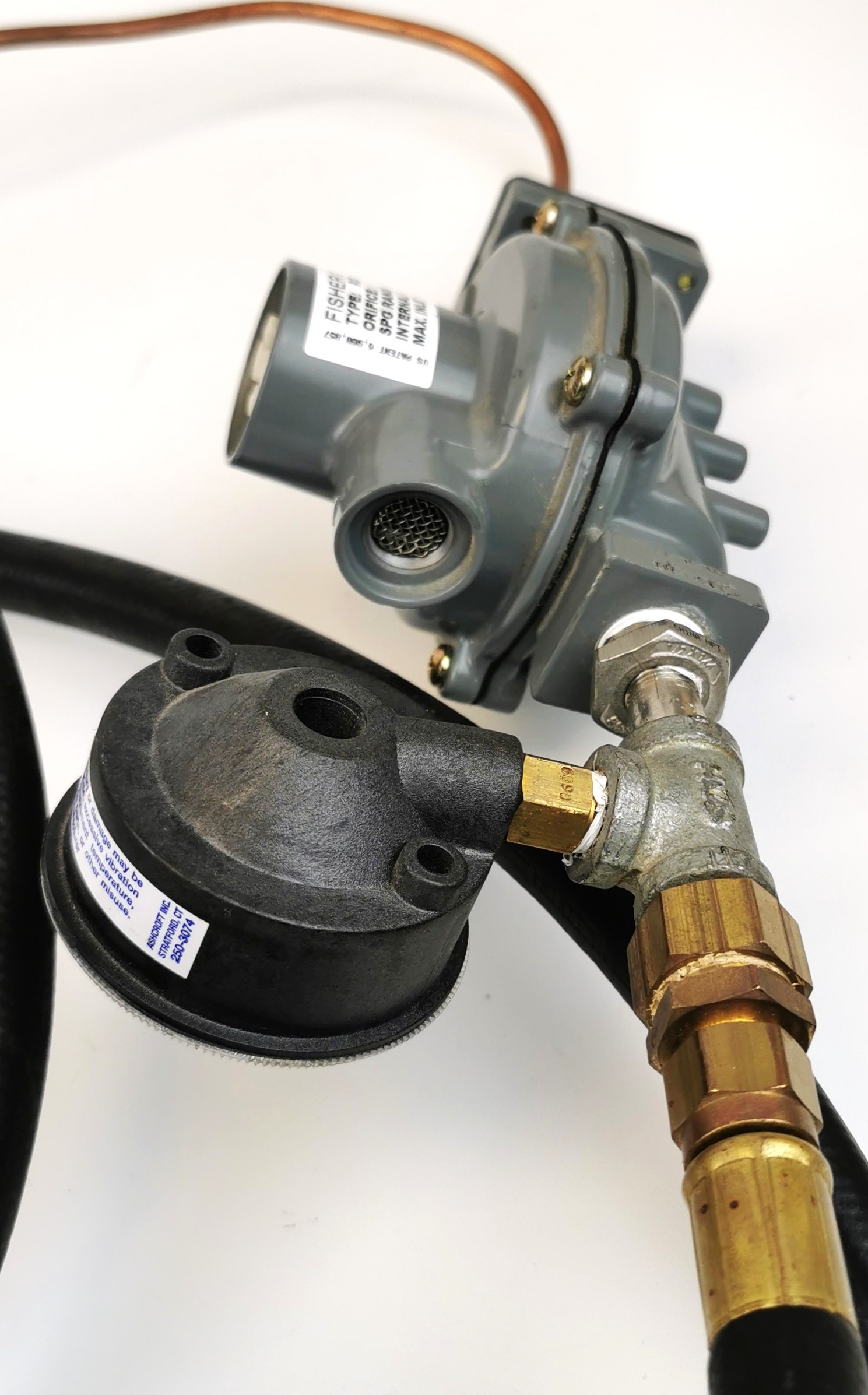

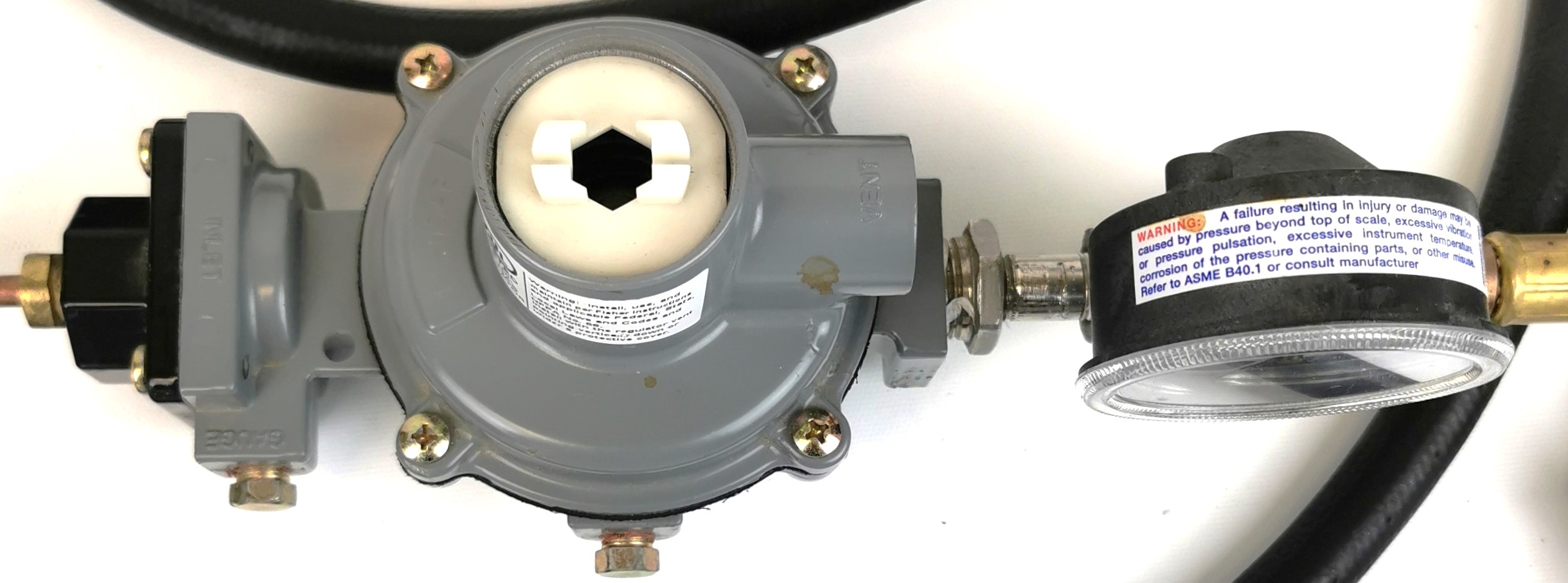

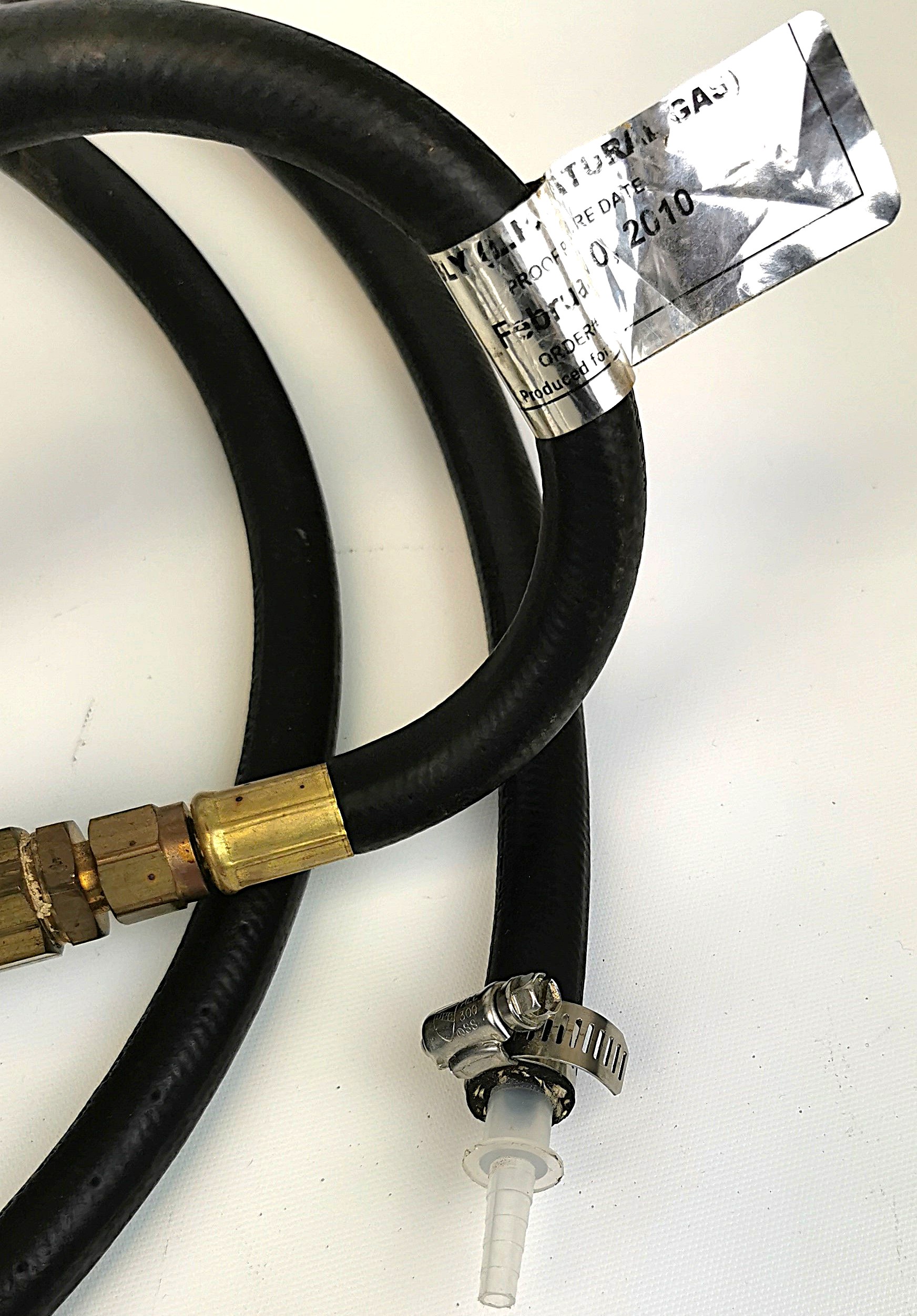

This Fisher Controls R232-BBF LP-gas regulator comes as seen in photos. The 1.7 ft copper pigtail line is designed to screw directly into a high-pressure propane cylinder/tank valve. This feeds gas into the Overpressure Shut-Off (OPSO) valve mechanism mounted on the left side of the regulator body. The low-pressure gas leaves the regulator on the right, passing by the pressure gauge (used to monitor system/appliance pressure) and flowing directly into the flexible 8.8 ft delivery hose that connects to an appliance.

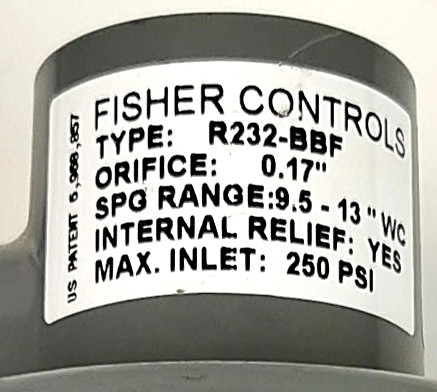

The Fisher Controls R232-BBF is a highly efficient, high-capacity integral two-stage LP-gas regulator designed for domestic and light commercial propane systems. Engineered by Emerson-Fisher, this single-unit regulator combines a non-adjustable first-stage regulator and an adjustable second-stage regulator into one compact body. By dropping tank pressure down to a usable appliance pressure in a single piece of equipment, it drastically reduces installation footprint, piping joints, and labor costs.

Equipped with a large fabric-reinforced diaphragm and robust internal relief mechanisms, the R232-BBF ensures precise pressure regulation and maximum overpressure protection even in harsh winter conditions.

Specifications:

Regulator Type: Integral Two-Stage (Twin Stage)

Fuel Type: Propane / Liquefied Petroleum Gas (LP-Gas)

Flow Capacity: 550,000 BTU/hr

Inlet Connection: 1/4-inch Female NPT (FNPT)

Outlet Connection: 1/2-inch Female NPT (FNPT)

Maximum Inlet Pressure: 250 psig / 17.2 bar

Nominal Outlet Pressure: 11 inches water column (w.c.) / 27 mbar

Outlet Adjustment Range: 10.2 to 13.0 inches w.c.

Vent Size & Orientation: 3/4-inch NPT screen-protected vent, standard downward orientation

Certifications: UL Listed

Applications & Features:

Compact Installations: Ideal for residential homes, cottages, and commercial installations with low-to-medium BTU demands where space next to the dome or building is restricted.

Superior Regulation: Dual-stage technology eliminates seasonal fluctuations in appliance pressure, ensuring steady heat output and preventing appliance flame-out.

Corrosion Resistance: Built with a rugged, corrosion-resistant casing and stainless steel internal linkages to withstand demanding outdoor elements.

Built-In Diagnostics: Features 1/8-inch NPT pressure gauge taps on both the intermediate and outlet stages for easy system pressure checks during routine maintenance.

** SEE LINK TO LITERATURE FOR MORE INFORMATION
